Common Eaton 9PX UPS Faults and How to Resolve Them

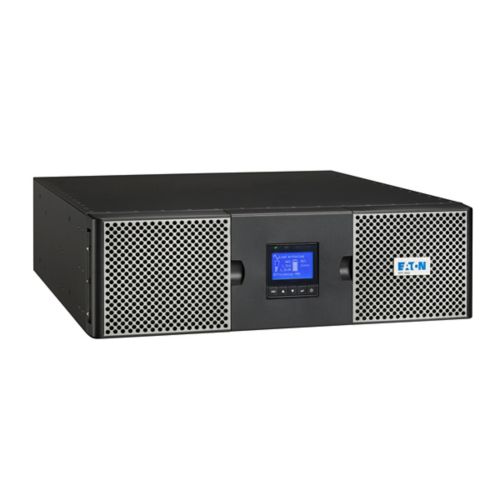

The Eaton 9PX is one of the most widely deployed single-phase rack and tower UPS systems in Australia, and for good reason - it is reliable, energy-efficient, and built around Eaton's proven online double-conversion architecture. But even the best UPS generates alarms and faults over time, and knowing what each one means is the difference between a five-minute fix and an unnecessary service call.
This guide covers the most common faults seen on the Eaton 9PX range (1-3kVA, 5-6kVA, and 9PX Gen2), how to read the front panel indicators, and what steps to take before escalating to a technician.
Reading the Eaton 9PX Front Panel
Before diving into specific faults, it helps to understand what the front panel LED indicators mean. The 9PX uses three status LEDs alongside the LCD display:
When the red LED is on, press any button on the front panel to wake the display and navigate to the active alarm. You can also review historical faults by going to Menu > Fault Log > Fault List on the LCD.
Eaton 9PX Fault Code Reference Table
Use this table as a quick reference when your Eaton 9PX displays an alarm or fault on the LCD. These are the exact alarm names as they appear on the front panel display across the 9PX 1-3kVA, 5-6kVA, and Gen2 ranges.
How to retrieve fault history on your Eaton 9PX:
-
Press any button on the front panel to activate the menu
-
Navigate to Menu > Event Log > Event List for all alarms and events
-
Navigate to Menu > Fault Log > Fault List for faults only
-
Use Reset Fault List to clear resolved faults after the underlying cause is corrected
Note: Clearing a fault from the log does not resolve the underlying issue. Always identify and correct the root cause before resetting.
Fault 1: Battery Fault
What it looks like: Red LED active, LCD displays "Battery Fault" or "Bat Fault". The UPS may also display "No Battery" or "Charger Failure".
What it means: The UPS has detected a problem with the internal battery - this may be a failed battery, a loose battery connector, a battery that has reached end of service life, or a charger circuit fault.
What to check first:
-
Open the battery access panel and verify the battery connector is firmly seated. A partially disconnected battery plug is a common cause of a No Battery alarm after a battery was recently replaced or the unit was moved.
-
Check the battery voltage on the LCD under Menu > Measurements > Battery. A reading significantly below nominal (48V for a 1500VA unit, 72V for a 3000VA unit) indicates a depleted or failed battery.
-
Check when the battery was last replaced. VRLA batteries in the 9PX typically last 3-5 years. If the unit is older than 3 years and the battery has never been replaced, end of life is the most likely cause.
-
If the unit shows "Charger Failure", this may indicate a fault with the charging circuit rather than the battery itself - this requires a technician.
Resolution: If the battery connector is secure and the battery voltage is low or the unit is over 3 years old, a battery replacement is the first step. Genuine Eaton replacement battery cartridges are available for all 9PX models. For a guide on when to replace your UPS battery, see our article on how often UPS batteries should be replaced. For signs to look for before a complete failure, see our guide on signs your UPS battery is failing.
Fault 2: Bypass Mode (Unplanned)
What it looks like: Orange LED illuminated, LCD displays "Bypass Mode". Audible alarm may be active.
What it means: The UPS has transferred the connected load to raw mains power. In bypass mode, the load is powered but no longer protected by the UPS - a power outage now means equipment shuts down immediately.
The UPS transfers to bypass automatically when:
-
An overload condition is detected (load exceeds UPS capacity)
-
An internal fault or overtemperature condition occurs
-
Three unplanned bypass transfers occur within a 20-minute window (the UPS locks in bypass as a safety measure)
What to check:
-
If the transfer was unexpected, check the load percentage on the LCD under Menu > Measurements > Load. If load is above 100%, an overload is the cause.
-
If load is normal, check for an active fault on the LCD - an internal fault has likely triggered the bypass transfer.
-
If the UPS is locked in bypass after multiple transfers (three within 20 minutes), it will remain in bypass until manually reset. Navigate to Menu > Control > Go Back Normal to attempt a return to online mode.
Important: Never leave the UPS in bypass mode for extended periods. Equipment is unprotected and a mains power event will cause an immediate outage.
Fault 3: Overload
What it looks like: Red LED active, LCD displays "Overload" or "Overload Pre-Alarm". Audible alarm active.
What it means: The total power draw of connected equipment exceeds the UPS rated capacity. The pre-alarm triggers at a configurable threshold (default 102% of rated load). A sustained overload triggers bypass transfer and, if severe enough, automatic shutdown.
9PX overload response by severity:
What to check:
-
Check the load percentage on the LCD. Identify what is connected and whether anything unusual has been added recently.
-
Disconnect non-critical loads to bring the load below 80% of rated capacity.
-
If load is consistently above 80%, the UPS is undersized for the current load - consider upgrading to a higher capacity unit or adding an additional UPS for the excess load.
Fault 4: Overtemperature
What it looks like: Red LED active, LCD displays "Overtemperature" or "Ambient Temp" alarm.
What it means: The internal temperature of the UPS, or the ambient temperature sensor (if enabled), has exceeded a safe threshold. The 9PX is rated for operation between 0 and 40 degrees Celsius. Sustained high temperatures significantly shorten battery service life - every 8-10 degrees above 25 degrees Celsius can halve the expected battery life.
What to check:
-
Check the airflow around the UPS. The 9PX requires clear ventilation on both sides and at the rear. In a rack, ensure the rack has adequate cooling and is not recirculating hot air from other equipment.
-
Check the ambient room temperature. A server room without adequate CRAC cooling will cause UPS overtemperature faults, especially in Australian summer conditions.
-
Check that the UPS air intake vents are not blocked by dust accumulation. Clean vents with compressed air if necessary.
-
If the ambient temperature is within range but the UPS is still showing an overtemperature fault, an internal fan fault or cooling circuit issue may be the cause.
For more on how temperature affects UPS battery life and the case for integrated UPS and CRAC cooling design, see our guide on why high temperature UPS systems are critical for industrial infrastructure.
Fault 5: Fan Lock
What it looks like: Red LED active, LCD displays "Fan Lock" or "Fan Fault".
What it means: One or more of the internal cooling fans have stopped or are running below the expected speed. Without adequate internal airflow, the UPS will overheat. The 9PX will generate an alarm and, if temperatures continue to rise, may transfer to bypass or shut down.
What to check:
-
Listen for the fans when the UPS is running. On a 9PX under normal load, the fans should be audible (particularly under heavy load). Silence may indicate a fan has stopped.
-
A fan fault almost always requires a service call to inspect and replace the fan module. This is not a user-serviceable repair on most 9PX configurations.
Fault 6: Site Wiring Fault
What it looks like: The UPS displays "Site Wiring Fault" during startup and refuses to start normally.
What it means: The 9PX detects that the phase and neutral wires at the input connection are swapped (reversed). This is a wiring fault at the socket or distribution board - not a UPS fault.
What to check:
-
Do not attempt to swap wiring yourself. This must be investigated and corrected by a licensed electrician.
-
The site wiring fault detection can be disabled in the UPS settings, but this is not recommended - it exists to protect both the equipment and the technicians working on it.
When to Call a Technician
The faults above can often be diagnosed and partially resolved by a knowledgeable IT or facilities operator. However, the following situations always require a qualified service technician:
-
Internal fault alarms that do not clear after a restart
-
Fan lock or cooling system faults
-
Charger failure alarms
-
A UPS that repeatedly transfers to bypass without an obvious cause
-
Any work involving opening the UPS electronics beyond the battery access panel
-
Site wiring faults (must be a licensed electrician)
Indigi Power & Cooling provides UPS maintenance and servicing for Eaton 9PX systems across Brisbane, Sydney, Melbourne, and regional Australia. Our technicians carry genuine Eaton replacement parts and can perform on-site fault diagnosis, battery replacement, and full preventative maintenance. If your Eaton 9PX is showing a fault you cannot resolve, contact us or call 1800 046 344.
Get Your Eaton 9PX Serviced by a Specialist
A fault alarm on your Eaton 9PX is your UPS telling you it needs attention. Ignoring it risks equipment damage, unexpected downtime, and a battery that fails at exactly the wrong moment.
Indigi Power & Cooling is an Eaton-experienced UPS service provider based in Brisbane, servicing organisations across Queensland, New South Wales, Victoria, and regional Australia. Our licensed technicians carry genuine Eaton replacement battery cartridges and parts for the full 9PX range - from the 750VA tower through to the 11kVA Gen2 - and can be on site for routine maintenance or urgent fault response.
Eaton 9PX Battery Replacement
VRLA batteries in the Eaton 9PX typically last 3-5 years depending on ambient temperature and discharge history. Australian summer conditions accelerate degradation, and a battery that tests fine in winter can fail under load during a summer storm. We supply and install genuine Eaton replacement battery cartridges (RBCs) for the full 9PX range, with on-site swap completed in under 30 minutes on most models.
Eaton 9PX Preventative Maintenance
A structured annual maintenance visit covers battery impedance testing, full load transfer test, thermal imaging of internal connections, firmware version check, fault log review and clearance, and a written service report. Catching a degraded battery or a loose connection before it becomes a failure is the entire point of maintenance.
