Evikon E2218 Humidity and Temperature Transmitter

Industrial Humidity and Temperature Monitoring for Data Centres, Server Rooms and HVAC Applications

The Evikon E2218 is an industrial-grade humidity and temperature transmitter designed for accurate, continuous measurement of relative humidity, absolute humidity, temperature, and dew point in air and non-aggressive gas environments. Part of the Evikon PluraSens family, it features two freely configurable analog outputs, RS485 Modbus RTU digital interface, and IP65 protection, making it suitable for direct integration with BMS, SCADA, and building automation systems in data centres, precision cooling environments, and commercial HVAC plant rooms.

Supplied by Indigi Power & Cooling across Australia.

Applications

• Data centres and server rooms (temperature and humidity compliance monitoring)

• CRAC and CRAH precision cooling environments

• UPS and battery rooms (humidity monitoring for equipment protection)

• Commercial and industrial HVAC plant rooms

• Cold storage and controlled environment facilities

• Building automation and energy management systems

Why Humidity and Temperature Monitoring Matters in Data Centres

ASHRAE recommends maintaining server room intake temperature between 18 and 27 degrees C, with relative humidity between 20 and 80% for most IT equipment classes. Humidity that falls too low creates electrostatic discharge risk. Humidity that rises too high risks condensation on equipment and corrosion over time. Temperature excursions directly degrade UPS battery performance, reduce CRAC cooling efficiency, and shorten the service life of IT equipment.

The E2218 provides continuous, accurate measurement with resolution down to 0.01% RH and 0.01 degrees C, giving facilities management teams the real-time visibility needed to maintain conditions within specification. With RS485 Modbus RTU and analog 4-20 mA or 0-10 V outputs, it integrates directly with any modern BMS platform for logging, alarming, and automated HVAC response.

Technical Specifications

Key Features

• Measures relative humidity, absolute humidity, temperature, and dew point simultaneously

• Resolution of 0.01 %RH and 0.01 degrees C for precise environmental monitoring

• Two independently programmable analog outputs — 4-20 mA or 0-10 V, freely scalable within measurement range

• RS485 Modbus RTU for direct integration with BMS, SCADA, and building automation platforms

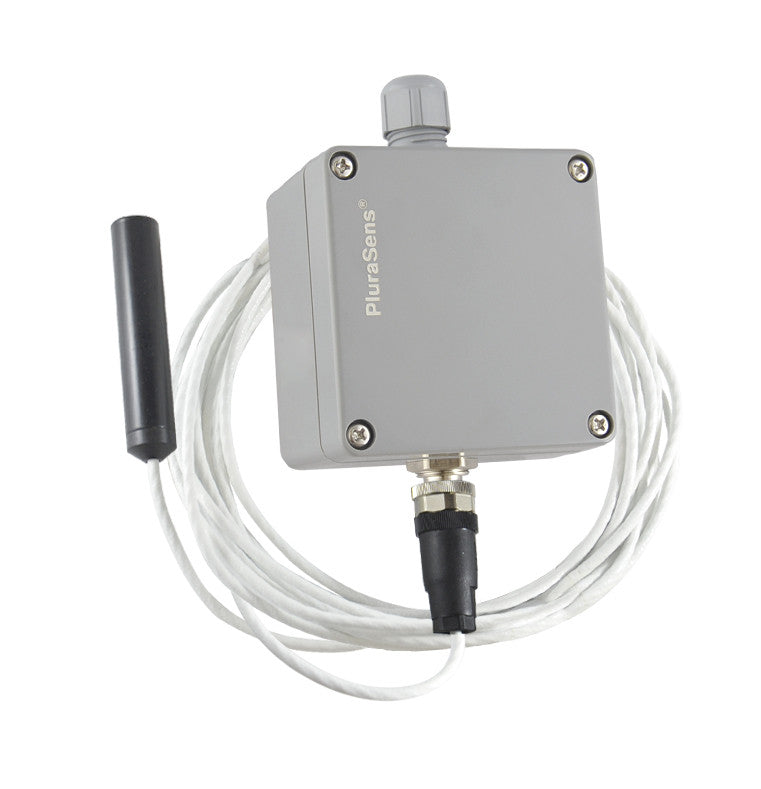

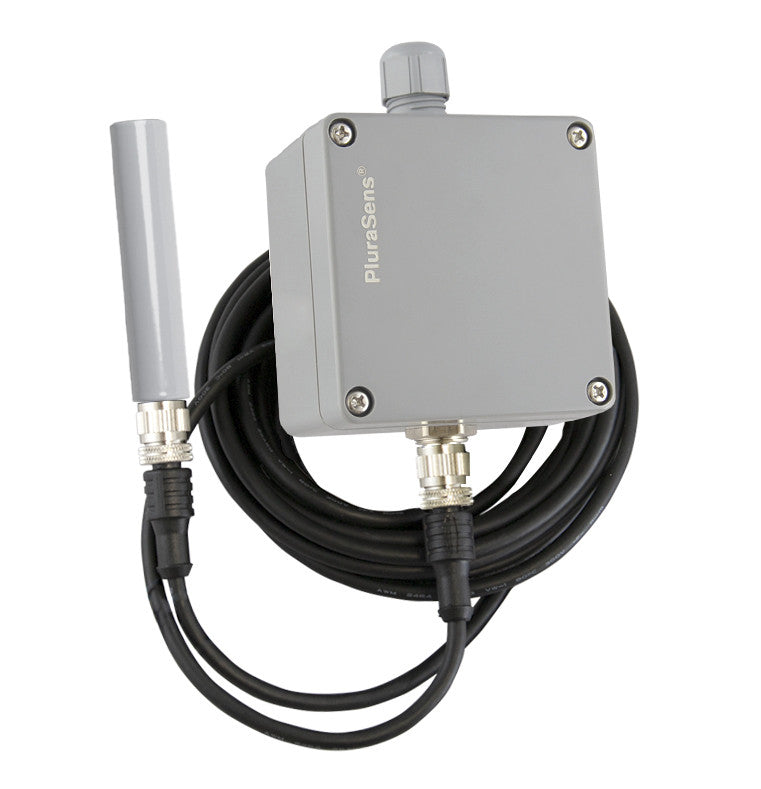

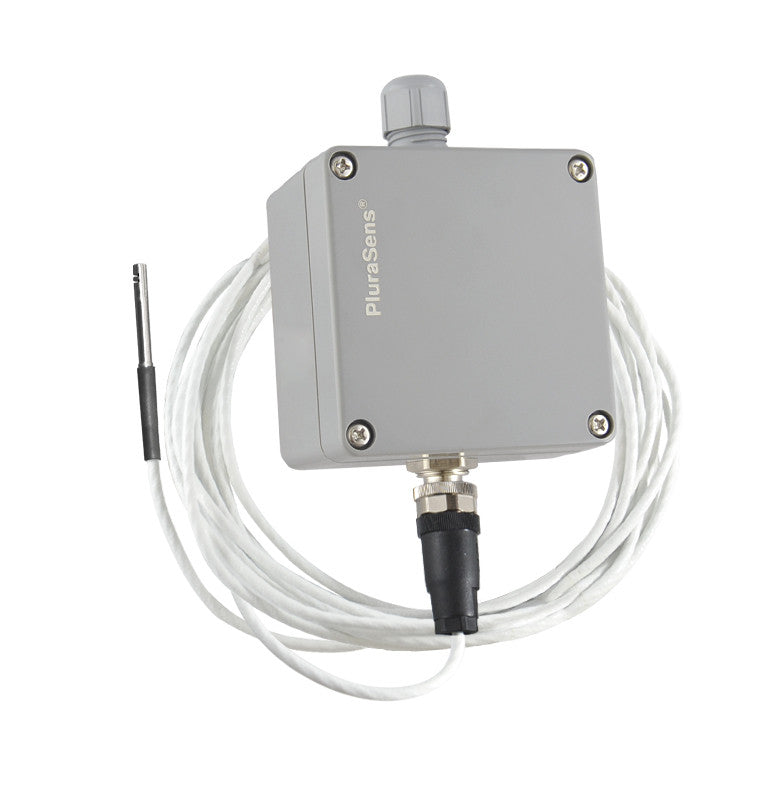

• Attached or remote probe options for flexible installation in confined or hard-to-access locations

• IP65 rated industrial enclosure for plant room and controlled environment applications

• Wide power supply compatibility: 12 to 36 VDC standard, 24 VAC option

• High accuracy variant available on request (plus or minus 1.8 %RH)

• Operating range down to -40 degrees C for cold environment installations

Documents

• E2218 Technical Datasheet (PDF)

• E2218 User Manual (PDF)

• CE Declaration of Conformity (PDF)

Supply by Indigi Power & Cooling

Indigi Power & Cooling supplies Evikon MCI sensors and transmitters across Queensland, New South Wales, Victoria, and Papua New Guinea. The E2218 is suited to data centre and server room environmental monitoring programmes, CRAC cooling system integration, and BMS humidity and temperature sensing for critical infrastructure facilities.
