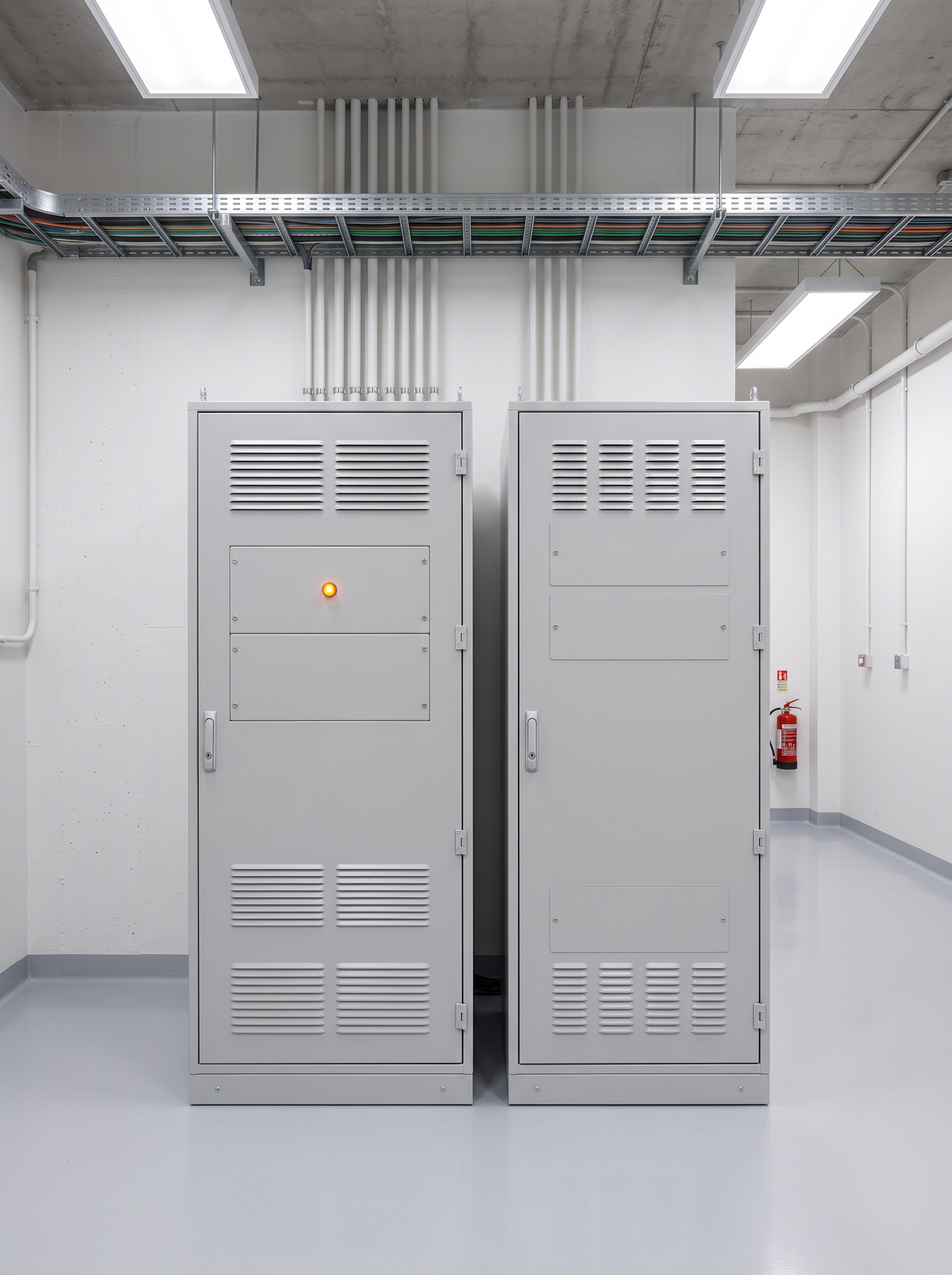

Hospital UPS Systems, Medical Grade Power and Precision Cooling for Australian Healthcare

Healthcare is the one sector where the consequence of a power event is not measured in lost revenue. It is measured in an aborted CT exposure that has to be repeated, a theatre list that runs late, an analyser that loses its calibration mid-run, or a fridge full of vaccines that has to be quarantined and reported. The engineering is not exotic. What makes it different is that the electrical installation in a patient care area is itself part of the safety system, and a UPS dropped into that installation without understanding it can quietly make things worse.

Most power protection suppliers selling into Australian healthcare talk about reliability and redundancy without ever naming the standard that governs the space they are selling into. We take the opposite approach. If a UPS is going into a cardiac-protected area, the first question is not how many kVA. It is where the unit sits relative to the isolation transformer, what its earth leakage current is, and whether that leakage will push the line isolation monitor into alarm the day it is commissioned.

Indigi Power and Cooling is an Indigenous and Veteran owned critical power and cooling specialist, registered with Supply Nation and ICN Gateway. We cover both halves of the problem, because a hospital needs both: uninterruptible power for clinical equipment and cold chain, and precision cooling for imaging equipment rooms, pathology sample storage and the hospital's own server and comms rooms.

Healthcare areas, classifications and what each one actually needs

Before specifying anything, establish which class of area you are working in. Under AS/NZS 3003 the classification is driven by what can be connected to the patient, not by the name on the door. A consulting room can be a body-protected area. A cardiac catheter lab is always a cardiac-protected area. The protection method follows from that, and the UPS design has to fit around it rather than the other way round.

AS/NZS 3003 and where the UPS is allowed to sit

AS/NZS 3003 covers electrical installations in patient areas. It exists because the ordinary protection you rely on everywhere else, an earth fault causing enough current to trip a breaker, is not adequate when a patient is connected to equipment. The current that matters is orders of magnitude smaller than anything a normal circuit breaker will ever see. The standard sorts patient areas into two classes and applies a different protection philosophy to each.

Body-protected areas

A body-protected electrical area is one where the patient may be connected to electromedical equipment that makes conductive contact with the body surface. Think general wards, consulting rooms, day surgery, most imaging scan rooms and dental surgeries. Protection is achieved through equipotential earthing, meaning every exposed conductive part and extraneous conductive part in the patient environment is bonded back to a common equipotential earth point so no meaningful potential difference can appear across the patient, combined with residual current protection on the socket outlet circuits.

Cardiac-protected areas and line isolation monitoring

A cardiac-protected electrical area is one where a conductive path can reach the patient's heart directly, through an intracardiac catheter, a pacing lead or a pressure line filled with conductive fluid. Cardiac catheter labs, many operating theatres and coronary care units fall into this class. Here the leakage current that matters is very small indeed, and disconnecting the supply is itself a hazard, because a breaker that opens during a procedure creates a clinical emergency of its own.

The resolution is an isolated supply. A medical isolation transformer, single-phase and typically not exceeding 10 kVA, creates a supply with no deliberate connection to earth. A first earth fault on such a system does not create a fault current path and does not disconnect anything. Instead a line isolation monitor continuously measures the insulation resistance and the total hazard current of the isolated system, and raises an audible and visual alarm when it degrades, commonly at a threshold in the order of 5 mA. The theatre keeps running. Engineering staff attend, find the faulty appliance, and remove it between cases. That is the entire design intent, and it is why you cannot simply substitute an RCD in a cardiac-protected area.

The mistake to avoid: earth leakage from the UPS

This is the failure we are called to fix most often, and it is almost never mentioned by suppliers selling healthcare UPS. Every UPS with an EMC input filter has capacitors between line and earth, and those capacitors produce a continuous earth leakage current. On a normal commercial circuit nobody notices. On a patient area circuit protected by a sensitive residual current device, or on an isolated system watched by a line isolation monitor, that leakage is a real and measurable contribution.

Two consequences follow. First, a UPS installed downstream of a medical isolation transformer will add hazard current to the isolated system and can put the line isolation monitor into permanent nuisance alarm, at which point staff learn to ignore the alarm, which defeats the safety function entirely. Second, several UPS units sharing an RCD-protected patient area circuit can cumulatively trip it. The correct answer in almost every case is to place the UPS upstream of the isolation transformer, so the transformer still defines the isolated system boundary, and to declare the UPS earth leakage figure at design stage rather than discovering it at commissioning. Where a UPS genuinely must sit inside a patient area, it needs to be a unit specified for that duty with a declared leakage figure and, where required, its own isolation transformer.

All of this sits on top of the ordinary rules. Wiring is carried out to AS/NZS 3000, hospital emergency and essential supplies are designed to AS/NZS 3009, and patient area installations are verified and periodically retested to AS/NZS 3003. Our electrical work is licensed, and refrigerant work on cooling plant is carried out under ARCtick licensing as required by the Ozone Protection and Synthetic Greenhouse Gas Management Regulations.

Why zero transfer time matters for imaging and theatre equipment

A line-interactive or standby UPS has a transfer time. When the mains fails, the unit detects the event and switches the load onto its inverter, and there is a break in supply while that happens, typically a few milliseconds. Vendors describe this as short enough not to matter. In an office it is not enough to matter. In imaging and theatre it can be.

An online double-conversion UPS has no transfer time at all. The load is permanently supplied from the inverter, with the rectifier feeding it from the mains and the battery ready behind it. When mains disappears the inverter simply keeps running from the battery. There is no switching event and no output disturbance, and the load is also isolated from mains voltage variation, harmonics and transients as a matter of course. In healthcare there are four reasons this is the right answer.

• Aborted exposures cost patient dose. A CT or digital radiography exposure interrupted mid-acquisition produces an unusable image. The study is repeated, and the patient receives the radiation twice. That is a clinical harm, not an inconvenience.
• Long acquisitions do not tolerate restarts. An MRI sequence can run for several minutes. A power disturbance that resets a gradient amplifier or a host workstation ends the sequence, and in a busy department that lost slot cascades through the day's list.
• Reconstruction and archive integrity. Losing a workstation part way through a reconstruction or a PACS transfer risks a corrupted study rather than a missing one, which is the harder problem to detect.
• Power quality, not just outages. Most of what damages medical electronics is not a blackout. It is the sag when the chiller starts, the transient when the generator transfers back to mains, and the harmonic distortion from variable speed drives elsewhere in the building. Double conversion removes all of it continuously.

Sizing matters as much as topology. Imaging systems draw very unevenly. An X-ray generator can pull a large short-duration peak during exposure against a modest standing load, and a UPS sized on average consumption will go to bypass exactly when the machine is doing the thing you bought it for. We size against the OEM site planning figures for peak and momentary demand, and we measure the installed load where the equipment is already in service. The same discipline applies to the generator behind the UPS, which typically needs to accept the essential load block within 10 to 15 seconds of a mains failure.

Vaccine cold chain: what the guidelines actually require

The National Vaccine Storage Guidelines, published by the Australian Government and known throughout the sector as Strive for 5, require vaccines to be stored between 2 and 8 degrees Celsius in a purpose-built vaccine refrigerator, with continuous temperature monitoring and twice-daily minimum and maximum readings recorded. Storage outside that band is a cold chain breach. When a breach occurs the affected stock must be isolated immediately, marked so it cannot be used, and the incident reported to your state or territory Public Health Unit or immunisation program. The stock is not discarded until you are told to discard it, because the health department makes the viability call, not the practice.

The commercial consequence is straightforward. A single general practice fridge can hold tens of thousands of dollars of publicly funded vaccine, and a breach costs the stock, the staff time to report and reconcile it, and the recall of patients who may need revaccination. Against that, a properly specified UPS is inexpensive insurance. There are three technical points that decide whether it works.

Pure sine wave output is not optional

A vaccine refrigerator is driven by a compressor motor and, in modern purpose-built units, an electronic controller. A modified or simulated sine wave UPS, which is what most inexpensive consumer units produce on battery, delivers a stepped approximation of a sine wave. Compressor motors run hotter on it, draw more current for the same work and can stall or buzz audibly, and electronic controllers can misread the waveform and behave erratically. Over repeated outages that shortens compressor life and, worse, can leave the fridge apparently powered but not actually cooling. Specify a pure sine wave unit, which in practice means online double-conversion or a line-interactive unit that explicitly states pure sine wave output on battery.

Size above the compressor inrush, not the nameplate

A compressor motor draws a large starting current for a fraction of a second, several times its running current, every time it cycles on. A UPS sized exactly to the fridge's nameplate watts will see that inrush as an overload and either drop to bypass, which on battery means dropping the load entirely, or shut down. Size 20 to 30 per cent above the nameplate watts as a working minimum, and confirm against the fridge manufacturer's stated starting current where the unit is large or where several fridges share one UPS. A typical single purpose-built vaccine fridge sits comfortably behind a 1 kVA online UPS, with external battery packs where you need to ride through more than a short outage.

Circuit discipline and monitoring

The fridge should be on a dedicated circuit and outlet, clearly labelled so nobody switches it off or plugs a kettle into it. Data logging should continue independently of the fridge and of the UPS, so you have an evidentiary temperature record if a breach is ever queried. Fit a UPS that can send an alert, over SNMP or a contact, so an outage that starts on a Friday evening is known about before Monday. Full detail on unit selection and runtime is on our UPS for medical and vaccine fridges page, and the same cold chain logic scales up to clinical trial and wholesale storage on our pharmaceutical sector page.

Precision cooling for imaging, pathology and hospital IT

Healthcare cooling gets treated as a comfort problem far more often than it should be. Three environments in a hospital or imaging practice are process cooling loads with no tolerance for downtime, and they need to be designed and maintained as such.

MRI and CT equipment rooms

The technical room behind a scanner holds the gradient amplifiers, the radio frequency amplifier, the system cabinets and, on MRI, the cold head compressor that keeps the magnet cold. That room runs a continuous heat load whether or not patients are being scanned, and it needs cooling 24 hours a day, 365 days a year. Building air conditioning that shuts down out of hours is not adequate, and neither is a single split system with no redundancy. Temperature and humidity limits are set by the scanner manufacturer's site planning document, commonly in the region of 18 to 22 degrees Celsius with humidity controlled to avoid condensation, and they should be read rather than assumed.

The consequence of getting it wrong on MRI is severe. If the cold head compressor loses power or cooling for long enough, helium boil-off increases and the magnet can quench, venting its helium and going off-field. Recovery means a helium refill, a service ramp-up and days of lost scanning. Cold head compressors and the chilled water or condenser plant serving them belong on the essential supply, and the cooling that serves the equipment room should have redundancy in it. We design, install, commission and maintain that plant, and we service the perimeter and close control units already in place.

Pathology sample storage and analyser rooms

Pathology carries both a heat load and a sample integrity requirement. Analysers reject significant heat into a small room, sample refrigerators and minus 80 freezers reject their condenser heat into the same space, and every one of those units loses capacity as the room ambient rises. A pathology store that drifts up on a hot Brisbane afternoon puts every freezer in the room into a longer duty cycle at exactly the moment its condenser is least effective. Close control cooling with a proper redundancy position, and refrigeration alarms that go somewhere a human will see them, is the correct treatment.

Air handling hygiene under AS/NZS 3666

AS/NZS 3666 governs microbial control in the air handling and water systems of buildings, and it is taken seriously in healthcare for obvious reasons. It sets requirements for the design and installation of air handling systems and for their ongoing operation and maintenance, covering filtration, drainage of condensate, cleanliness of coils and drip trays, and the management of cooling water systems where Legionella risk exists. In practice it means precision cooling units serving imaging and pathology areas need documented, scheduled maintenance with filter changes, coil and tray cleaning and drainage checks recorded, not just a reactive call-out when something alarms. Our CRAC maintenance programme is built around that documentation requirement.

Hospital server, comms and PACS rooms

The hospital's own IT estate is the least glamorous and often the most fragile part of the picture. Electronic medical records, PACS image archives, pathology middleware, nurse call and duress systems and the network that carries them all sit in comms rooms that were frequently never designed as computer rooms. Supply air at the server inlet should sit inside the ASHRAE TC 9.9 recommended envelope of 18 to 27 degrees Celsius, and the room needs cooling that runs independently of the building system and does not stop at 6pm. See our server room cooling and data centre and IT infrastructure pages for how we approach that.

What Indigi does for healthcare clients

Indicative pricing gives you a starting position. Single-phase UPS installation and commissioning starts from $850 up to 3 kVA, $1,250 for 3 to 10 kVA and $1,800 for 10 to 20 kVA, which covers most clinic, vaccine fridge, analyser and imaging modality applications. Three-phase installation starts from $3,200 for small systems and $6,500 for medium systems, which is the range for hospital essential supply and data centre work. UPS maintenance is $720 ex GST for a one-off visit or $1,940 per year ex GST on a standard annual plan. Cooling design and installation runs from $8,000 to $15,000 for small rooms, $25,000 to $45,000 for medium installations and $45,000 to $60,000 plus for large projects. Imaging equipment room and theatre plant work is quoted individually because the redundancy position and the access constraints dominate the cost.

Frequently asked questions

What is an UPS system in a hospital?

A hospital UPS is an uninterruptible power supply that carries clinical and IT load instantly when mains power fails, holding it until the standby generator starts and takes over, typically within 10 to 15 seconds. It also conditions the supply continuously, removing sags, surges, transients and harmonic distortion that would otherwise reach sensitive medical electronics. In an Australian hospital the UPS also has to be positioned so it does not interfere with the AS/NZS 3003 protection arrangement in body-protected and cardiac-protected patient areas, which usually means placing it upstream of any medical isolation transformer.

What does UPS mean in hospital?

UPS stands for uninterruptible power supply. In a hospital context it refers to a battery-backed power system that supplies clinical equipment, imaging modalities, pathology analysers, vaccine and sample refrigeration and hospital IT without any interruption when the mains supply fails. It is distinct from the generator, which handles long outages but takes seconds to start, and distinct from the emergency lighting system. The UPS covers the gap the generator cannot, and it protects against power quality events that never cause a full outage at all.

What are the three types of UPS systems?

The three types are standby, also called offline, which runs the load from mains and switches to the inverter when mains fails; line-interactive, which adds automatic voltage regulation so it can correct sags and surges without going to battery; and online double-conversion, which runs the load permanently from the inverter and therefore has zero transfer time. Healthcare applications should use online double-conversion for imaging, theatre, pathology analysers and hospital IT. Line-interactive with confirmed pure sine wave output on battery is acceptable for a single vaccine fridge or a small clinic server, but online is the safer default.

What are the 4 components of a UPS system?

The four main components are the rectifier, which converts incoming AC to DC and charges the battery; the battery, which stores the energy that carries the load during an outage; the inverter, which converts DC back to clean AC for the load; and the static bypass switch, which transfers the load directly to mains if the UPS is overloaded or faulted. In healthcare installations a fifth element matters just as much: an external maintenance bypass, which lets a technician isolate and service the UPS without ever dropping the load. Retrofitting one into a live hospital later is difficult and expensive.

What's the difference between EPS and UPS?

An emergency power supply is designed to keep life safety systems such as emergency lighting, exit signage, fire detection and smoke control running for an extended period during an emergency, and it may accept a short break in supply while it starts. A UPS is designed to eliminate the break entirely and to condition the supply continuously, with a runtime measured in minutes rather than hours. A hospital normally has all three layers: emergency and essential supplies to AS/NZS 3009, a standby generator behind them, and UPS systems bridging the transfer gap and protecting equipment that cannot tolerate any interruption at all.

What is a medical grade UPS?

A medical grade UPS is a unit built for use with medical electrical equipment, which usually means a built-in isolation transformer, hospital grade plugs and outlets, materials and construction suited to a clinical environment, and importantly a declared and controlled earth leakage current. The declared leakage figure is the part that matters most in Australia, because a standard commercial UPS with a typical EMC input filter can contribute enough leakage to nuisance trip a sensitive residual current device or push a line isolation monitor into alarm in a patient area. Not every healthcare UPS needs to be medical grade. Units serving equipment rooms, comms rooms and plant areas outside the patient environment generally do not.

How much does a hospital UPS system cost?

Cost is driven by capacity, runtime and redundancy rather than by the healthcare label. Installation and commissioning starts from $850 for single-phase systems up to 3 kVA, $1,250 for 3 to 10 kVA and $1,800 for 10 to 20 kVA, which covers clinic, vaccine fridge and single modality applications. Three-phase installation for hospital essential supply and data centre load starts from $3,200 for small systems and $6,500 for medium systems, with the hardware quoted separately. Ongoing maintenance is $720 ex GST for a one-off service or $1,940 per year ex GST on a standard annual plan. Battery replacement is the recurring cost most sites underestimate, so budget for it on a four to five year cycle using our battery replacement cost calculator.
