DX CRAC ServicingDirect Expansion Precision Cooling
Direct answer
A DX, or direct expansion, CRAC unit cools a room by evaporating refrigerant in a coil and rejecting that heat through an outdoor air-cooled condenser. It is self contained: no chiller, no cooling tower, no dependence on central plant. Servicing centres on the refrigerant circuit, measured through superheat and subcooling, and on the condenser, which is outdoors, out of sight, and the single most common reason a DX unit stops holding a room.
Indigi Power and Cooling services DX CRAC systems across Australia from $720 ex GST metro for a one-off inspection with a written report. Refrigerant work is carried out under ARCtick licence. Call 1800 046 344.
Where the capacity goes
Nobody has beenon the roof
On almost every underperforming DX system we are called to, the unit in the room is fine. The problem is thirty metres away and three storeys up, on a condenser nobody has inspected since it was installed.
An air-cooled condenser rejects heat by pulling ambient air across a finned coil. Everything that degrades that process degrades the whole system. A coil furred with dust, pollen or salt. A fan that has failed on a multi-fan condenser, so the unit is running on reduced airflow without any alarm. Something built, parked or planted nearby that now blocks the discharge, or worse, lets hot discharge air recirculate straight back into the intake.
The result is always the same shape. Condensing temperature rises, head pressure climbs, the compressor draws more current for less cooling, and on a hot afternoon the unit trips on high pressure. That trip is usually blamed on the compressor or the refrigerant charge, when the actual fault was a dirty coil that would have taken twenty minutes to wash.
The second thing that goes unmeasured is charge. A DX circuit that loses refrigerant slowly does not announce it. Capacity drops gradually, run times lengthen, and the first hard evidence arrives when the unit can no longer hold the room on the hottest day of the year. Superheat and subcooling measured at each visit catch that trend years before it becomes an outage.
Indigi Power and Cooling is Indigenous and Veteran-owned, Supply Nation and ICN Gateway registered. Our refrigerant work is done under ARCtick licence and every visit ends with a written report of measured values, not a tick sheet.
Why DX at all
Self containedor plant dependent
DX
- Compressor and refrigerant circuit inside the unit
- Outdoor air-cooled condenser, no water anywhere
- Fails alone, so one unit down is not the whole room
- Simplest to install and to retrofit into a building
- No cooling tower, so no Legionella obligation
- Server rooms, comms rooms, telecom shelters, switchrooms
CHW
and CDW
- Depend on a chiller or a condenser water loop
- More efficient at scale, and quieter in the room
- Plant failure affects every unit at once
- Water treatment and, for towers, compliance obligations
- Need pipework, pumps, valves and balancing
- Large data halls, hospital campuses, industrial plant
Diagnostics
What the numbers actually tell you
A DX unit that is running is not a DX unit that is healthy. These are the measurements that go on the report, and what each one means when it moves. The point of taking them every visit is the trend, not the single reading.
| Measurement | What it tells you | What a bad reading usually means |
|---|---|---|
| Superheat | How much the refrigerant has warmed past evaporating point before it reaches the compressor. The core indicator of how the expansion device is metering | High superheat suggests undercharge, a restriction or a starved evaporator. Low superheat risks liquid returning to the compressor, which is how compressors die early |
| Subcooling | How far the liquid refrigerant has cooled below condensing point. Reads the condenser side and the charge together | Low subcooling points at undercharge or a leak. High subcooling points at overcharge or a condenser that cannot reject heat, often a dirty coil |
| Head pressure and condensing temperature | How hard the system is working to push heat out through the condenser | Rising head pressure with no ambient change is the classic dirty condenser signature. Left alone it ends in a high pressure trip on the hottest day |
| Suction pressure | Conditions on the low side, reflecting evaporator load and airflow | Low suction with normal airflow suggests undercharge or restriction. Low suction with poor airflow is usually a filter or coil problem, not a refrigerant one |
| Compressor current draw | Electrical confirmation of what the pressures are implying, trended visit to visit | Creeping current at unchanged load means the system is working harder for the same result. Very often the earliest number to move |
| Supply and return air, delta T | Whether heat is genuinely leaving the room rather than air recirculating around the unit | Low delta T usually means bypass air or fouled coil, not a faulty unit. Worth checking before anyone touches the refrigerant circuit |
| Rack inlet temperature survey | What the equipment actually experiences at top, middle and bottom of the rack face | A wide spread top to bottom is an airflow and containment problem. Adding cooling capacity will not fix it and usually costs money for nothing |
| Leak check and charge record | Whether the circuit is holding its charge between visits | Gradual capacity loss with no obvious fault. Slow leaks are the most under-diagnosed problem on ageing DX plant |
From site

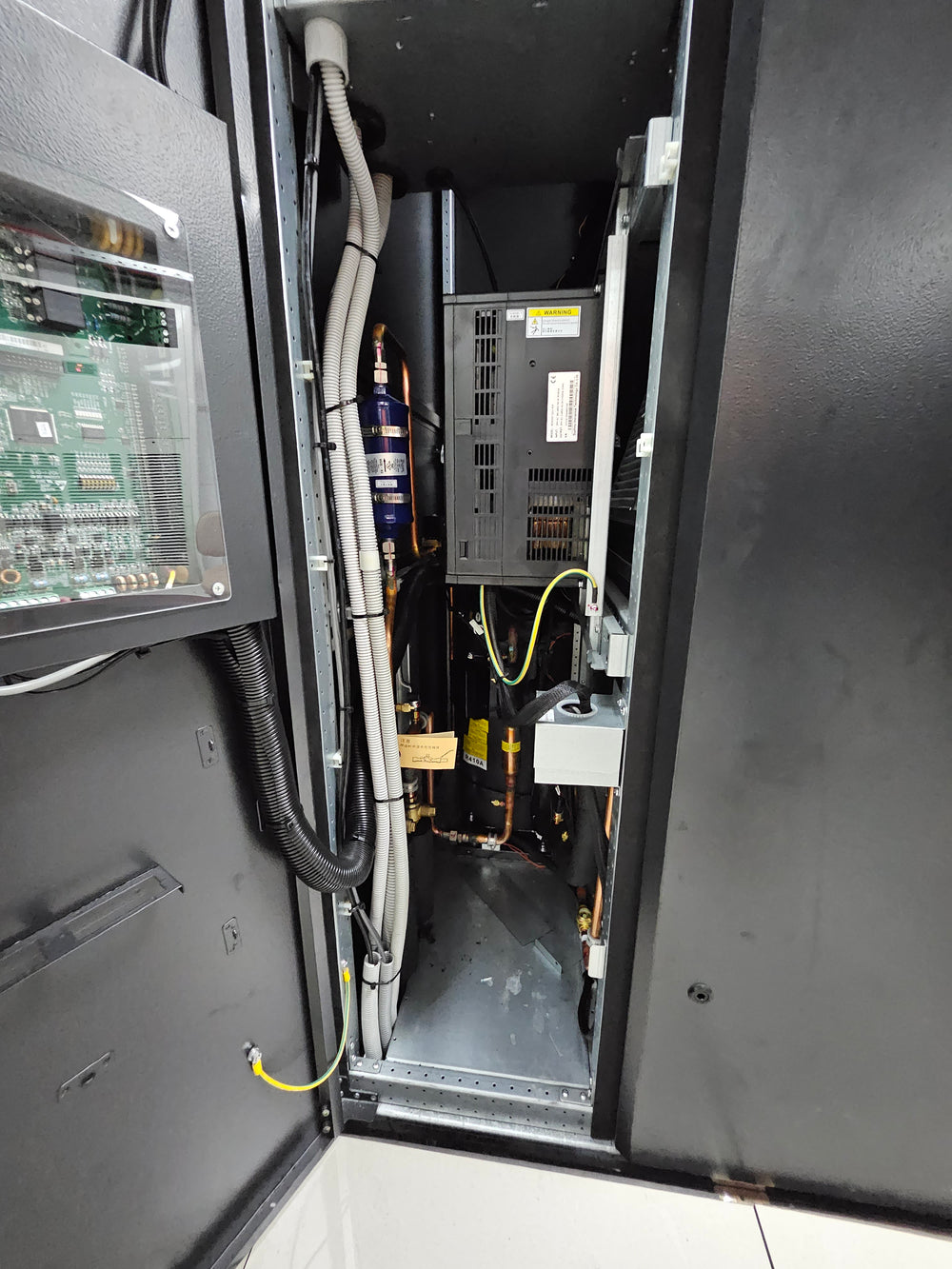

Inside a precision cooling unit with the panel off. Most of a DX service happens here and at the condenser, and very little of it is visible with the covers on, which is why a visual walk past a running unit tells you almost nothing about its condition.
The components that consume the visit are the ones that wear: fans and their bearings, belts where fitted, contactors, capacitors and the filter path. None of them announce themselves before they fail, and all of them are cheap to renew on a planned visit.
The condenser
What goes wrong outdoors
The half of the system nobody sees. Every one of these raises condensing temperature, and every one of them presents inside as a unit that is struggling to hold setpoint.
| Fault | Effect on the system | What we do |
|---|---|---|
| Fouled condenser coil | Dust, pollen, lint and salt block the fins. Heat rejection falls, head pressure rises, and consumption climbs well before capacity visibly drops | Coil washed and combed, condition photographed and recorded. Coastal and industrial sites need this more often than the annual visit allows |
| Failed or failing condenser fan | On a multi-fan condenser one dead fan often raises no alarm at all. The unit simply runs at higher head pressure indefinitely | Every fan checked running, current draw compared across fans, bearings and blade condition inspected |
| Discharge air recirculation | Hot air leaving the condenser is drawn straight back into its intake. The unit is effectively running in a much hotter ambient than the weather suggests | Clearances checked against manufacturer requirements and obstructions identified. Frequently caused by something installed nearby years later |
| Blocked or obstructed airflow path | Screening, plant growth, stored materials or new adjacent structures restricting intake or discharge | Reported with photographs, since the fix is usually a facilities decision rather than a mechanical one |
| Head pressure control not working | Fan speed or staged fan control that has failed leaves the unit running at excessive head in summer, or unable to build head in winter | Control operation verified across the range, sensors checked and setpoints confirmed against the manufacturer specification |
| Corrosion on coastal sites | Salt attacks fins, fasteners and casing. Fin erosion permanently reduces heat transfer area and cannot be cleaned back | Condition assessed and remaining life estimated. Coated coils recommended at replacement time for sites within reach of salt air |
Worth knowing
Refrigerant isgetting harder
Australia is progressively reducing the volume of hydrofluorocarbon refrigerant that can be imported, under the phase-down obligations that sit alongside the Ozone Protection and Synthetic Greenhouse Gas Management framework. The practical effect on a facilities budget is gradual and one directional: high global warming potential refrigerants get scarcer and dearer over time.
For most owners of DX plant that matters in one specific situation. An older unit running R410A or an earlier blend, with a slow leak and an ageing compressor, eventually reaches a point where topping it up is no longer the cheap option it used to be. Newer equipment increasingly uses lower global warming potential alternatives such as R32 and R454B, which changes the repair against replace calculation on plant approaching the end of its life.
We record the refrigerant type and charge at every visit and flag where a unit's refrigerant is likely to become a commercial problem before the unit itself does. That is not a reason to replace working plant early. It is a reason to know which units on your site would be expensive to recharge, so the decision is made in a budget cycle rather than during a failure.
Leak detection matters more than it used to for the same reason. A circuit losing charge slowly is now losing something with a rising price attached, as well as losing you capacity.
The checklist
What a DX service covers
Published in full so you can compare it against what you are paying for now. Ask your incumbent which of these produce a recorded number on the report, because that is the difference between a service and a site visit.
| Service item | Detail |
|---|---|
| System diagnostics and alarm history | Event log downloaded and reviewed, operating mode confirmed, previous recommendations closed out. Intermittent faults that self cleared are the most useful entries |
| Refrigerant circuit measurement | Head and suction pressures, superheat and subcooling, all trended against previous visits. Carried out under ARCtick licence |
| Leak inspection and charge record | Circuit inspected for leaks, refrigerant type and charge recorded and logged as required |
| Condenser inspection and clean | Coil condition, every fan verified running with current draw compared, clearances and recirculation checked, coil washed and condition photographed |
| Evaporator coil and filters | Coil inspected and cleaned, filters replaced as required, airflow measured rather than assumed |
| Compressor performance | Current draw trended, cycling behaviour reviewed, crankcase and oil condition assessed where accessible |
| Fan motors and belts | Motor condition, bearing noise, vibration, belt tension and wear where belts are fitted |
| Condensate management | Drain pan, trap and fall checked, condensate pump operation tested, discharge point verified as clear |
| Humidifier and reheat | Where fitted, humidifier condition, cylinder or electrode state, and reheat element operation checked |
| Electrical inspection | Contactors, capacitors, connections and control wiring, with a thermographic scan of terminations under load on the annual visit |
| Sensor calibration | Temperature and humidity sensors verified and calibrated, setpoints and deadbands confirmed against how the room actually runs |
| Airflow and rack inlet survey | Supply and return temperatures, delta T, and rack inlet temperature at top, middle and bottom of the face |
| Alarm and BMS verification | Alarms tested by forcing the condition, BMS and SNMP integration checked, notification routing confirmed to a person who still works there |
| Written service report | All measured values trended against previous visits, with photographs, defects, recommended parts and priority actions |
Commercial
DX servicing pricing
Australian rates, ex GST, per unit, metro. Multi-unit sites and multi-site fleets are quoted individually, with the per-unit rate falling as unit count increases. Regional and remote sites attract a mobilisation charge.
Full inspection against the checklist above, including the condenser, with a written report. The right starting point where a system has been inherited or its history is unknown.
Scheduled visits with operational testing, calibration, priority fault response and an annual compliance report. Suits server rooms, comms rooms and commercial buildings.
Quarterly or custom scheduling, 24/7 emergency response to an agreed SLA, remote monitoring and predictive parts replacement.
Refrigerant, coil cleaning beyond routine, parts and any condenser access equipment are quoted separately. Compare the full range on our maintenance plans page.
Frequency
Recommendedservice schedule
Layered, because the cheap checks are frequent and the instrumented ones are not.
| Frequency | Who performs | Key activities |
|---|---|---|
| Monthly or bi-monthly | In-house facility team | Air filter inspection, condensate pump checks, alarm monitoring, general operation review |
| Quarterly | Professional service | Refrigerant circuit measurement, condenser inspection, fan and belt checks, humidifier inspection, airflow and cooling performance testing |
| Annually | Professional service | Electrical inspection with thermographic scan, evaporator and condenser coil cleaning, compressor performance testing, full diagnostic review |
Sites in Queensland, the Northern Territory and northern Western Australia should complete the annual comprehensive service before October, so the condenser is clean going into summer rather than being cleaned in response to a high pressure trip. Coastal and industrial sites usually need the condenser washed more often than annually.
Configurations
DX types we service
Coverage
DX servicingacross Australia
Brisbane and QLD
Brisbane CBD, Tingalpa, Woolloongabba, Eight Mile Plains, Gold Coast, Sunshine Coast, Ipswich, Townsville, Cairns
Our HQ. High ambient pushes condensing temperature up, so condenser condition matters more here than anywhere else in the country.
Sydney and NSW
Sydney CBD, Parramatta, North Ryde, Macquarie Park, Western Sydney, Alexandria, Newcastle, Wollongong
Rooftop condensers on tenanted buildings, where access and base building coordination usually set the schedule.
Melbourne and VIC
Melbourne CBD, Port Melbourne, Docklands, Dandenong, Tullamarine, Geelong, Ballarat, regional Victoria
Wide seasonal swing, so head pressure control that works in both summer and winter is worth verifying rather than assuming.
Perth and WA
Perth CBD, Fremantle, Kewdale, Kalgoorlie, Pilbara, regional WA
DX suits remote and resource sites precisely because it needs no water and no central plant. Coastal corrosion is the main constraint.
Canberra and ACT
Canberra CBD, Civic, Fyshwick, Mitchell, Barton, Tuggeranong, Belconnen, Queanbeyan
Departmental comms rooms, with Supply Nation and ICN Gateway registration for Commonwealth procurement.
SA, NT and Tasmania
Adelaide, Port Adelaide, Edinburgh, Whyalla, Darwin, Palmerston, Katherine, Alice Springs, Hobart
Remote shelters and switchrooms, with visits combined across nearby sites into a single mobilisation.
Questions
DX servicingFAQs
What facilities teams ask about direct expansion systems. If yours is not here, call 1800 046 344.
What is a DX CRAC unit?
A DX, or direct expansion, CRAC unit cools room air by evaporating refrigerant directly in a coil inside the unit, then rejecting that heat through an outdoor air-cooled condenser. It contains its own compressor and refrigerant circuit, so it is self contained and does not depend on a chiller or a condenser water loop. That independence is its main advantage: one unit failing does not take the room with it, and there is no central plant to maintain.
What does DX mean in air conditioning?
DX stands for direct expansion. It refers to refrigerant expanding directly in the evaporator coil that the room air passes over, rather than the unit using an intermediate medium such as chilled water. In a chilled water unit the refrigeration happens elsewhere, in a chiller, and only water reaches the room. In a DX unit the refrigeration cycle happens in the unit itself.
How often should DX CRAC systems be serviced?
Quarterly professional servicing is the recommendation for anything supporting critical infrastructure, with monthly or bi-monthly in-house checks on filters, condensate pumps and alarms. The annual visit adds electrical inspection with a thermographic scan, full coil cleaning inside and out, compressor performance testing and a complete diagnostic review. Coastal and dusty industrial sites usually need the condenser coil washed more often than annually.
What is included in DX CRAC servicing?
Refrigerant circuit measurement covering head and suction pressures, superheat and subcooling, plus leak inspection and charge recording under ARCtick licence. Condenser inspection and cleaning with every fan verified. Evaporator coil and filter work with airflow measured. Compressor performance, fan motors and belts, condensate management, humidifier and reheat where fitted, electrical inspection, sensor calibration, rack inlet temperature survey, alarm and BMS verification, and a written report with all measured values trended against previous visits.
Why is my DX unit not holding temperature on hot days?
In most cases the condenser rather than the unit. A fouled coil, a failed fan on a multi-fan condenser, or hot discharge air recirculating back into the intake all raise condensing temperature, and the effect only becomes visible when ambient is already high. Undercharge from a slow leak produces the same symptom. Both are identified by measuring superheat, subcooling and head pressure and comparing them against previous visits rather than by inspecting the unit visually.
Who is licensed to work on a DX CRAC unit in Australia?
Handling refrigerant requires an ARCtick licence issued under the Ozone Protection and Synthetic Greenhouse Gas Management Regulations, and it is an offence to work on a refrigerant circuit without one. Electrical work on the unit is licensed electrical work. A contractor should be able to produce both, along with the refrigerant charge record for the system. Ask for them before the first visit rather than after.
Is refrigerant becoming harder to get in Australia?
Progressively, yes. Australia is reducing the volume of hydrofluorocarbon refrigerant that can be imported under its phase-down obligations, so high global warming potential refrigerants become scarcer and more expensive over time. It rarely justifies replacing working plant early, but it does change the repair against replace calculation on an older unit with a slow leak and an ageing compressor. We record refrigerant type and charge at every visit so that decision can be made in a budget cycle rather than during a failure.
What is the difference between DX and CDW or CHW servicing?
DX servicing is refrigerant and condenser work: superheat, subcooling, head pressure, coil condition and fan operation, all under ARCtick licence. CDW adds an entire water side, because heat is rejected into a condenser water loop that usually runs to a cooling tower, which brings water treatment and compliance obligations with it. CHW has no compressor in the room at all, so servicing is hydronic: valve stroke, flow, delta T and coil condition. DX visits are the simplest of the three and the most dependent on something located outdoors.
Do you service DX systems outside Brisbane, Sydney and Melbourne?
Yes. Technicians travel from the Brisbane, Sydney and Melbourne hubs and we cover Perth, Adelaide, Canberra, Darwin, Hobart and regional centres. DX is the configuration we see most often on remote sites, because it needs no water and no central plant. For regional work we combine scheduled visits across nearby sites into a single mobilisation, so tell us about every site at booking rather than only the urgent one.
Related services
Equipment
DX platformswe service
Vendor agnostic by design. We service the units you already own, whoever supplied them, and confirm parts availability on discontinued platforms before the visit rather than after.
If your DX unit is struggling on hot days and nobody has been up to the condenser in years, that is the first thing worth checking and usually the cheapest thing to fix. Send us the make, model and location and we will quote the service including condenser access, so the outdoor half is actually inspected rather than skipped.
