UPS Sizing & Backup Power Planning — Australia
UPS Runtime & Battery Sizing Calculator
UPS runtime (hours) = usable battery capacity (kWh) ÷ connected load (kW). A 40kW load with 80kWh of usable battery capacity gives roughly 2 hours of backup — but real-world runtime is always lower than the simple formula suggests, once UPS efficiency losses and battery depth-of-discharge limits are factored in.
Calculating the correct UPS runtime and battery capacity is essential when designing backup power infrastructure. Whether protecting a server room, industrial control system, hospital load, or data centre environment, the battery system must deliver sufficient runtime during a power outage. This calculator gives a practical starting point — for verified system design, our engineering team provides full UPS infrastructure assessments and battery sizing as part of our design and deployment service.
UPS Runtime Formula
The basic formula used during early-stage UPS planning is:
| Runtime (hours) = Usable Battery Capacity (kWh) ÷ Load (kW) |
|
Example calculation Connected load: 40kW Usable battery capacity: 100kWh Estimated runtime: 100 ÷ 40 = 2.5 hours |
Why this is a starting estimate, not a final figure: battery nameplate capacity (Ah × Vdc) is not the same as usable capacity. UPS efficiency (typically 92–97%), depth-of-discharge limits, and the non-linear relationship between discharge rate and available capacity all reduce real runtime below this simple calculation. Verified runtime figures for critical infrastructure should always be checked against the battery manufacturer’s discharge curve data.
UPS Runtime Reference Table
Estimated runtime for a fixed 50kWh usable battery bank at different connected loads — illustrating how runtime actually changes as load increases, assuming ideal conditions.
| Connected Load | Usable Battery Capacity | Estimated Runtime |
|---|---|---|
| 5kW | 50kWh | 10 hours |
| 10kW | 50kWh | 5 hours |
| 20kW | 50kWh | 2.5 hours |
| 40kW | 50kWh | 1.25 hours |
| 50kW | 50kWh | 1 hour |
| 100kW | 50kWh | 30 minutes |
These figures assume ideal operating conditions and a fixed battery bank size for comparison. Actual performance depends on UPS efficiency, depth-of-discharge limits, and battery ageing — always confirm runtime against manufacturer discharge data for critical sites.
UPS Battery Sizing Formula
UPS battery systems are commonly sized using the inverse formula:
| Battery Capacity (kWh) = Load (kW) × Required Runtime (hours) |
|
Example calculation Connected load: 25kW Required runtime: 1.5 hours Baseline battery capacity: 25 × 1.5 = 37.5kWh |
Battery banks are then sized above this baseline figure — commonly by 20–30% — to allow for UPS efficiency losses, depth-of-discharge limits, and capacity loss as batteries age. Organisations planning UPS upgrades can also explore our battery replacement and upgrade services to improve runtime and system reliability.
UPS Battery String Calculation

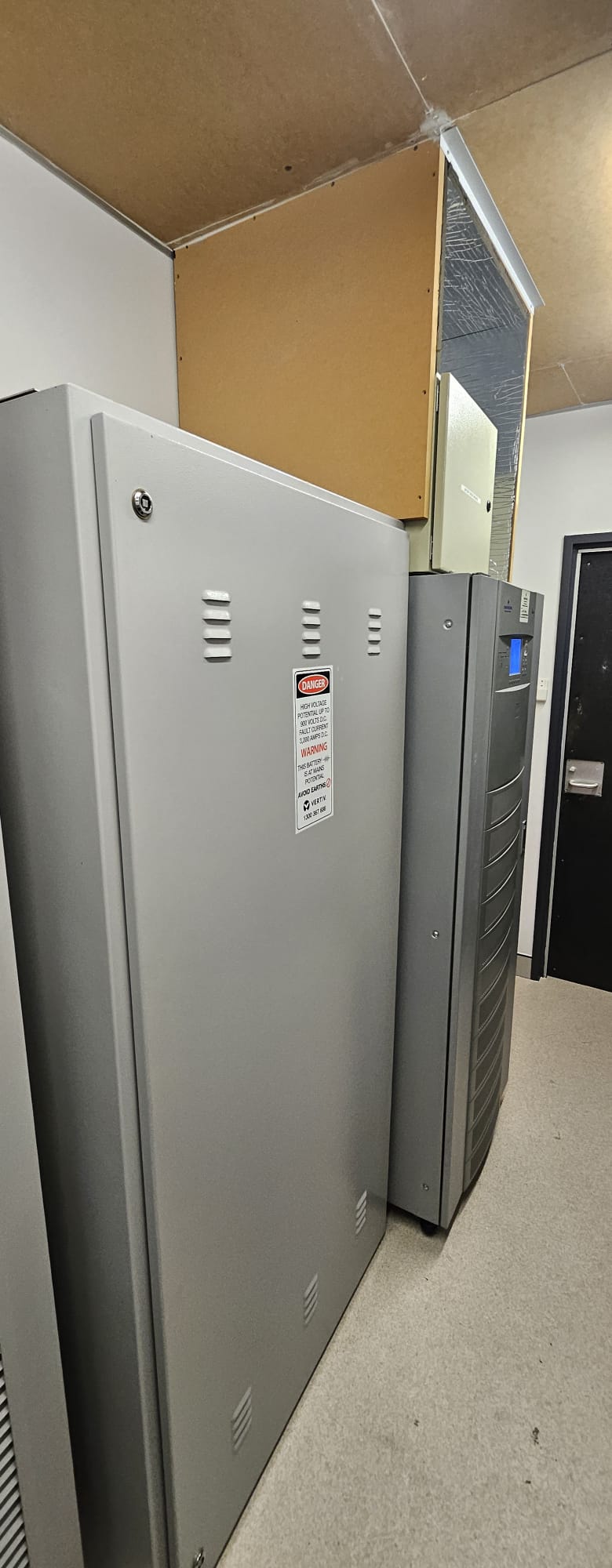

UPS systems often use battery strings — groups of 12V batteries connected in series to reach the required DC bus voltage. Battery energy can be estimated using:
| Battery Energy (Wh) = DC Voltage × Amp Hours |
|
Example calculation String voltage: 240V DC Battery capacity: 100Ah Battery energy: 240 × 100 = 24,000Wh (24kWh) |
Battery string design should always be confirmed against manufacturer discharge curves and system voltage requirements. For critical installations, this is normally performed during UPS system engineering and commissioning, not estimated from a simple formula alone.
Factors That Affect UPS Runtime
UPS runtime is influenced by several variables beyond simple battery capacity:
- Load demand — higher electrical loads discharge batteries faster, reducing runtime non-linearly (doubling the load more than halves the runtime in practice).
- UPS efficiency — online (double-conversion) UPS systems typically operate at 92–97% efficiency, which reduces the energy actually available to the load.
- Battery age — as VRLA and lithium batteries age, their usable capacity decreases and runtime drops even though nameplate capacity stays the same. See our battery replacement timeline guide.
- Ambient temperature — every 10°C above the rated 25°C reference temperature can cut battery lifespan by up to 50% and reduces available runtime during discharge.
- Battery technology — chemistry significantly affects both lifecycle performance and usable runtime per kWh of nameplate capacity.
| Battery Type | Typical Application | Key Advantage |
|---|---|---|
| VRLA | Standard UPS installations | Lower upfront cost |
| Lithium-ion | Modern UPS systems | Longer lifespan (8–15 years) |
| Flooded Lead Acid | Large infrastructure | High capacity |
| NiCad | Harsh environments | Temperature resilience |
Organisations implementing lithium systems often integrate them with Battery Energy Storage Systems (BESS) for extended runtime capability.
UPS Runtime Planning by Industry
Different industries design UPS runtime differently depending on operational risk:
- Data centres — UPS runtime is typically designed to support generator startup or controlled shutdown procedures, and is paired with CRAC cooling systems to maintain stable operating temperatures.
- Hospitals — healthcare facilities often require longer runtimes for life safety systems and critical medical equipment.
- Industrial facilities — industrial UPS systems commonly protect process control systems and automation equipment.

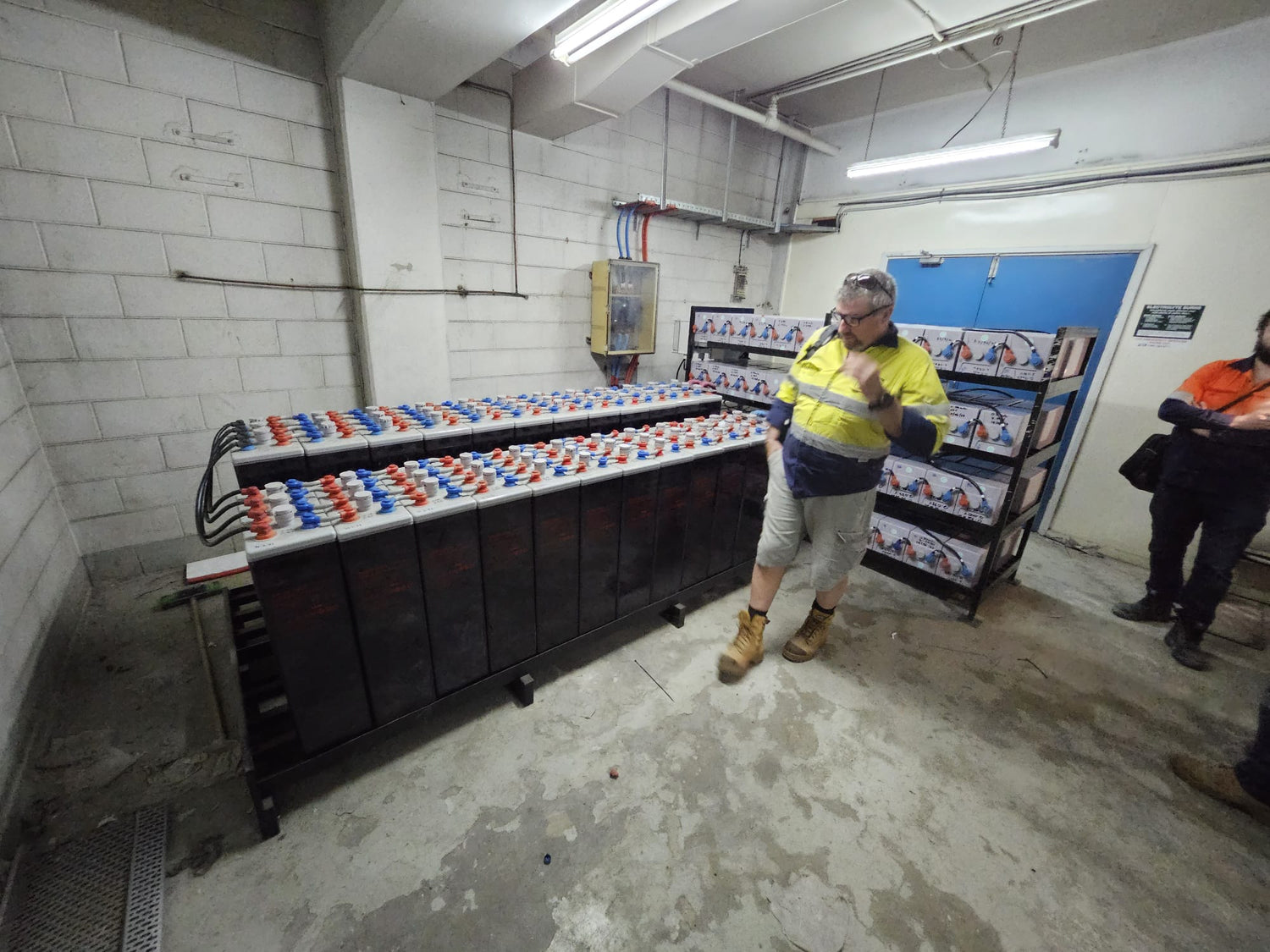

- Telecommunications — remote telecom installations rely on battery systems to maintain network uptime until power is restored.
Integrated UPS & Cooling Infrastructure
UPS systems generate heat during operation, particularly in large three-phase installations. Cooling infrastructure must be designed alongside power systems, not as an afterthought. Indigi Power & Cooling provides integrated solutions combining:
- UPS power protection systems
- Battery infrastructure
- CRAC precision cooling
- Environmental monitoring
- Redundancy architecture
|
Need Help Sizing Your UPS Battery System? A calculator is a useful starting point, but professional engineering ensures accurate sizing and long-term reliability. Our team supports UPS runtime assessments, battery string calculations, replacement planning, and BESS integration. Request a Quote |
UPS Runtime Calculator FAQ
How do I calculate UPS runtime?
The basic planning formula is Runtime = Usable Battery Capacity ÷ Load. For example, a 40kW load with 80kWh of usable battery capacity gives an estimated 2-hour runtime. Real installations must also account for UPS efficiency losses (typically 92–97%) and depth-of-discharge limits, which reduce usable capacity below the battery’s full rated capacity.
How do I size a UPS battery system?
Multiply the required load (kW) by the required runtime (hours) to get a baseline battery capacity (kWh), then add extra capacity to cover system losses, depth-of-discharge limits, and battery ageing. A 25kW load needing 1.5 hours runtime gives a baseline of 37.5kWh — in practice the battery bank is sized above this figure, often by 20–30%, to allow for these losses.
Are UPS runtime calculators accurate?
UPS runtime calculators are useful for early-stage planning but are not a substitute for manufacturer battery discharge curve data. Simple kWh-based formulas ignore depth-of-discharge limits and the non-linear relationship between discharge rate and available capacity, so final runtime figures for critical infrastructure should always be verified against the actual battery and UPS manufacturer’s data sheets.
Does temperature affect UPS battery runtime?
Yes. High ambient temperature significantly reduces both UPS battery lifespan and available runtime. As a rule of thumb, every 10°C increase above the rated 25°C reference temperature can reduce VRLA battery lifespan by up to 50%, and batteries running hot also deliver less usable capacity during a discharge event.
When should UPS batteries be replaced?
Most VRLA batteries last 3–5 years depending on temperature and usage. Lithium-ion batteries typically last 8–15 years. Runtime capacity declines well before outright failure, so ageing batteries should be tested annually rather than judged on age alone. See our full UPS battery replacement timeline.
How many batteries are in a typical UPS battery string?
Most commercial UPS systems use 12V VRLA batteries connected in series to reach the required DC bus voltage. A 192V DC string uses 16 batteries, a 240V DC string uses 20 batteries, and larger systems use multiple parallel strings of 32 or more batteries each at higher bus voltages such as 384V DC. See our full battery sizing reference table for cost estimates by system size.
