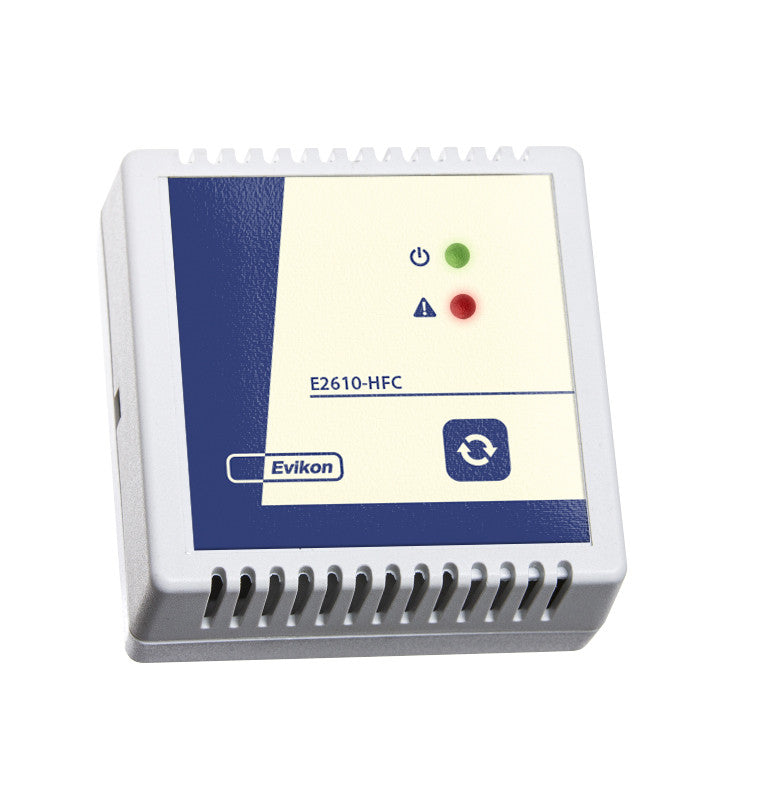

Evikon E2610-HFC Refrigerants Detector

Compact Indoor HFC and HFO Refrigerant Leak Detector for Cold Storage, Plant Rooms and Commercial Cooling Environments

The Evikon E2610-HFC is a compact, easy-to-install fixed refrigerant detector for indoor environments where HFC or HFO refrigerant leaks are possible. It uses a stable long-life metal-oxide semiconductor sensor sensitive to a wide range of refrigerant compounds, with built-in visual LED alarm, 85 dB audible buzzer, and two SPDT relay outputs for ventilation or remote alarm control. Designed for straightforward installation without the need for analog outputs or BMS integration, the E2610-HFC is the practical choice for smaller plant rooms, cold storage facilities, and commercial cooling environments.

Supplied by Indigi Power & Cooling across Australia.

Applications

• Cold storage warehouses and cool rooms

• Skating arenas and large-format refrigeration facilities

• Commercial HVAC and refrigeration plant rooms

• Server rooms and data centre CRAC cooling areas

• Retail refrigeration environments

• Any indoor space where halocarbon refrigerant leakage is a risk

Refrigerants Detected

The E2610-HFC sensor is sensitive to a wide range of HFC and HFO refrigerant compounds including:

R-32, R-134a, R-404a, R-407c, R-410a, R-449a, R-454a, R-454b, R-454c, R-507, R-513a, R-514a, R-1234ze, and other halocarbon gases.

Technical Specifications

Key Features

• Stable long-life metal-oxide semiconductor sensor with greater than 5 year service life

• Sensitive to a wide range of HFC and HFO compounds on a single unit

• Built-in 85 dB audible buzzer and blinking LED for immediate on-site alarm

• Two SPDT relay outputs for ventilation fan control or remote alarm signalling

• Compact wall-mount form factor for easy installation in plant rooms and cool rooms

• Simple 24 VDC/AC power supply with 230 VAC option for direct mains connection

• No analog outputs or BMS integration required — standalone operation out of the box

• Operating temperature range -30 to +70 degrees C

E2610-HFC vs E2638-HFC: Which to Choose

Both the E2610-HFC and the E2638-HFC use the same metal-oxide sensor technology and cover the same range of HFC and HFO refrigerants. The right choice depends on your integration requirements.

The E2610-HFC is the better fit for standalone installations where a local alarm and relay output for ventilation control is all that is required. It installs quickly, operates on standard 24V or 230V power, and provides immediate audible and visual alarm without any additional hardware.

The E2638-HFC is the better fit when BMS or SCADA integration is needed. It adds dual 4-20 mA or 0-10 V analog outputs, RS485 Modbus RTU, IP65 protection, and user-settable alarm thresholds, making it the right choice for data centres, larger facilities, and any site where refrigerant levels need to be logged and managed through a building management system.

Documents

• E2610-HFC Technical Datasheet (PDF)

• E2610-HFC User Manual (PDF)

• CE Declaration of Conformity (PDF)

Supply by Indigi Power & Cooling

Indigi Power & Cooling supplies Evikon MCI gas detection equipment across Queensland, New South Wales, Victoria, and Papua New Guinea. The E2610-HFC is a practical standalone solution for smaller commercial refrigeration and cooling environments. For larger or more complex sites requiring BMS integration, our team can advise on the appropriate sensor and system design.
