What Is a UPS System and How Does It Work? The Complete Australian Guide
Quick answer
A UPS (Uninterruptible Power Supply) system provides instant backup power when mains supply fails or fluctuates. It uses batteries and an inverter to keep critical equipment running without interruption, bridging the gap until mains power returns or a generator takes over.
Inside the unit, incoming AC power is converted, regulated, and reshaped before reaching your equipment, so the load receives clean, stable output regardless of what is happening upstream. Indigi Power & Cooling supplies and services UPS systems from APC, Eaton, Vertiv, Schneider Electric, and other leading brands across Australia.
What does a UPS actually protect you from?
A UPS guards against the nine common power problems identified by industry standards:
-
Power outage, complete loss of mains
-
Voltage sag, short-term drop in voltage
-
Voltage swell, short-term rise in voltage
-
Undervoltage / brownout, sustained low voltage
-
Overvoltage, sustained high voltage
-
Line noise, high-frequency interference
-
Frequency variation, drift away from 50 Hz (in Australia)
-
Switching transients, fast, high-amplitude voltage spikes
-
Harmonic distortion, waveform corruption
Different UPS topologies protect against different combinations of these. Choosing the right one is a balance of risk, criticality, and cost.
How a UPS works: the basics
At its simplest, a UPS sits between mains power and your critical equipment. Three things happen inside:
-
Power monitoring. The UPS continuously measures incoming voltage, frequency, and waveform.
-
Energy storage. Batteries (and sometimes flywheels or supercapacitors) store enough energy to ride through outages or transfer to a generator.
-
Power conditioning. The UPS shapes the output power so your load receives clean, stable AC.
When mains is healthy, the UPS keeps batteries charged and lets power through (with varying levels of conditioning). When mains fails or drifts outside acceptable limits, the UPS draws on its batteries, typically transferring in milliseconds, fast enough that connected equipment does not notice.
When mains returns or a generator stabilises, the UPS smoothly transfers back, recharges its batteries, and stands ready for the next event.
The three UPS topologies explained
Almost every UPS sold in Australia falls into one of three topologies. Understanding the difference is essential to choosing the right system.
1. Standby (offline) UPS
How it works: The load runs directly from mains. When mains fails, the UPS switches to battery and inverter.
Transfer time: 4 to 8 milliseconds (acceptable for most consumer electronics).
Best for: Home offices, single PCs, small POS terminals, basic CCTV.
Pros: Cheapest, simplest, very efficient (around 98%).
Cons: No power conditioning during normal operation, and transfer time may not suit sensitive equipment.
2. Line-interactive UPS
How it works: Power flows through the UPS via an automatic voltage regulator (AVR) that smooths sags and swells. On a power event, the UPS switches to battery within a few milliseconds.
Transfer time: 2 to 4 milliseconds.
Best for: Small-to-mid server rooms, network closets, retail IT, branch offices. The APC Smart-UPS Ultra range is a popular choice in this category.
Pros: Handles voltage variations without using battery (extends battery life), good efficiency (around 95 to 97%), affordable.
Cons: Brief transfer time, and does not fully isolate the load from mains during normal operation.
3. Double conversion online UPS
How it works: Incoming AC is converted to DC, then back to AC through the inverter. The load is always powered by the inverter, regardless of mains state.
Transfer time: Zero. There is no transfer because the load never leaves the inverter.
Best for: Data centres, mission-critical servers, healthcare equipment, broadcast, industrial control, sensitive lab equipment.
Pros: Continuous power conditioning, complete isolation, zero transfer time, cleanest output.
Cons: Higher purchase price, slightly lower efficiency (around 94 to 96% on modern models).
Topology comparison
For most Australian businesses with serious IT loads, double conversion online is the default recommendation. For smaller environments or budget-sensitive deployments, line-interactive is often the right call.
UPS battery types: VRLA vs lithium
The battery is the most failure-prone part of any UPS, and battery technology has evolved significantly. You can browse our full UPS replacement battery range for both chemistries.
Valve-regulated lead-acid (VRLA)
-
Service life: 3 to 5 years typical
-
Pros: Low purchase cost, well-understood, widely available
-
Cons: Heavier, larger footprint, more frequent replacement, narrower operating temperature range
-
Brands we work with: Vision, Yuasa, CSB, and others
Lithium-ion (LiFePO4 and similar chemistries)
-
Service life: 10 to 15 years typical
-
Pros: Longer life, lighter, smaller footprint, wider temperature tolerance, fewer total replacements over UPS lifetime
-
Cons: Higher upfront cost, but typically cheaper over the asset life
-
Increasingly the default for new installs above a certain size
In our experience, lithium batteries make economic sense for any UPS expected to be in service more than 5 to 7 years, which is most installs. For planning, see our UPS battery replacement timeline guide.
Sizing a UPS: how big do you need?
UPS sizing is not just about today's load. A proper sizing exercise considers:
-
Total connected load (kW and kVA) including future additions
-
Power factor of the connected equipment
-
Required runtime (how long must it run on battery alone?)
-
Generator integration. If a genset will start within 30 seconds, you may need less battery
-
Redundancy strategy (N, N+1, 2N)
-
Headroom, typically 25 to 40% above current load
Undersizing leads to overload trips. Oversizing wastes capital and runs inefficiently. A site survey by a qualified UPS supplier sorts this out properly. Learn more about our UPS design and installation service.
What is UPS runtime, and how much do I need?
Runtime is how long a UPS can supply your load on battery alone. Typical targets:
-
5 to 10 minutes, to bridge to a generator or graceful shutdown
-
15 to 30 minutes, to ride through most outages and allow safe shutdown
-
30 to 60 minutes, for extended runtime on critical loads without a generator
-
1+ hours, for sites with no generator and high outage tolerance requirements
Each doubling of runtime roughly doubles battery cost and footprint. For most business sites with a generator, 8 to 10 minutes at full load is the sensible standard.

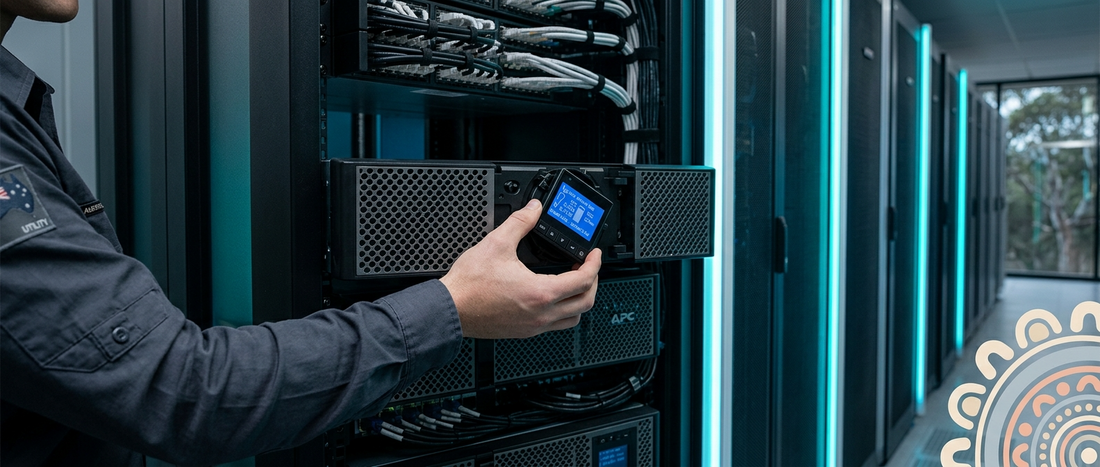

Common UPS brands supplied in Australia
Indigi Power & Cooling supplies and services UPS systems from the major global manufacturers, with full local support across Australia:
-
APC by Schneider Electric, broadest range, popular for SMB and enterprise
-
Eaton, strong in mid-range and large commercial
-
Vertiv (formerly Liebert), leader in data centre-class systems
-
Schneider Electric (large three-phase and modular)
-
Other brands for specialised applications
Each has strengths in different size ranges and use cases. The right brand depends on your application, budget, and existing infrastructure. For challenging environments, see our high-temperature and industrial UPS range.
Where do UPS systems get used?
UPS systems are deployed across virtually every sector. The most common applications we support across Brisbane, Sydney, Melbourne, and regional Australia include:
-
Server rooms and data centres
-
Hospitals, pathology labs, and medical imaging
-
Financial services and trading floors
-
Manufacturing and industrial control
-
Telecommunications and edge sites
-
Broadcast and live production
-
Retail point-of-sale and back-office
-
Government, defence, and emergency services
-
Lifts, fire systems, and building services
Anywhere uptime matters, a UPS belongs in the design.
Frequently asked questions
What does UPS stand for?
Uninterruptible Power Supply. It is the formal name for a backup power system that provides instant power continuity during mains disturbances.
How long does a UPS battery last?
VRLA batteries typically last 3 to 5 years. Lithium batteries last 10 to 15 years. Both are influenced by ambient temperature, discharge cycles, and charging discipline.
Do I need a UPS if I have a generator?
Yes. Generators take 10 to 30 seconds to start and stabilise. The UPS bridges that gap and handles short outages that do not justify starting the genset.
What's the difference between line-interactive and double conversion online UPS?
Line-interactive lets mains power pass through with regulation, switching to battery in milliseconds during an event. Double conversion online always runs the load through the inverter, providing continuous conditioning and zero transfer time.
How often should I replace UPS batteries?
Plan for VRLA replacement at 3 to 5 years and lithium replacement at 10 to 15 years, with annual battery health testing in between. Our UPS battery replacement timeline page goes into more detail.
Can a UPS handle lightning strikes?
A UPS provides surge protection for typical events but is not a substitute for proper site-level surge protection devices (SPDs) and earthing.
For more questions, see our UPS, battery and CRAC FAQ page.
Choosing the right UPS for your site
The best UPS is the one matched to your actual load, runtime needs, criticality, and budget. A 30-minute site survey almost always pays for itself by avoiding under- or over-sized systems.
