APC external battery packs (EBMs) extend the runtime of a compatible APC Smart-UPS
system without replacing the UPS itself. When connected to a supported Smart-UPS X,
SRT, RT or Ultra model, an EBM adds additional battery strings in parallel, increasing the
total energy reserve available during a mains failure. Indigi Power and Cooling stocks 32
genuine APC EBM units across the Smart-UPS X, SRT, RT, XL and Easy UPS SRV ranges, available
for supply across Australia.
What is an APC External Battery Pack?
An APC external battery pack (also called an EBM -- External Battery Module -- or XBP) is
an add-on battery cabinet designed to connect directly to a compatible APC UPS via a
dedicated battery bus connector. The UPS automatically detects the additional battery
capacity and adjusts its runtime estimate accordingly.
Using an external battery pack to extend runtime is significantly more cost-effective than
replacing a UPS with a larger unit. A correctly specified EBM can multiply the runtime of
a Smart-UPS system two to four times at the same load, without requiring any additional
electrical work or reconfiguration of connected equipment.
EBMs are available for tower, rack-mount and convertible UPS installations, in form factors
ranging from 1U to 5U. Each model is matched to specific UPS voltage and battery string
configuration -- selecting the correct EBM for your UPS model is essential.
Why Extend UPS Runtime with an External Battery Pack
The internal battery in a standard APC Smart-UPS system is sized to provide enough runtime
for a controlled shutdown -- typically 5 to 15 minutes at full load. For many applications
in Australia, particularly sites where grid outages can be extended or where a generator
takes time to start and stabilise, this is not enough.
-
Generator bridge: a UPS EBM can extend runtime long enough to bridge through a generator start sequence (typically 10 to 30 seconds), ensuring the load never drops power even if the generator takes longer than expected to come online
-
Regional and remote sites: sites in Queensland, Western Australia and the Northern Territory where grid outages can last hours benefit significantly from extended battery capacity
-
Critical infrastructure: healthcare, telecommunications, security and industrial control systems where a brief outage has safety or regulatory consequences
-
Planned maintenance windows: extended runtime allows maintenance to be performed on connected systems without a hard shutdown
-
Cost efficiency: adding an EBM to an existing UPS is almost always cheaper than replacing the UPS with a higher-capacity model to achieve the same runtime
APC EBM Compatibility Guide
Each APC external battery pack is compatible with specific UPS models. Confirm your UPS
model number before ordering -- the battery voltage and connector type must match exactly:
| EBM Series |
Compatible UPS Range |
Voltage |
Form Factor |

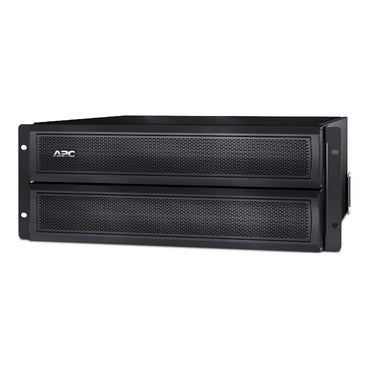

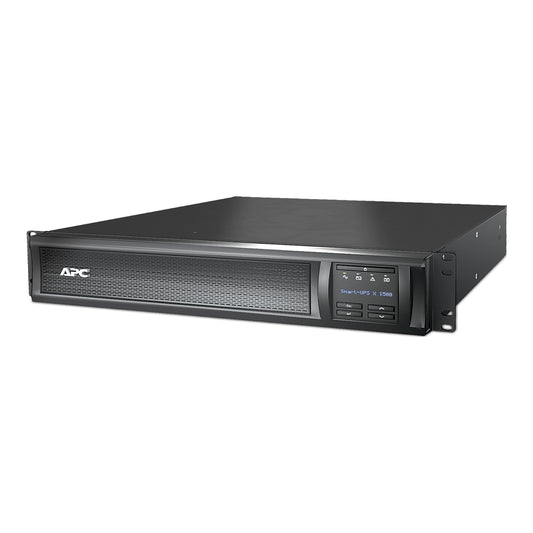

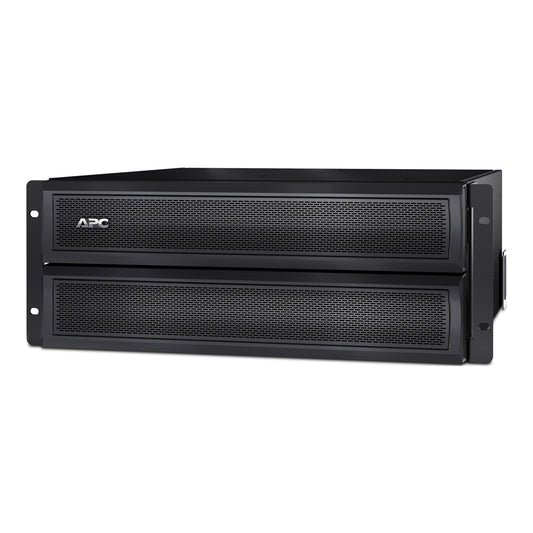

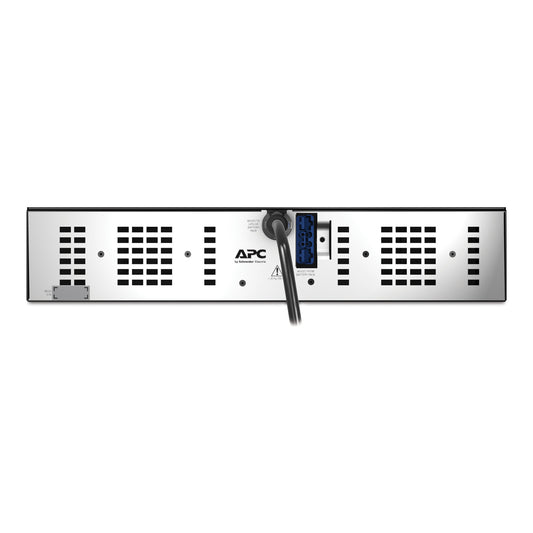

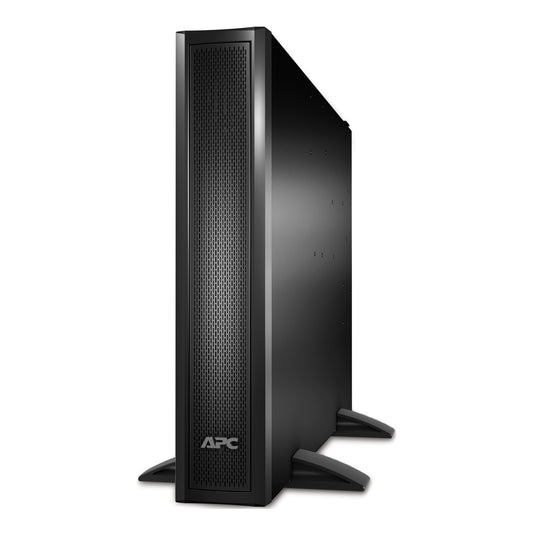

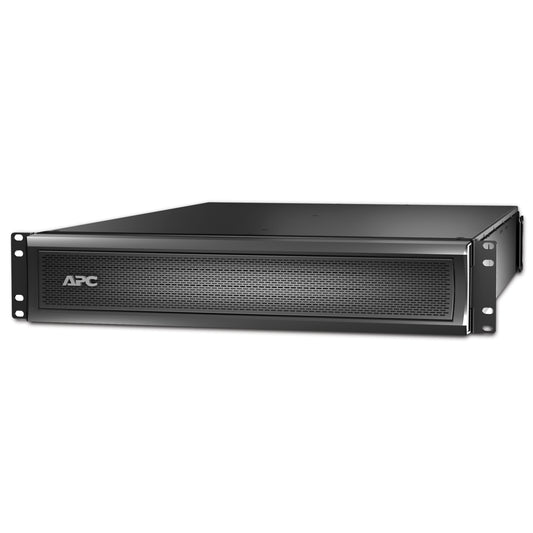

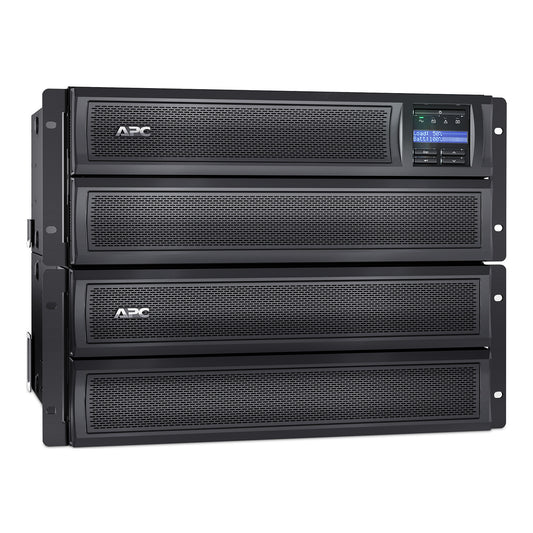

| SMX Series (SMX48RMBP2U etc) |
Smart-UPS X 2kVA to 3kVA |
48V / 120V |
2U rack / tower |

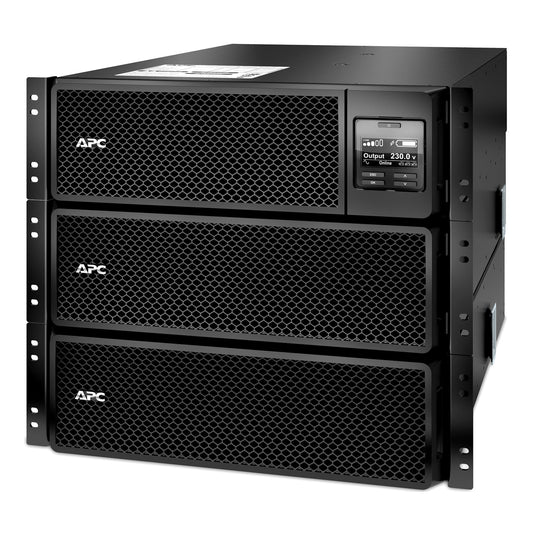

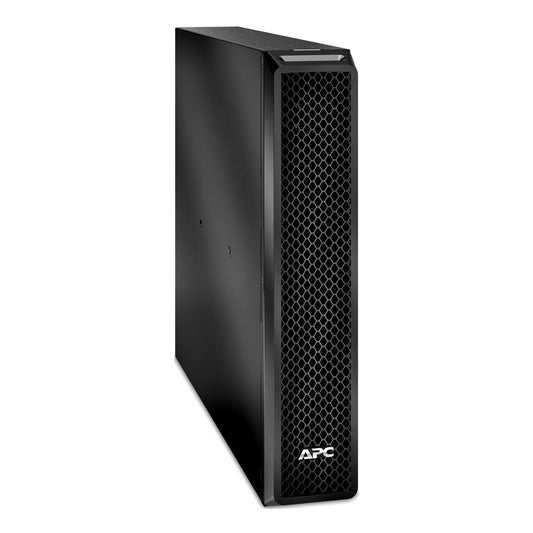

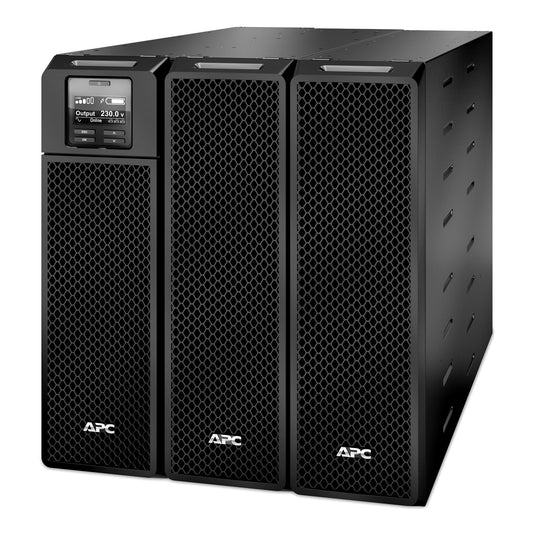

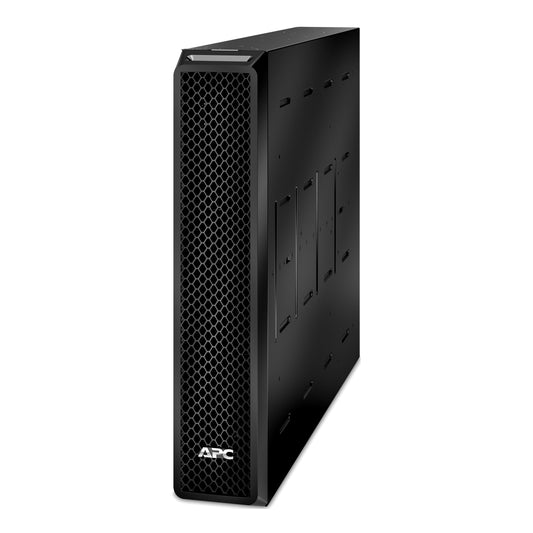

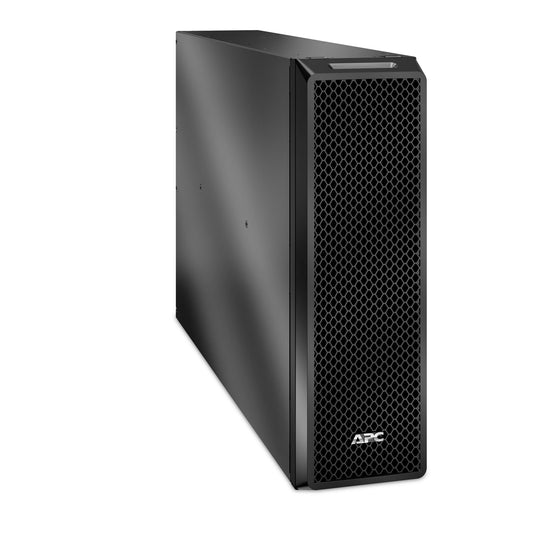

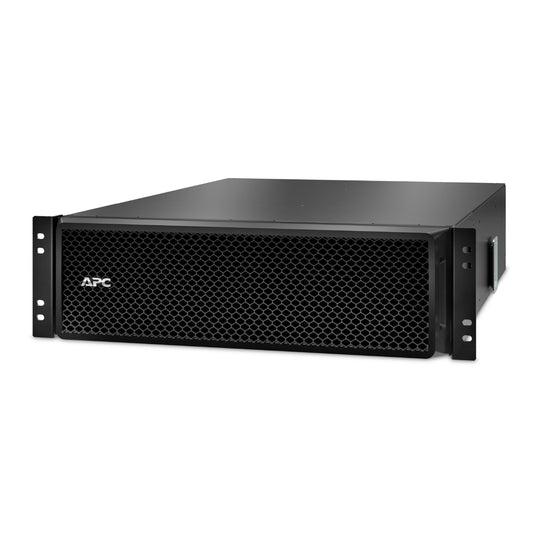

| SRT Series (SRT96BP, SRT192BP2 etc) |
Smart-UPS On-Line SRT 1kVA to 10kVA |
96V / 192V |
Tower / rack |

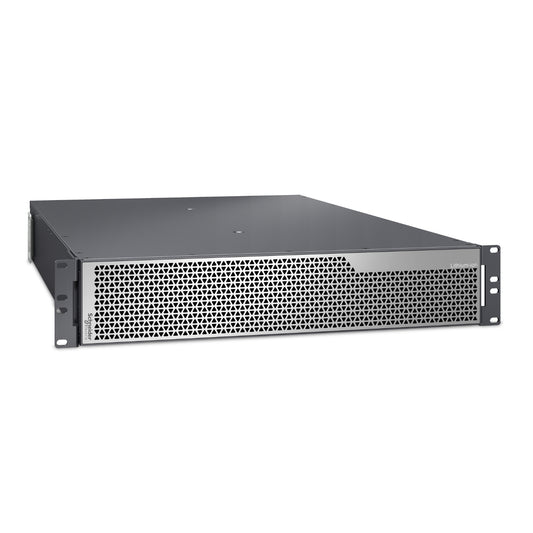

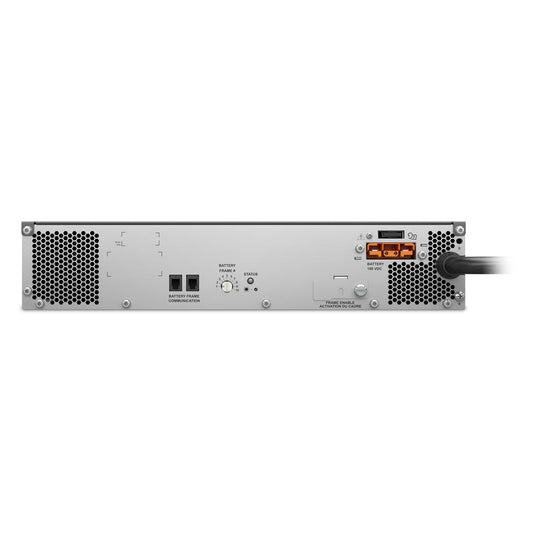

| SRTL Series (SRTL180RM2UBP etc) |
Smart-UPS Ultra On-Line (SRTL) 5kVA to 15kVA |
180V |
2U rack / tower |

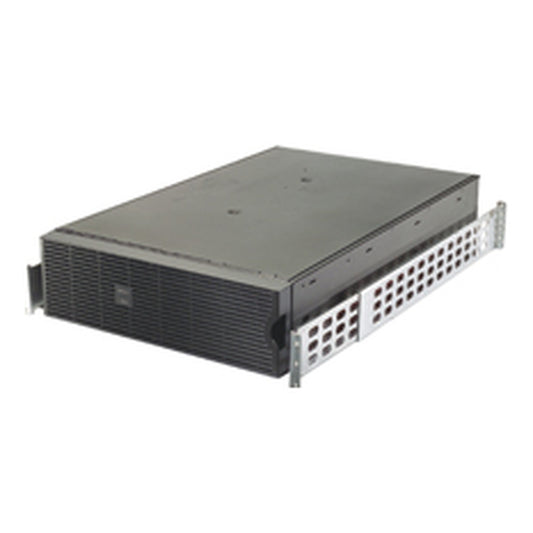

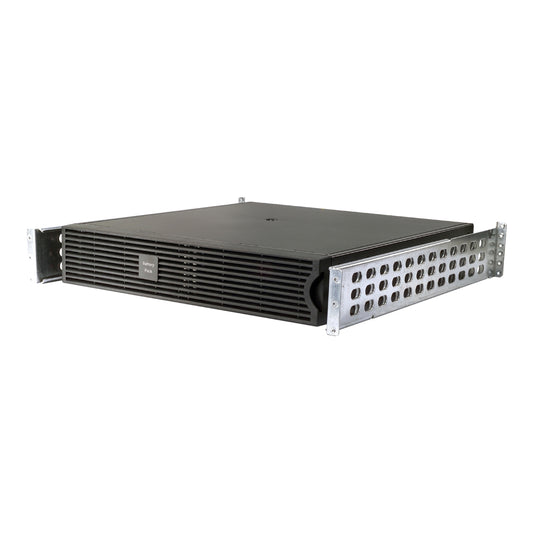

| SURT Series (SURT48RMXLBP etc) |
Smart-UPS RT 3kVA to 10kVA |
48V / 192V |
Rack-mount RM |

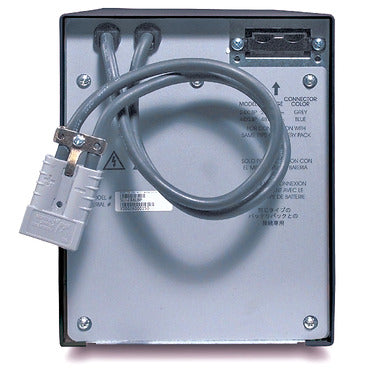

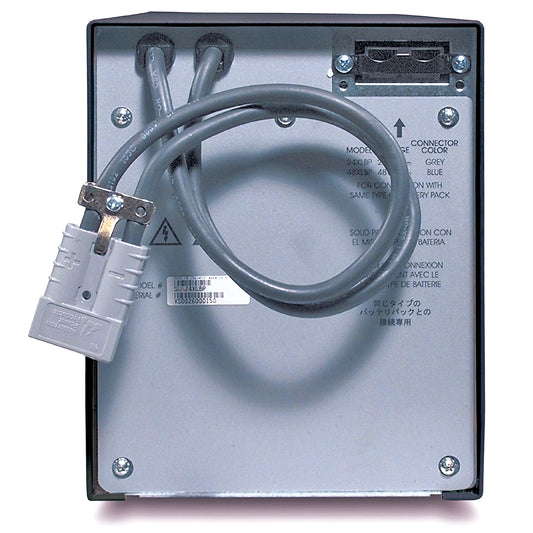

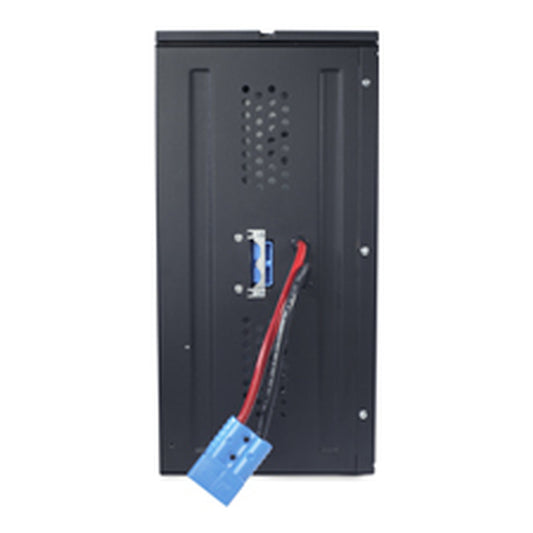

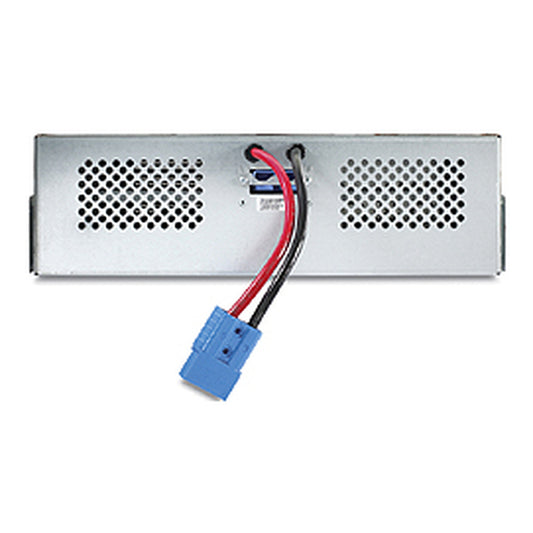

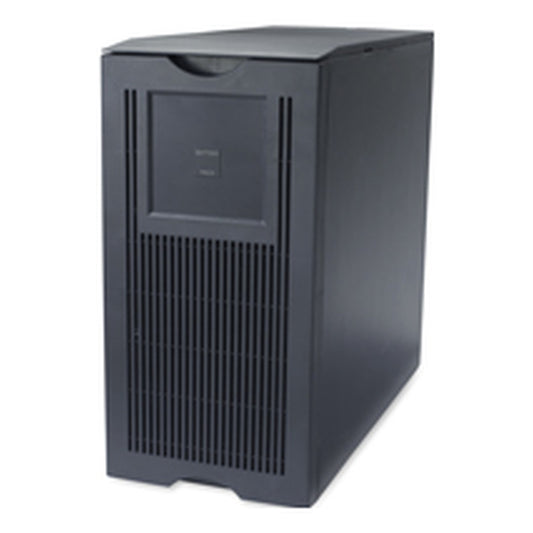

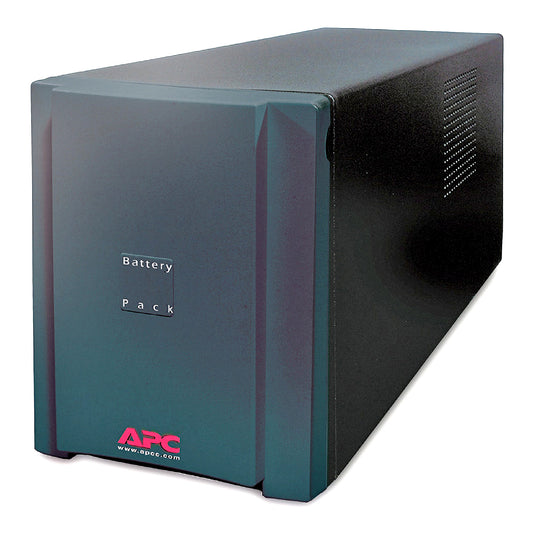

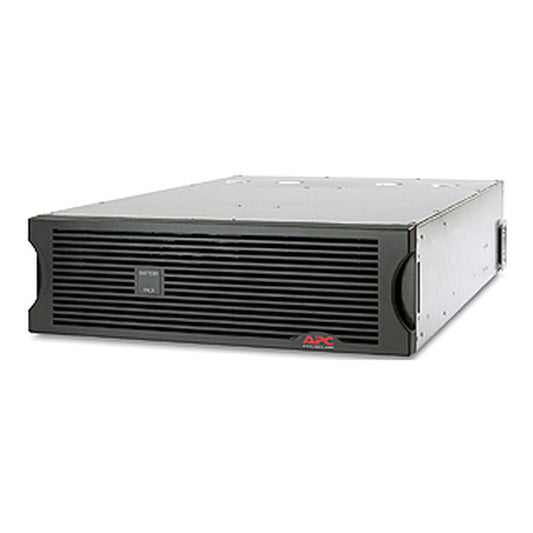

| SUA XL Series (SUA24XLBP, SUA48XLBP etc) |
Smart-UPS XL 750VA to 3kVA |
24V / 48V |
Tower / 3U / 5U rack |

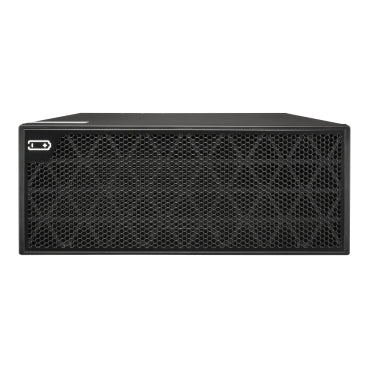

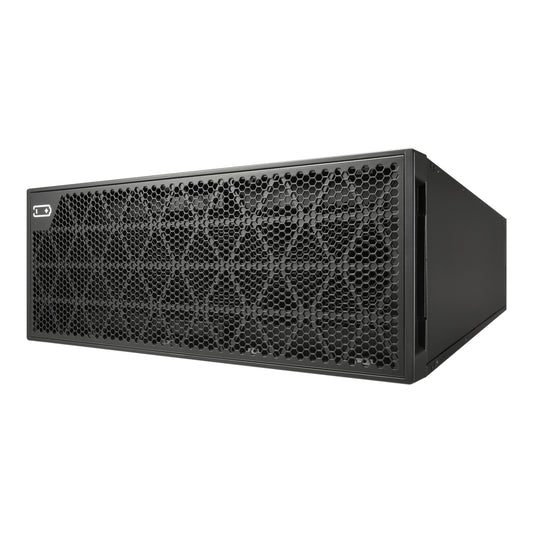

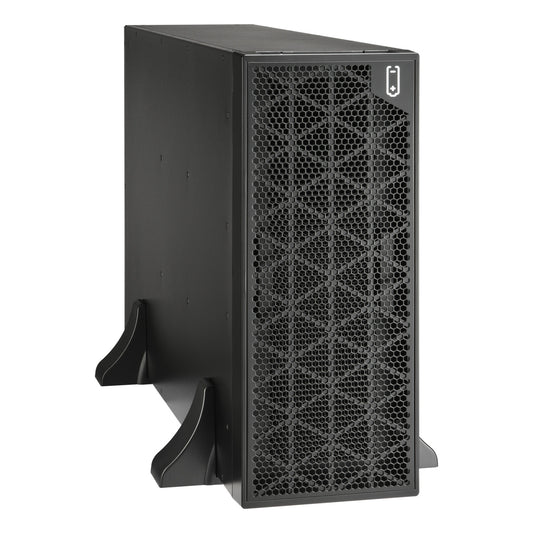

| SRTG Series (SRTG192XLBP2 etc) |
Smart-UPS RT G series |
192V |
Rack (without rail kit) |

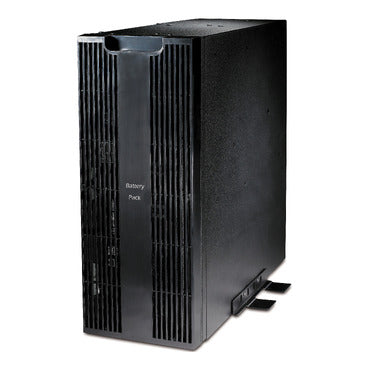

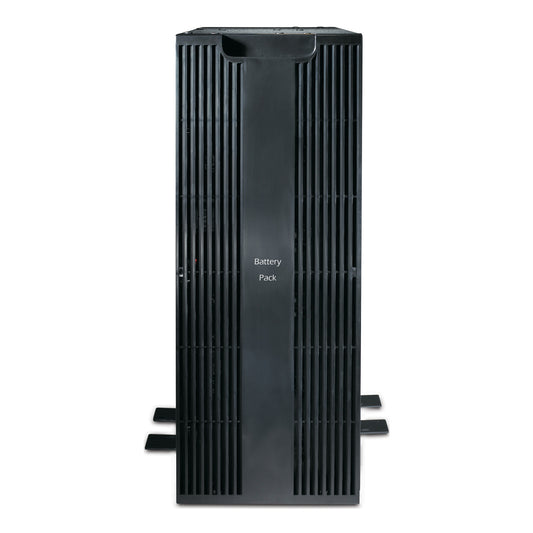

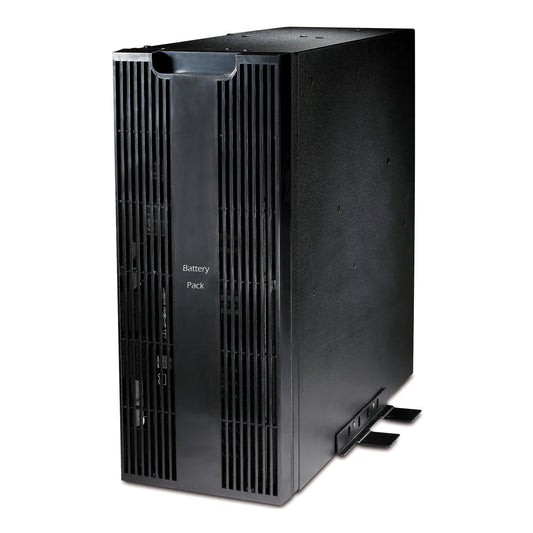

| SRC Series (SRC96XLBP2S etc) |
Smart-UPS RC models |
96V |
XL battery string |

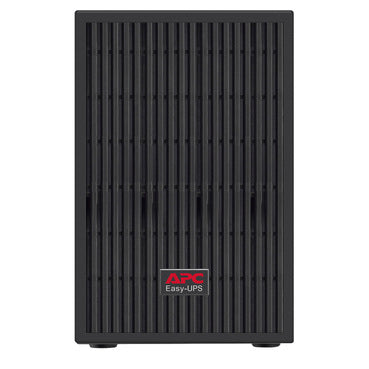

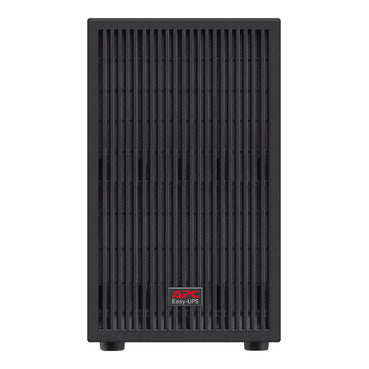

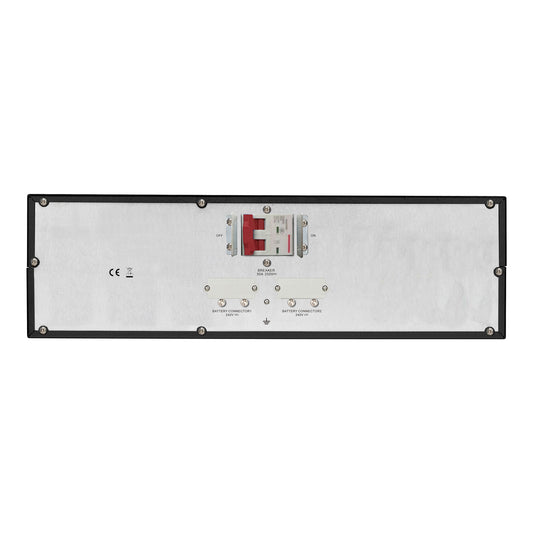

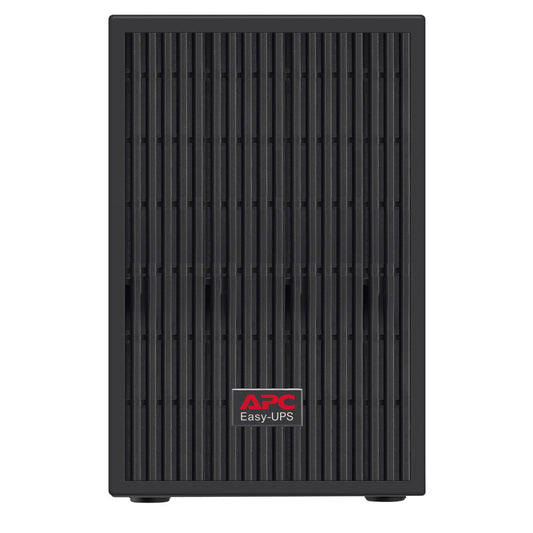

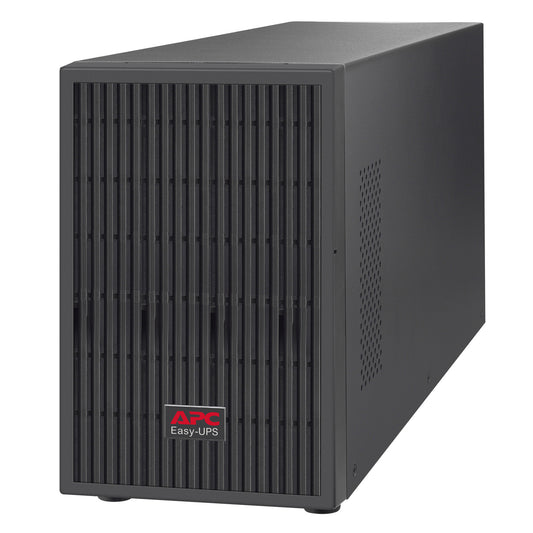

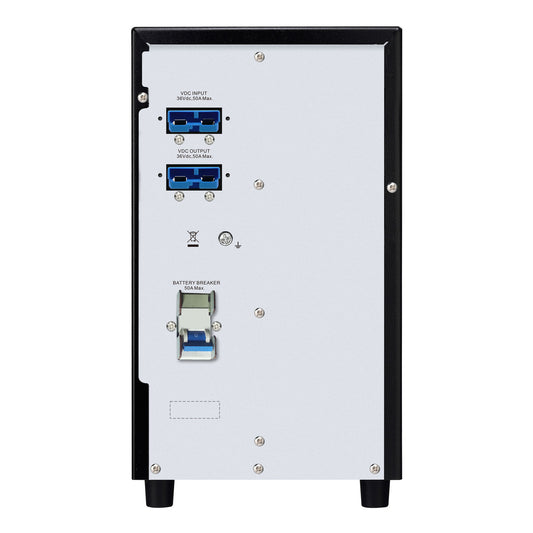

| SRV Series (SRV36BP-9A, SRV72BP-9A etc) |
Easy UPS On-Line SRV 1kVA to 10kVA |
36V / 72V / 240V |
Tower / 3U rack |
Not sure which EBM is compatible with your UPS?
Contact our team
with your UPS model number and we will confirm the correct external battery pack.
APC External Battery Pack Supply Across Australia
Indigi Power and Cooling supplies genuine APC external battery packs across Australia from
our Brisbane, Sydney and Melbourne hubs:
Brisbane and QLD
Brisbane CBD, Gold Coast, Sunshine Coast, Ipswich, Townsville, Cairns, regional QLD
|
Sydney and NSW
Sydney CBD, Parramatta, North Ryde, Newcastle, Wollongong, Canberra (ACT)
|
|
|
Perth, Adelaide, Darwin and NT
Serviced nationally. Contact us for supply to WA, SA, NT and remote sites.
|
Supply only or supply with professional installation by our APC-certified technicians.
UPS installation and commissioning details.
APC External Battery Pack FAQs
What is an APC external battery pack?
An APC external battery pack (EBM) is an add-on battery cabinet that connects to a compatible APC Smart-UPS to extend its runtime during a mains power failure. The UPS automatically detects the additional capacity. EBMs are available for Smart-UPS X, SRT, RT, XL, Ultra and Easy UPS SRV series.
How do I know which APC EBM is compatible with my UPS?
APC EBMs are matched by UPS series and battery voltage. The SMX series EBMs suit Smart-UPS X models, the SRT series suit Smart-UPS On-Line SRT models, and the SRTL series suit Smart-UPS Ultra models. Check the compatibility table above or contact our team with your UPS model number for confirmation.
How much runtime does an APC external battery pack add?
Runtime depends on the load connected to the UPS and the number of EBMs added. As a general rule, one EBM approximately doubles the internal battery runtime at the same load. Use our UPS runtime calculator to estimate runtime with your specific load and EBM configuration.
Can I add more than one external battery pack to my APC UPS?
Some APC Smart-UPS models support multiple EBMs daisy-chained together. The maximum number of EBMs per UPS varies by model -- check the UPS specification sheet or contact our team. Each additional EBM adds roughly the same additional runtime as the first.
Are APC external battery packs user-replaceable?
Yes. APC EBMs use standard VRLA or lithium-ion batteries that can be replaced when they reach end of life. Replacement battery cartridges (RBCs) for APC systems are stocked by Indigi Power and Cooling. See our APC RBC battery replacement range.
Do you supply APC external battery packs across Australia?
Yes. Indigi Power and Cooling supplies genuine APC external battery packs to Brisbane, Sydney, Melbourne, Perth, Adelaide, Darwin and remote sites across Australia and the Pacific. Contact us for supply, installation and commissioning.
Need Help Selecting the Right APC External Battery Pack?
Tell us your APC UPS model number, current load and required runtime. We will confirm
the compatible EBM and provide a supply quote. Indigi Power and Cooling is an Indigenous
and Veteran-owned business -- Supply Nation and ICN Gateway registered.
