What Are PowerShield Three Phase UPS Systems?

PowerShield is an Australian-owned power protection brand with over 20 years of experience designing UPS systems specifically for Australian conditions. Built to handle the harsh electrical environments, wide input voltage variations, and high ambient temperatures common across Australian industrial and commercial sites, PowerShield three phase UPS systems deliver reliable, high-efficiency online double-conversion protection for data centres, manufacturing facilities, telecommunications infrastructure, mining operations, and healthcare environments.

Indigi Power & Cooling supplies, installs, and maintains the full PowerShield three phase range across Brisbane, Sydney, Melbourne, and regional Australia.

PowerShield Three Phase UPS Product Families

PowerShield Centurion Pro Three Phase (10-80kVA)

The Centurion Pro is PowerShield's proven three phase UPS for server rooms, data centres, industrial processes, and telecommunications systems. Available from 10kVA to 80kVA in both 3-phase in, 3-phase out (3:3) and 3-phase in, 1-phase out (3:1) configurations.

Key features include:

• True online double-conversion topology with zero transfer time

• Output power factor of 1.0 (kVA = kW) - maximum power delivery to your load

• Dual mains input for generator compatibility and enhanced redundancy

• DSP technology with active input power factor correction on all phases

• Colour LCD display with voice notification alerts

• ECO mode for energy saving during stable mains conditions

• Optional N+1 parallel redundancy - up to 4 units in parallel for capacity or redundancy

• External battery cabinet options for extended runtime

• Intelligent Slot for optional SNMP, Modbus, and environmental monitoring cards

• Wide input voltage range for harsh and unstable electrical environments

• Adjustable output voltages and 50Hz/60Hz frequency converter mode

• Compliant with AS/NZS 3000

Available configurations: 10kVA, 20kVA, 30kVA, 40kVA, 60kVA, 80kVA (standard and long run)

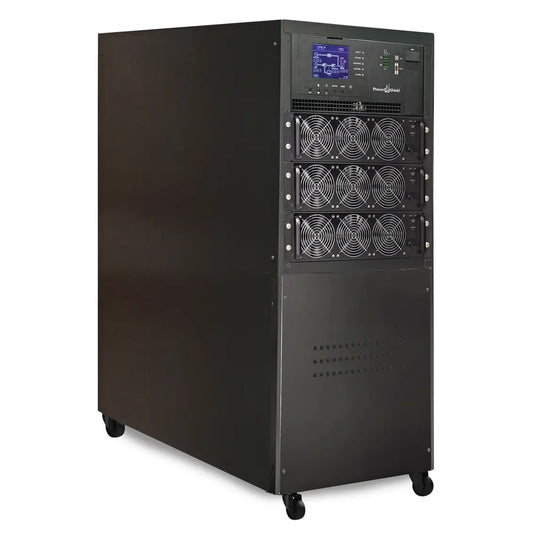

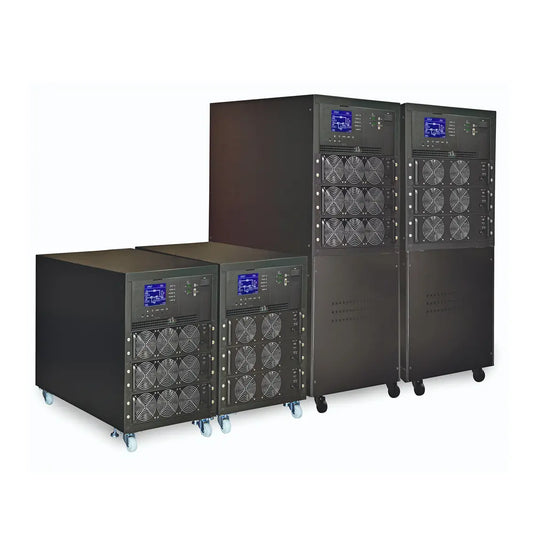

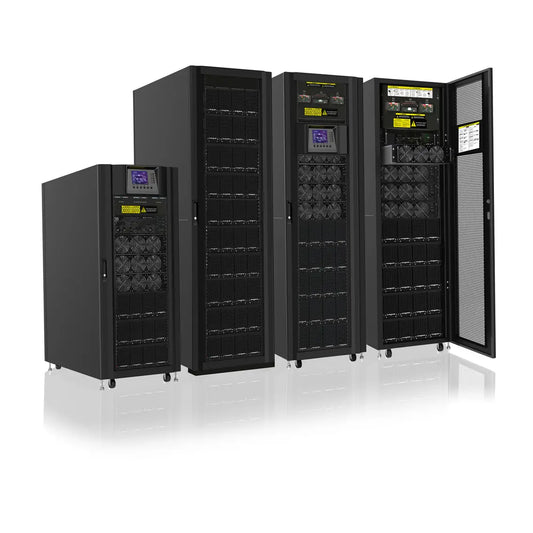

PowerShield Platinum Modular (20-300kW)

The Platinum Modular is PowerShield's premium three phase modular UPS range, designed with Australian conditions and high-end mission-critical requirements in mind. Its hot-swap modular architecture delivers the flexibility, scalability, and redundancy demanded by enterprise data centres, hospitals, military sites, and mining operations.

Key features include:

• Three phase online double-conversion with unity output power factor

• Modular power modules of 20kW or 30kW per slot - add capacity as your business grows

• Hot-swappable power, battery, and static switch modules - no downtime for maintenance or expansion

• High scalability from 20kW to 300kW within a single cabinet

• Up to 94.5% efficiency

• Flexible battery configuration - 32, 36, or 40 battery strings per module (adjustable)

• Adjustable charging current up to 8A per module

• 5.7 inch LCD screen standard, optional 10 inch colour touchscreen

• RS232, USB, and dry contact communications as standard

• Wide input voltage range of 305-478VAC at 100% load

• Input THDi below 3% at full load

• Designed for Australian ambient temperatures up to 40 degrees C

• IP20 protection rating

Available capacities: 20kW, 40kW, 60kW, 80kW, 90kW, 120kW, 180kW, 200kW, 240kW, 300kW

Key Features Across the PowerShield Three Phase Range

• True online double-conversion for zero transfer time on all models

• Unity or near-unity output power factor - maximising real power delivery

• Dual mains input and generator compatibility

• Scalable parallel configurations for N+1 redundancy

• Wide input voltage tolerance for harsh Australian site conditions

• SNMP, Modbus, and remote monitoring options

• Designed and supported locally in Australia

Who Are These Units For?

PowerShield three phase UPS systems are the preferred choice for Australian businesses that need enterprise-grade power protection with local support. Whether you are protecting a server room, a hospital ward, a mining control system, or a telecommunications exchange, the Centurion Pro and Platinum Modular deliver the reliability, efficiency, and scalability your operation demands.

Contact Indigi Power & Cooling for a load assessment and obligation-free quote.
