GMP Cleanroom HVAC, Cold Chain and Critical Power for Australian Pharmaceutical Facilities

A pharmaceutical facility is the only kind of building we work in where the air conditioning is part of the product. In a data centre, an HVAC failure costs you availability. In a Grade B fill suite, it costs you a batch, an investigation, a deviation record and potentially a conversation with the TGA at your next inspection. The plant is the same category of equipment. The consequence of a fault is not remotely the same, and the documentation burden that follows it is an order of magnitude heavier.

That difference is why most general mechanical contractors are a poor fit for GMP work, and why most cleanroom vendors are a poor fit for the power and monitoring side. The published guidance on cleanroom HVAC is dominated by North American and European suppliers writing to FDA and USP expectations. Almost none of it is written to the framework that actually applies in Australia, and almost none of it addresses what happens to your monitoring record when the power drops out.

Indigi Power and Cooling is an Indigenous and Veteran owned critical power and cooling specialist, registered with Supply Nation and ICN Gateway. We work across pharmaceutical manufacturing, compounding pharmacy, wholesale and distribution, on the mechanical plant, the controlled storage and the protected power that keeps both of them, and their records, continuous.

Cleanroom grades, ISO classes and what the HVAC plant actually has to deliver

Australian manufacture of medicines is carried out to the Manufacturing Principles determined by the TGA, which adopt the PIC/S Guide to Good Manufacturing Practice for Medicinal Products, the PE009 series. Annex 1 of that guide covers sterile products and is where the cleanroom grades come from. Confirm which PE009 version applies to your licence, because the guide is revised periodically and the substantially rewritten Annex 1 that took effect internationally in 2023 changed the emphasis toward a documented contamination control strategy rather than a checklist of numbers.

Grades A to D are GMP terms. ISO Class 1 to 9 are classification terms from ISO 14644-1. They are related but they are not the same thing, and the distinction matters when you are writing a specification. A grade is a state the room must hold both at rest and in operation. An ISO class is a particle count measured under defined conditions. The table below sets out how they map and what each one demands of the mechanical plant.

For reference, ISO 14644-1 sets the limit at 0.5 micrometres and above as 3,520 particles per cubic metre for ISO 5, 352,000 for ISO 7 and 3,520,000 for ISO 8. Those three numbers do most of the work in a cleanroom specification, and everything below follows from them.

Differential pressure cascade

Contamination control in a cleanroom suite is fundamentally about making air move in one direction only, from clean to less clean, every time a door opens. The widely applied guidance value is a differential of 10 to 15 Pa between adjacent rooms of different grade, with the cleanest room at the highest pressure. Containment suites reverse this, running the process room negative to protect the operator and the wider facility from a potent or cytotoxic compound, which then requires an airlock arrangement to preserve product protection at the same time.

The practical failure mode is not the design, it is the drift. Pressure cascades degrade quietly as filters load, dampers shift, door seals wear and a room is repurposed without the balance being revisited. Continuous differential pressure monitoring with alarm on excursion is the only reliable defence, and it is the first thing an auditor will ask to see trended.

Air change rates

Be careful here, because a great deal of published material states air change rates as though they are regulated minimums. They are not. The PIC/S guide does not prescribe an air change rate. It requires the room to achieve and hold its grade, and the air change rate is the design output that gets you there. In practice, non-unidirectional Grade C and D rooms are commonly designed around 20 air changes per hour as a starting point, Grade B rooms frequently land somewhere between 40 and 60 or higher, and Grade A is not an air change problem at all because it is unidirectional airflow at a specified velocity.

This distinction has real commercial value. Fan energy rises steeply with air volume, so a facility that has been over-designed on air changes because a consultant applied a rule of thumb is paying for it every hour of every year. The defensible position is a recovery test under ISO 14644-3 that demonstrates the room returns from an in-operation to an at-rest condition within an acceptable clean-up period, commonly taken as 15 to 20 minutes, rather than an air change number asserted without evidence.

HEPA filtration, and the two definitions that get confused

European classified filters under EN 1822 are rated against most penetrating particle size, where H13 achieves 99.95 per cent and H14 achieves 99.995 per cent. Much of the American material you will find online instead quotes 99.97 per cent at 0.3 micrometres, which is a different test basis and a lower bar than H14. Grade A and Grade B applications in a PIC/S environment normally call for H14 terminal filters, installed and then leak tested in position rather than accepted on the manufacturer's certificate. Filter integrity testing at installation and at defined intervals afterwards is part of the qualified state of the room, not an optional extra.

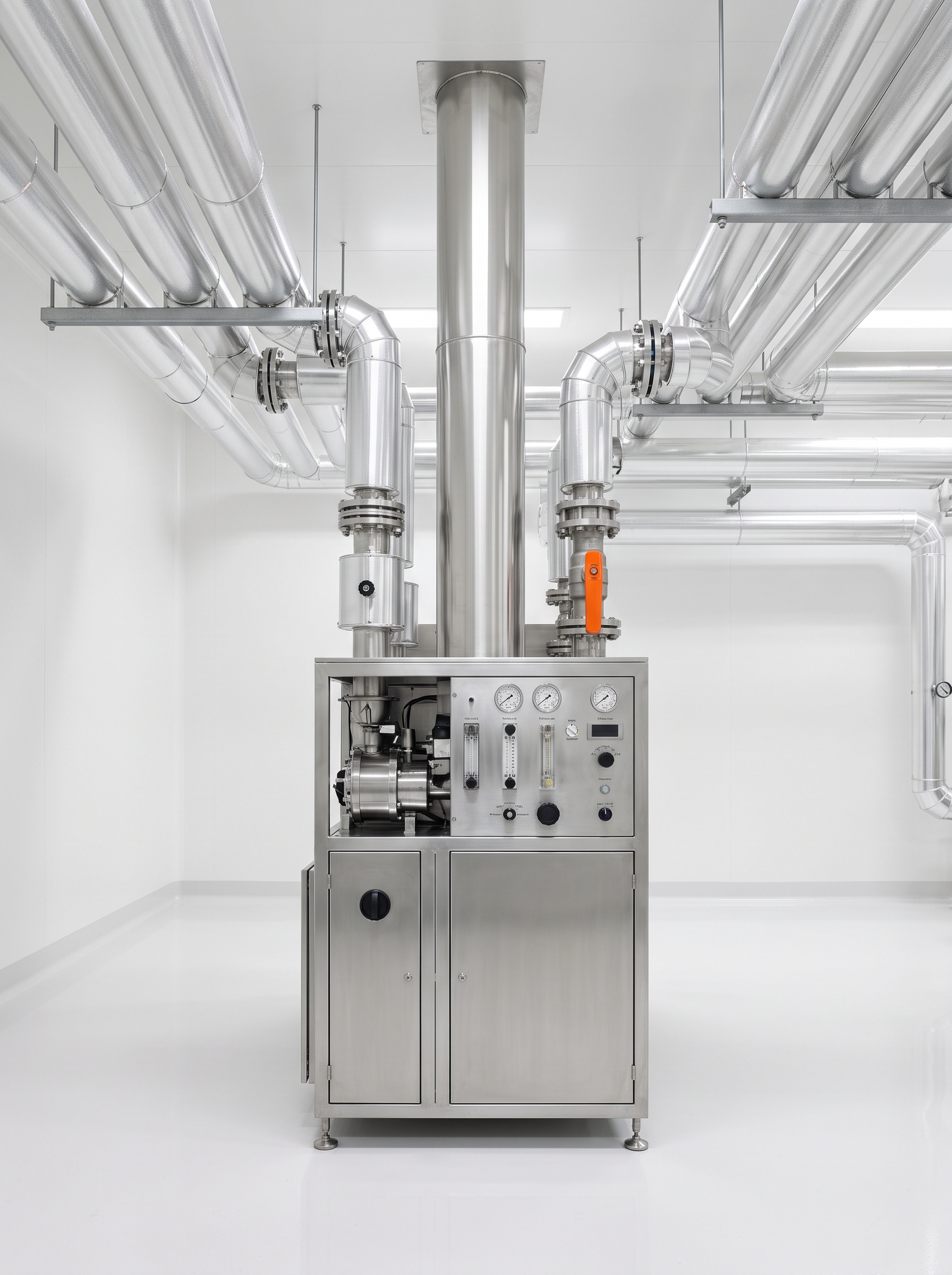

Temperature and humidity

GMP does not set a cleanroom temperature. It requires conditions appropriate to the product and to the comfort of personnel working in full gowning, which in practice puts most suites between 18 and 25 degrees C with relative humidity commonly held between 35 and 60 per cent. The lower humidity bound matters for electrostatic control and powder handling, the upper bound for microbial growth and for products sensitive to moisture uptake. Getting this stable in an Australian summer, particularly in Brisbane or Darwin where latent load dominates, is a dehumidification problem before it is a cooling problem, and equipment selected on sensible capacity alone will disappoint.

Qualification and validation: why a commissioning sheet is not enough

This is the single point that separates GMP mechanical work from ordinary mechanical work, and it is the part almost every cooling supplier skips. In a commercial building, you commission the plant, hand over an O and M manual and issue a certificate. In a GMP facility, that same plant has to be qualified, and qualification is a documented, pre-approved, evidence-based exercise carried out against acceptance criteria that were written down before anyone turned the system on. Annex 15 of the PIC/S guide sets the expectation. If your precision cooling or controlled storage plant has a commissioning sheet and no qualification package, you have a gap that will be found.

URS, DQ and IQ

It starts before procurement. A user requirement specification states what the system must do in terms that can later be tested. Design qualification demonstrates that the proposed design satisfies that specification. Installation qualification then verifies that what was actually installed matches the approved design: correct model and serial numbers, correct refrigerant charge, pipework and drainage as drawn, filters of the specified grade in the specified positions, instruments present and calibrated with certificates traceable to national standards, drawings and manuals available. IQ is where most retrofit projects fall over, because the as-built rarely matches the as-designed and nobody wrote down the difference at the time.

Operational qualification

OQ proves the system operates across its intended range. For a cleanroom air handling system that means airflow volumes and velocities, room pressure differentials against the cascade design, filter integrity by in-place leak test, particle counts to classify the room under ISO 14644-1, recovery time, airflow visualisation where a Grade A zone is involved, and the behaviour of every alarm and interlock including what happens on a fan failure or a door held open. For a controlled temperature store it means demonstrating the setpoint is held across the empty enclosure and that alarms trigger at the configured thresholds.

Performance qualification and requalification

PQ demonstrates sustained performance under real conditions, loaded and with people working, over a defined period rather than at a single moment. A cold room that holds 5 degrees C empty on a mild day has proven very little. A cold room that holds 2 to 8 degrees C at full stock with doors cycling through a Queensland February has proven something worth documenting. Requalification then keeps the state current. Periodic requalification intervals are risk based and set by the facility, though a common pattern is six monthly for Grade A and B areas and annually for Grade C and D, with additional requalification triggered by any significant change to the plant, the layout or the process under change control.

Cold chain, temperature mapping and continuous monitoring

Manufacturing gets the attention, but for most Australian pharmaceutical businesses the higher-frequency risk sits in storage and distribution. Refrigerated product held at 2 to 8 degrees C, frozen product at around minus 20 degrees C, and an increasing volume of biologics and cell therapy material at ultra-cold temperatures, all of which have to be held continuously and provably.

Temperature mapping

A single sensor on a wall tells you the temperature at that sensor. Temperature mapping tells you the temperature everywhere the product might sit, which is the question that actually matters. The exercise places a calibrated sensor grid throughout the empty and then the loaded space, records continuously for a defined period, and identifies the hot and cold spots, the effect of door openings, the recovery profile after a defrost cycle and the behaviour under a simulated power loss.

Common practice, drawing on WHO guidance widely applied by Australian sites, is a minimum of 72 hours of continuous logging, mapping in both summer and winter conditions because Australian ambient swings are wide, and remapping after any significant change to the racking, the plant, the load pattern or the building. The output is not a certificate, it is a decision: where the permanent monitoring sensors go. Placing a monitoring probe anywhere other than a mapped worst case makes the entire monitoring system decorative.

Continuous monitoring and alarm escalation

Continuous monitoring is only useful if somebody acts on it. A monitoring system that emails an unmonitored inbox at 2am on a Saturday has satisfied a procedure and protected nothing. A defensible design has thresholds set inside the product specification rather than at it, so there is time to respond, and an escalation chain with named roles, defined response times and an automatic step to the next person when the first does not acknowledge. It also has a power supply and a communications path that survive the failure being reported, because the most likely cause of a temperature alarm is the same event that just took the monitoring system offline.

What an excursion actually costs

An out-of-range event is not a maintenance issue, it is a quality event. The stock is quarantined, an investigation is opened, the excursion is assessed against stability data and the manufacturer's mean kinetic temperature position, and product is either released with justification or written off. The investigation consumes quality resource regardless of the outcome, repeat excursions attract attention at inspection, and for vaccines the Australian National Vaccine Storage Guidelines set a clear expectation of purpose-built refrigeration and disciplined temperature recording. The cost of the refrigeration and power engineering that prevents excursions is almost always smaller than the cost of one serious one.

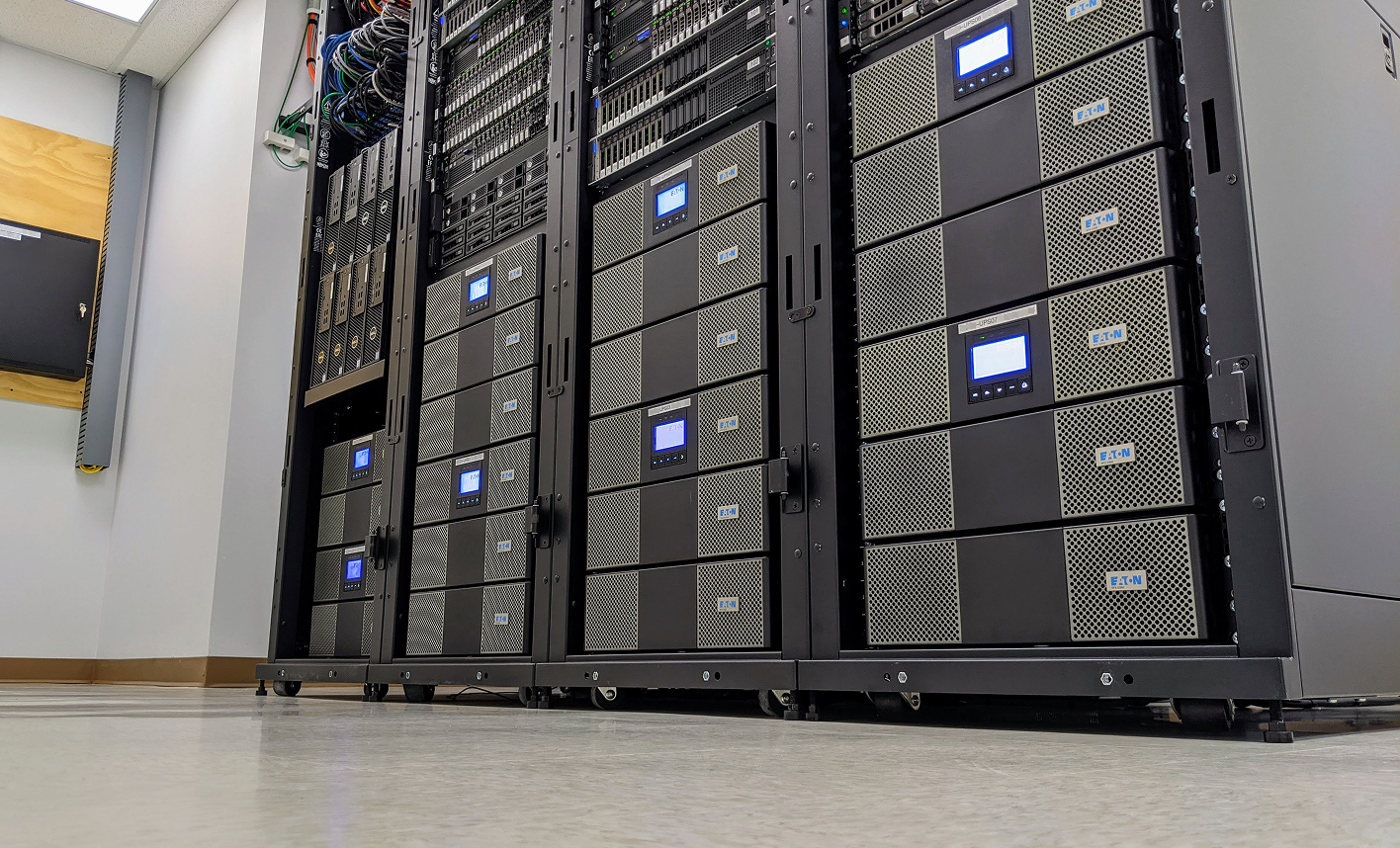

Why UPS matters differently in a GMP facility

In most industries a UPS buys uptime. In a GMP facility it also protects the record, and that second function is the one that decides whether a batch survives.

What has to be on protected power

The obvious answer is the refrigeration, and generators usually cover that. The less obvious and more important answer is everything that produces or carries the record: the monitoring loggers and gateways, the building management system and environmental monitoring system servers, the network switches and any communications path they depend on, the pressure and particle sensors in classified areas, and the access control that evidences who entered a cleanroom and when. These are small loads, which is exactly why they get overlooked in an electrical design that was sized around the mechanical plant. A generator with a 10 to 20 second start delay is not protection for a data logger. The logger needs a UPS in front of it, sized so that it also rides through the transfer back.

Redundancy and N+1

N+1 on cleanroom air handling units and on chillers is normal practice in GMP facilities, and for a straightforward reason. A cleanroom that loses its air handling unit does not simply get warm, it loses its grade, its pressure cascade and its qualified state, and returning it to service means recovery, requalification and an assessment of anything that was exposed in the interim. The redundant unit is not there to avoid discomfort, it is there to avoid a requalification event. The same logic applies to controlled storage, where two smaller independent refrigeration systems will nearly always serve a critical cold room better than one large one, even where the single unit is nominally more efficient.

The Australian compliance layer

Alongside the GMP framework, ordinary Australian obligations still apply to the plant. Electrical installation and switchboard work is carried out to AS/NZS 3000. Refrigerant handling requires ARCtick licensing under the Ozone Protection and Synthetic Greenhouse Gas Management Regulations, and refrigerant logs are increasingly asked for during audits alongside the maintenance record. Air handling system hygiene, including coil and drain pan condition, filter management and the microbial risk in humidification and cooling tower systems, falls under AS/NZS 3666, which is directly relevant given that an air handling unit serving a cleanroom is both a contamination control device and a potential contamination source. Note that AS/NZS 3003, which covers electrical installations in patient care areas, applies to clinical settings rather than to pharmaceutical manufacturing, and we do not cite it on a manufacturing site simply because it sounds adjacent.

What Indigi does for pharmaceutical facilities

Indicative pricing for cooling design and installation runs from $8,000 to $15,000 for small rooms, $25,000 to $45,000 for medium installations and $45,000 to $60,000 plus for large projects. Cleanroom and cold chain projects are quoted individually, because the filtration, controls, redundancy and documentation scope dominate the cost rather than the tonnage of cooling. UPS maintenance starts at $720 ex GST for a one-off visit or $1,940 per year ex GST for a standard annual plan. Single-phase UPS installation starts from $850 up to 3kVA, $1,250 for 3 to 10kVA and $1,800 for 10 to 20kVA. Three-phase installation starts from $3,200 for small systems and $6,500 for medium systems.

Frequently asked questions

What are cleanroom HVAC systems?

A cleanroom HVAC system is an air handling system designed to control airborne particle concentration, differential pressure, temperature and humidity to a defined and provable standard, rather than simply to make a space comfortable. It supplies air through HEPA filtration, delivers a much higher air volume than a comfort system, maintains a pressure cascade between rooms of different cleanliness, and is monitored continuously. In an Australian pharmaceutical facility it also has to be qualified and requalified as part of the GMP framework, which a comfort system never is.

What are the requirements for HVAC in cleanrooms?

The room must achieve and hold its assigned grade both at rest and in operation, which for medicines manufactured in Australia is set by the PIC/S Guide to GMP adopted by the TGA and classified under ISO 14644-1. In practice that means HEPA filtration appropriate to the grade, commonly H14 for Grade A and B, a differential pressure guidance value of 10 to 15 Pa between adjacent rooms of different grade, unidirectional airflow at 0.36 to 0.54 m/s for Grade A, sufficient air changes to achieve the required recovery, controlled temperature and humidity, and continuous monitoring with alarms. All of it has to be documented through qualification rather than asserted.

How to design HVAC for cleanrooms?

Start from the process and the product, not from the plant. Establish the grade each room needs, map the flow of people, materials and waste to set the pressure cascade and airlock arrangement, then calculate the heat and moisture load including operators in full gowning, process equipment and lighting. Size the air handling and filtration to achieve the classification and an acceptable recovery time, decide the redundancy position, usually N+1 on air handling units and chillers, and specify the monitoring and alarm strategy at the same time rather than afterwards. Write the acceptance criteria before procurement so the system can be qualified against them.

What is the difference between IQ, OQ, and PQ?

Installation qualification verifies that the system installed matches the approved design, covering models, serial numbers, pipework, filter grades and calibrated instrumentation. Operational qualification proves the system performs across its intended operating range, covering airflows, pressure differentials, filter integrity, particle counts, recovery time and alarm function. Performance qualification demonstrates that it sustains that performance under real production conditions, loaded and occupied, over a defined period. IQ asks whether it is the right equipment, OQ asks whether it works, PQ asks whether it keeps working in service.

Why is cleanroom qualification important?

Because in a GMP environment the evidence is the deliverable. A cleanroom that performs well but has no documented qualification cannot be shown to have performed well, and product made in it is difficult to defend at inspection or during a recall investigation. Qualification also establishes the baseline against which drift is detected, so that a change in pressure differential or recovery time can be recognised as a deviation rather than accepted as normal. It is the difference between knowing your plant is compliant and being able to prove it.

How often should cleanroom qualifications be performed?

Requalification intervals are risk based and set by the facility in its validation master plan rather than fixed by a single rule, so this varies by site and by licence. A common pattern is six monthly requalification for Grade A and Grade B areas and annually for Grade C and Grade D, with routine monitoring continuing between those points. Requalification is also triggered by event rather than by calendar, including any significant change to the air handling plant, the room layout, the process or the classification, and following remedial work after a failure. Confirm your own intervals against your quality system and the PE009 version applicable to your licence.

What are the cold chain equipment requirements?

Purpose-built refrigeration rather than domestic units, held at 2 to 8 degrees C for refrigerated product or around minus 20 degrees C for frozen, with calibrated continuous monitoring, a defined alarm threshold set inside the product specification, and an escalation path that reaches a person who can act at any hour. The equipment needs redundancy proportional to the value and criticality of the stock, backup power that covers both the refrigeration and the monitoring, a temperature mapping study that justifies where the permanent sensors sit, and a documented recovery position for what happens after a failure. For vaccines the Australian National Vaccine Storage Guidelines set additional expectations on equipment type and recording.
