Eaton single phase UPS systems cover 700VA to 15kVA across four series: the 5PX line-interactive, 9SX double-conversion tower, 9PX flagship double-conversion rack and tower, and 9155 enterprise single phase. Indigi Power and Cooling supplies, installs and maintains the full Eaton single phase range across Australia for data centres, server rooms, healthcare, telecommunications and industrial applications.
The Eaton single phase UPS range is one of the most widely deployed in Australian data centres, hospitals, government facilities and telecommunications infrastructure. Eaton's focus on efficiency, battery longevity through ABM technology, HotSync paralleling for redundancy, and cybersecurity-grade network management consistently differentiates the range from comparable APC and Vertiv products at equivalent capacity points.
As an Eaton specialist and an Indigenous and Veteran-owned critical power provider, Supply Nation and ICN Gateway registered, Indigi Power and Cooling provides the full Eaton single phase lifecycle: load assessment, supply, installation, commissioning, network card configuration, preventative maintenance and battery replacement. Contact us on 1800 046 344 or at admin@indigipc.com.au.
Line-Interactive vs Double-Conversion UPS
Before selecting an Eaton single phase model, the first decision is topology. The Eaton range includes both line-interactive (5PX) and double-conversion online (9SX, 9PX, 9155) systems, which serve fundamentally different protection needs.
| Topology |
Transfer Time |
Eaton Model |
Best For |
| Line-interactive |
2 to 6 ms |
5PX (1.5 to 3kVA) |
IT closets, network devices, workstations on stable mains supply |
| Online double-conversion |
Zero |
9SX, 9PX, 9155 |
Servers, medical equipment, telecoms, any load that cannot tolerate interruption |

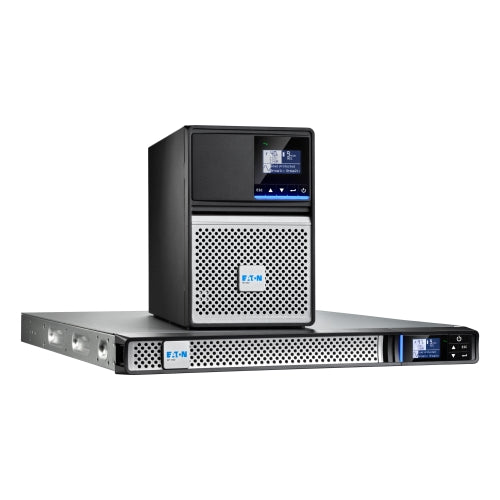

Eaton 5PX -- Line-Interactive UPS, 1.5kVA to 3kVA
The Eaton 5PX is a high-efficiency line-interactive UPS for IT closets and small server rooms. The 5PX is Energy Star qualified and achieves up to 99% efficiency in line mode, making it the right choice where maximum energy efficiency in normal operation is a priority and the brief transfer time of line-interactive topology is acceptable.
Key 5PX features:
- Up to 99% efficiency in line mode -- lowest operating cost in the Eaton single phase range
- Pure sine wave output on battery -- safe for all modern server power supplies
- ABM battery management extending service life by up to 50%
- Two switched outlet groups for load management and selective shutdown
- Network management card slot for SNMP remote monitoring
Australian 5PX models:
- 5PX1500iRTN -- 1500VA / 1350W, 2U rack
- 5PX2200iRTN -- 2200VA / 1980W, 2U rack
- 5PX3000iRTN -- 3000VA / 2700W, 2U rack

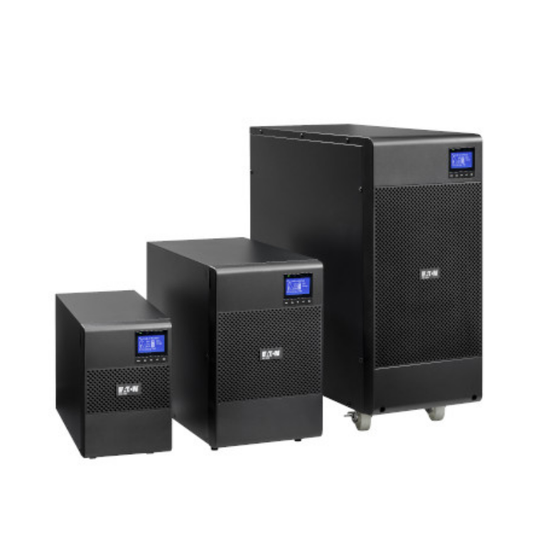

Eaton 9SX -- Double-Conversion Online Tower, 700VA to 3kVA
The Eaton 9SX is a compact double-conversion online UPS for tower installations in server rooms, medical facilities, light industrial environments and network infrastructure. Zero transfer time and continuous power conditioning protect connected equipment from all categories of power disturbance. The 9SX delivers up to 28% more usable wattage than traditional UPS systems at equivalent VA ratings with a 0.9 power factor, and carries a 3-year warranty including batteries.
Australian 9SX models:
- 9SX700I -- 700VA / 630W, tower
- 9SX1000I -- 1000VA / 900W, tower
- 9SX1500I -- 1500VA / 1350W, tower
- 9SX2000I -- 2000VA / 1800W, tower
- 9SX3000I -- 3000VA / 2700W, tower
For the 15kVA and 20kVA 9SX models with configurable single or three phase input, see the Eaton 9SX AP UPS page.

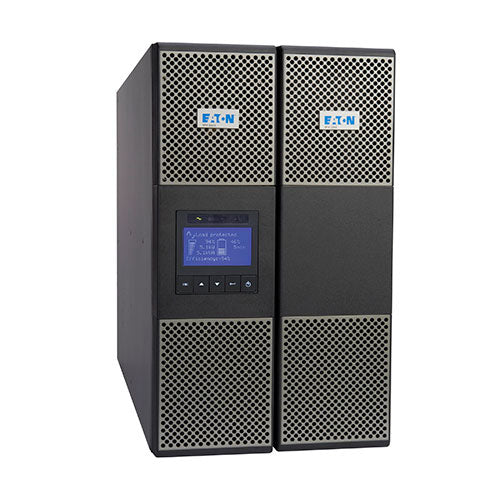

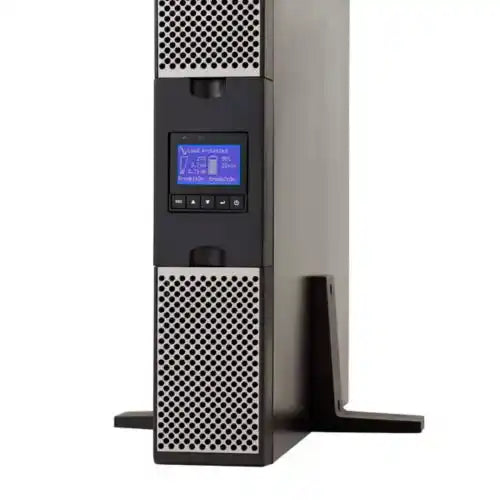

Eaton 9PX -- Flagship Double-Conversion, 700VA to 11kVA
The Eaton 9PX is the flagship single phase double-conversion UPS in the Eaton range and one of the most capable single phase UPS systems available in Australia. It is the recommended choice for data centre rack protection, server rooms and any mission-critical IT infrastructure where efficiency, scalability and network management matter.
Why the 9PX leads the single phase market: up to 95% efficiency in double-conversion mode via a 3-level inverter -- 4 percentage points above the 91% typical of comparable APC and Vertiv products. Self-powered bypass ensures bypass continuity even if main UPS electronics fail. HotSync allows two units to parallel for N+1 redundancy without additional switchgear. The Eaton Gigabit Network Card is the first UPS network card compliant with both UL and IEC cybersecurity standards.
Key 9PX models (Australian market, 230V):
- 9PX1000IRTN -- 1000VA / 1000W, 2U rack and tower
- 9PX1500IRTN -- 1500VA / 1500W, 2U rack and tower
- 9PX2200IRTN -- 2200VA / 2200W, 2U rack and tower
- 9PX3000IRTN -- 3000VA / 3000W, 2U rack and tower
- 9PX5KiRTN -- 5000VA / 4500W, 3U rack and tower
- 9PX6KiRTN -- 6000VA / 5400W, 3U rack and tower
- 9PX8KiRTNBP -- 8000VA / 7200W, 6U rack and tower
- 9PX11KiRTNBP -- 11000VA / 10000W, 6U rack and tower

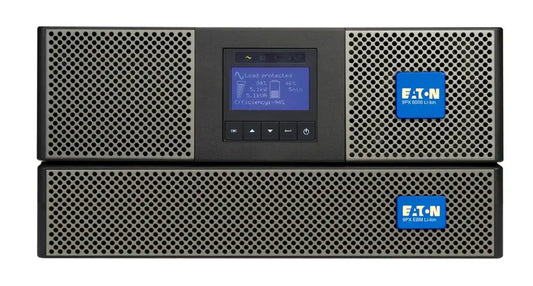

External battery modules (EBMs) for runtime extension:
- EBM48VRT2U, EBM72VRT2U, EBM96VRT2U, EBM240VRT3U
- Up to 4 EBMs supported per UPS for maximum runtime scalability

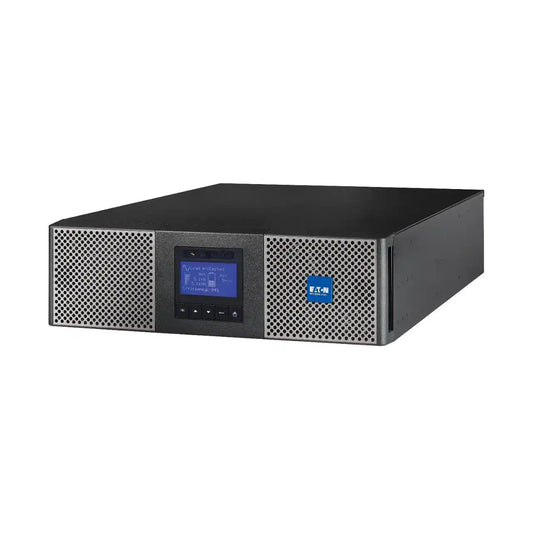

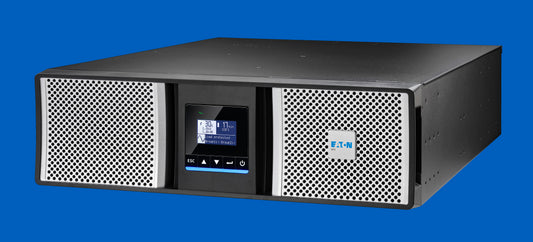

Eaton 9PX G2 -- Lithium-Ion Double-Conversion
The Eaton 9PX G2 is the latest generation of the 9PX, available with LiFePO4 lithium-ion batteries that replace standard VRLA lead-acid. The 9PX G2 lithium-ion models are available from 1500VA to 6kVA and are the recommended choice for deployments where battery service life, weight and total cost of ownership over a 10-year period matter.
Eaton 9PX lithium-ion advantages over lead-acid:
-
5-year battery warranty versus 2 years for VRLA lead-acid models
-
Approximately twice the service life -- typically 8 to 10 years versus 4 to 5 years for VRLA in Australian conditions
-
40% lighter -- important for high-density rack installations
-
LiFePO4 chemistry -- does not generate oxygen during thermal events, eliminating the ignition risk of some other lithium-ion chemistries
- Fewer battery replacement cycles over the UPS lifetime, reducing total maintenance cost
Eaton 9PX G2 lithium-ion models:
- 9PX1500RTLION -- 1500VA / 1500W
- 9PX2200RTLION -- 2200VA / 2200W
- 9PX3000RTLION -- 3000VA / 3000W
- 9PX6KiRTLION -- 6000VA / 5400W
Eaton 9155 -- Enterprise Single Phase, 8kVA to 15kVA
The Eaton 9155 is the enterprise-grade single phase double-conversion UPS for environments exceeding the 9PX 11kVA capacity limit. It supports HotSync paralleling for N+1 or 2N redundancy, optional maintenance bypass switch, network and relay communications cards, and integration with Eaton Intelligent Power Manager for centralised multi-site management. Available in 8, 10, 12 and 15kVA tower form factor.
The 9155 is suited to larger server rooms, telecommunications infrastructure and enterprise environments where the 9PX reaches its 11kVA single-unit limit. For loads above 20kVA requiring configurable phase input, see the Eaton 9SX AP. For three-phase requirements, see the Eaton three phase UPS range.
Eaton Single Phase UPS Comparison
| Series |
Topology |
Capacity |
Efficiency |
Battery Options |
Choose If |
| 5PX |
Line-interactive |
1.5 to 3kVA |
Up to 99% (line) |
Lead-acid VRLA |
Maximum efficiency is priority, mains is generally stable |
| 9SX |
Double-conversion |
700VA to 3kVA |
Standard online |
Lead-acid VRLA |
Tower form needed, zero transfer time required, budget is a consideration |
| 9PX |
Double-conversion |
700VA to 11kVA |
Up to 95% (online) |
Lead-acid or LiFePO4 |
Best-in-class efficiency, scalable runtime, N+1 redundancy, cybersecurity compliance needed |
| 9PX G2 Li-Ion |
Double-conversion |
1.5 to 6kVA |
Up to 95% (online) |
LiFePO4, 5-year warranty |
Longest battery life, lowest TCO, lightest weight, 10-year deployment planned |
| 9155 |
Double-conversion |
8 to 15kVA |
Standard online |
Lead-acid VRLA |
Single-phase load above 11kVA, enterprise redundancy required |
Eaton ABM Battery Technology
Eaton's Advanced Battery Management (ABM) is a key differentiator across the 5PX, 9SX and 9PX ranges. Standard UPS systems use constant-voltage float charging, which keeps batteries continuously under charge voltage stress and accelerates degradation. ABM uses a three-stage charging cycle: charge, rest and qualify.
The rest phase reduces the time the battery spends under charge voltage stress, extending VRLA service life by up to 50% compared to conventional charging. In practical terms, Eaton battery replacement intervals are typically 4 to 5 years rather than the 3 to 4 years common with competitor products. Over a 10-year installation this difference eliminates at least one full battery replacement cycle, reducing total maintenance cost substantially.
ABM is standard across all 5PX, 9SX and 9PX models. For Eaton lithium-ion battery options, the 9PX G2 LiFePO4 models extend service life further to approximately 8 to 10 years with a 5-year warranty.
Eaton Single Phase UPS by Application
| Application |
Recommended Model |
Reason |
| IT closet, compact rack |
5PX 1.5 to 3kVA |
Up to 99% efficiency, compact 2U rack, pure sine wave on battery |
| Server room and data centre rack |
9PX 1 to 11kVA |
95% efficient, zero transfer time, scalable EBM runtime, HotSync redundancy |
| Healthcare and medical equipment |
9PX or 9SX double-conversion |
Zero transfer time for imaging, theatre equipment and patient monitoring |
| Telecommunications and network racks |
5PX or 9PX |
SNMP Gigabit Network Card, Intelligent Power Manager for multi-site management |
| Industrial and SCADA environments |
9PX or 9155 double-conversion |
Wide input voltage range, continuous conditioning, generator-compatible |
| Remote and edge sites |
9PX with EBMs or 9PX G2 Li-Ion |
Extended runtime, minimum maintenance intervals, lithium-ion reduces replacement frequency |
Eaton Single Phase UPS Supply and Service Locations
Indigi Power and Cooling supplies and maintains the full Eaton single phase UPS range from three national service hubs across Australia:
Brisbane CBD, Woolloongabba, Eight Mile Plains, Port of Brisbane, Gold Coast, Sunshine Coast, Ipswich, Townsville, Cairns, regional QLD
Eaton single phase UPS supply, installation and maintenance across Southeast QLD and regional Queensland. Battery testing before summer recommended for all sites.
Sydney CBD, Parramatta, North Ryde, Macquarie Park, Western Sydney, Newcastle, Wollongong, Canberra (ACT)
Eaton 9PX and 5PX supply and service for Sydney data centre precincts, government, healthcare and enterprise infrastructure across NSW and ACT.
Melbourne CBD, Port Melbourne, Docklands, Dandenong, Tullamarine, Geelong, Ballarat, regional Victoria
Eaton UPS supply and service for Melbourne data centre corridor, healthcare, financial services and government across VIC.
Perth, Adelaide, Darwin and NT
Perth CBD, Fremantle, Kalgoorlie, Pilbara; Adelaide CBD, regional SA; Darwin, Alice Springs, remote NT sites
Serviced from our three national hubs. Eaton 9PX G2 lithium-ion models are recommended for WA and NT sites where extreme summer temperatures reduce VRLA battery life significantly.
Papua New Guinea and Pacific Islands: Indigi Power and Cooling supplies and maintains Eaton UPS systems in PNG and across the Pacific. Contact us to discuss logistics and lead times.
Eaton Single Phase UPS FAQs
What is the best Eaton single phase UPS for a server room?
The Eaton 9PX is the recommended choice for most Australian server rooms. It delivers zero transfer time double-conversion protection, up to 95% efficiency, HotSync N+1 paralleling, and cybersecurity-compliant SNMP management. For loads above 11kVA, the 9155 (8 to 15kVA) is the enterprise single phase option.
What is the difference between line-interactive and double-conversion UPS?
A line-interactive UPS (5PX) has a 2 to 6ms transfer time to battery on mains loss and corrects minor voltage variations with an AVR. A double-conversion online UPS (9SX, 9PX, 9155) regenerates the output continuously from the inverter with zero transfer time, providing complete isolation from all power quality events. Double-conversion is required for servers, medical equipment and any load that cannot tolerate a momentary interruption.
Does the Eaton 9PX come with a lithium-ion battery?
Yes. The Eaton 9PX G2 is available with LiFePO4 lithium-ion batteries in models from 1500VA to 6kVA. Lithium-ion models carry a 5-year battery warranty, last approximately twice as long as VRLA, are 40% lighter, and use a safer chemistry. Available models: 9PX1500RTLION, 9PX2200RTLION, 9PX3000RTLION and 9PX6KiRTLION.
Why does my Eaton UPS keep beeping?
Common causes: the UPS is running on battery (mains lost or degraded), a battery end-of-life warning, an overload, a battery self-test, or a network card fault. A continuous beep means the UPS is on battery. A repeating short beep usually indicates a battery fault. Check the LCD display for the alarm code. See our Eaton UPS fault codes and troubleshooting guide or call 1800 046 344.
What does Eaton ABM battery management do?
Eaton ABM uses a three-stage charge, rest and qualify cycle instead of constant-voltage float charging. The rest phase reduces battery stress and extends VRLA service life by up to 50%. In practice this shifts replacement intervals from 3 to 4 years (competitor standard) to 4 to 5 years, eliminating a battery replacement cycle over a 10-year installation.
Can two Eaton 9PX units be connected in parallel for redundancy?
Yes. The Eaton 9PX includes HotSync paralleling, allowing two units to operate in parallel for N+1 redundancy or doubled capacity without additional output switchgear or software licensing. This is a built-in feature that most competitor products in this range require additional hardware to achieve.
Is the Eaton 9PX available in Australia with installation?
Yes. Indigi Power and Cooling supplies the full Eaton single phase UPS range across Australia with installation, commissioning and maintenance services. Contact us on 1800 046 344 or see our single phase UPS installation page for details.
|
