Eaton UPS Systems Australia
Eaton is one of the most widely deployed UPS brands in Australian data centres, hospitals, government facilities, telecommunications infrastructure and industrial environments. The Eaton UPS range covers every application from a 700VA IT closet unit to a 1.1MVA three-phase data centre system. Indigi Power and Cooling supplies, installs, commissions and maintains the full Eaton UPS range across Australia including Queensland, New South Wales, Victoria and Papua New Guinea.
As an Eaton specialist and an Indigenous and Veteran-owned critical power provider, Supply Nation and ICN Gateway registered, Indigi Power and Cooling provides the full Eaton UPS lifecycle from site assessment and sizing through to installation, commissioning, network card configuration, scheduled preventative maintenance and battery replacement. We hold stock across the core Eaton single-phase range and can source the full three-phase range for Australian delivery.
Contact our team on 1800 046 344 or at admin@indigipc.com.au with your load in kW, preferred runtime and site power details to receive a specification and quote.
Why Eaton UPS Systems
Eaton UPS systems are built around core technologies that consistently differentiate them in the Australian market. For buyers comparing Eaton against APC by Schneider Electric, the key differences are efficiency, battery management, paralleling architecture and cybersecurity compliance.
Table: Eaton UPS differentiating technologies
| Technology |
What It Does |
Benefit |
| ABM (Advanced Battery Management) |
Three-stage battery charging cycle instead of conventional constant-voltage float charging |
Extends battery service life by up to 50 percent, reducing replacement frequency and total cost of ownership |
| HotSync Paralleling |
Patented technology allowing multiple UPS units to operate in parallel for N+1 redundancy or increased capacity |
No additional output switchgear or software licensing required for redundancy. Available on 9PX, 9PXM, 9155, 9355 and 93PM. |
| 3-Level Inverter (9PX) |
Advanced inverter topology achieving up to 95% efficiency in double-conversion mode |
4 percentage points above the typical 91% competitor efficiency. Measurable electricity cost saving at scale. |
| Self-Powered Bypass (9PX, 9SX) |
Independent power supply for bypass, separate from main UPS electronics |
Bypass remains operational even if main UPS electronics or CPU fail. Most competitors in this range do not include this. |
| Gigabit Network Card |
First UPS network card compliant with both UL and IEC cybersecurity standards |
Required for government, healthcare and enterprise deployments with security procurement requirements. SNMP, Modbus, HTTPS. |
| LiFePO4 Lithium-Ion (9PX G2, 93PM) |
Lithium iron phosphate batteries replacing VRLA lead-acid |
Twice the service life of VRLA, 40 percent smaller footprint, 5-year warranty. LiFePO4 does not generate oxygen during thermal events. |
What is double-conversion online UPS? A double-conversion UPS (also called VFI -- Voltage and Frequency Independent) completely regenerates the output power from the battery inverter at all times. Connected equipment always runs on clean inverter power with zero transfer time during any mains disturbance. All Eaton 9E, 9SX, 9PX, 9PXM, 9155, 9355, 93PM and 9395 models are double-conversion online.
Eaton Single Phase UPS Range
Eaton single-phase UPS systems cover 700VA to 20kVA, serving IT closets, server rooms, medical devices, retail POS systems, telecommunications cabinets and edge compute environments.

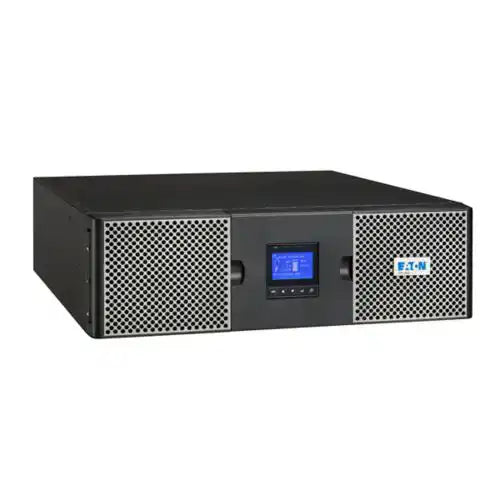

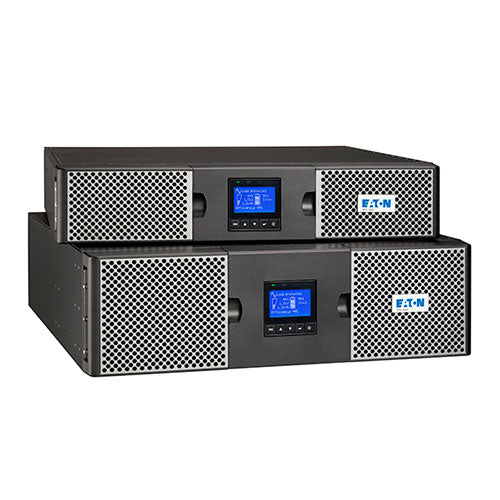

The Eaton 9PX is Eaton's flagship single-phase double-conversion UPS and one of the most capable systems in its class globally. Key features include up to 95% efficiency in online mode via a 3-level inverter, self-powered bypass, HotSync paralleling for N+1 redundancy without additional switchgear, up to 4 external battery modules for extended runtime, and the Eaton Gigabit Network Card for cybersecurity-compliant remote management via SNMP, Modbus and HTTPS.
Key 9PX models (230V ANZ):
- 9PX1000IRTN to 9PX3000IRTN -- 1kVA to 3kVA, 2U rack and tower
- 9PX5KiRTN to 9PX6KiRTN -- 5 to 6kVA, 3U rack and tower
- 9PX8KiRTNBP to 9PX11KiRTNBP -- 8 to 11kVA, 6U rack and tower
- Lithium-ion G2 models: 9PX1500RTLION to 9PX6KiRTLION -- LiFePO4, 5-year battery warranty
View Eaton 9PX range | Eaton 9PX fault codes and troubleshooting guide

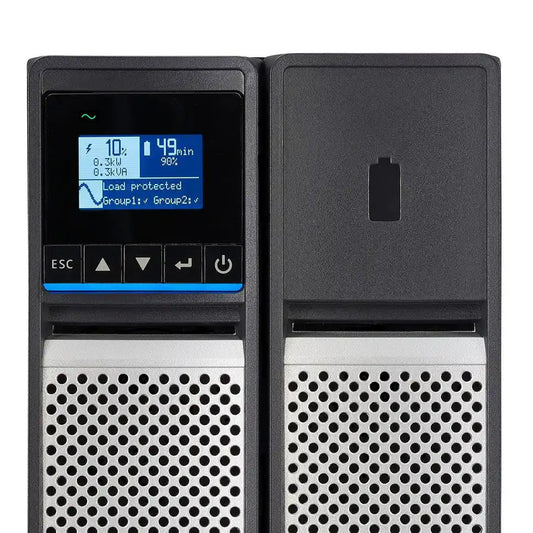

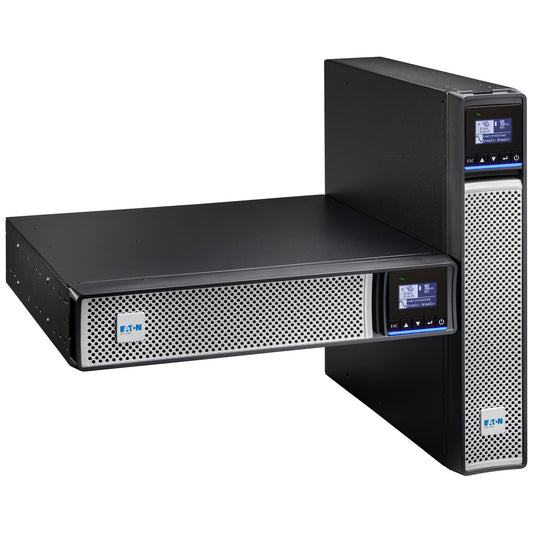

Eaton 5PX -- High-Efficiency Line-Interactive, 1.5kVA to 3kVA
The Eaton 5PX is an Energy Star qualified line-interactive UPS for IT closets and small server rooms. Up to 99% efficiency in line mode, ABM battery management, two switched outlet groups for selective load shedding, pure sine wave output on battery, and a 2U rack mount form factor. Models: 5PX1500iRTN, 5PX2200iRTN, 5PX3000iRTN. View Eaton 5PX
Eaton 9SX -- Compact Double-Conversion Tower, 700VA to 3kVA
The Eaton 9SX is a compact double-conversion online tower UPS delivering up to 28% more usable wattage than traditional UPS systems at equivalent VA ratings. LCD display with alarm history and energy logging, external battery module compatibility and ABM battery management. Models: 9SX700I, 9SX1000I, 9SX1500I, 9SX2000I, 9SX3000I. 3-year warranty. View Eaton 9SX

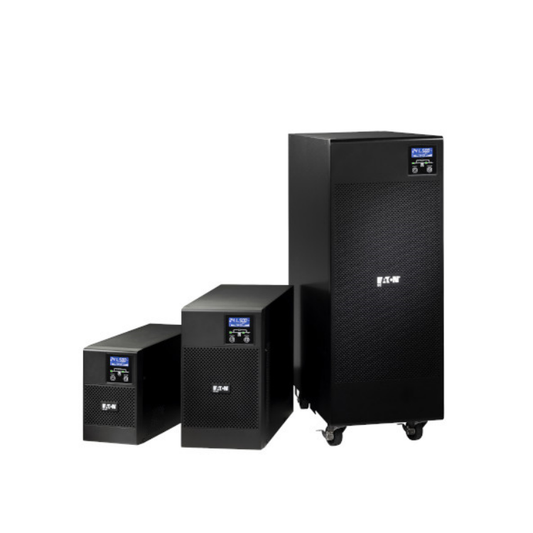

Eaton 9E -- Entry-Level Double-Conversion, 1kVA to 20kVA
The Eaton 9E is an online double-conversion UPS at an accessible price point for industrial, medical, IT and telecommunications applications. Available in tower form from 1kVA to 20kVA with IEC or hardwired input connections and extended battery modules. Australian-stocked models include 9E1000IAU (1kVA), 9E2000IAU (2kVA), 9E3000IAU (3kVA), 9E6KI (6kVA), 9E10KI (10kVA), 9E15KI (15kVA) and 9E20KI (20kVA).
Eaton 9PXM -- Modular Double-Conversion, 4kVA to 20kVA
The Eaton 9PXM is a modular rack and tower UPS where individual 4kVA power modules and battery modules are plug-and-play replaceable without powering down connected loads. Capacity scales from 4kVA to 20kVA by adding power modules in the same chassis. Ideal for growing IT environments, mission-critical retail, banking and call centre applications where scalability and serviceability are priorities.
Eaton 9155 -- Enterprise Single Phase, 8kVA to 15kVA
The Eaton 9155 provides high-capacity single-phase double-conversion protection for environments that exceed the 9PX range. Supports HotSync paralleling for N+1 redundancy, optional maintenance bypass switch, network and relay communication cards, and integration with Eaton Intelligent Power Manager for multi-site management. Range: 8, 10, 12 and 15kVA.
Eaton Three Phase UPS Range
Eaton three-phase UPS systems cover 10kVA to 1.1MVA for data centres, healthcare facilities, industrial sites and critical national infrastructure.
Eaton 9355 (formerly Powerware 9355) -- Three Phase Compact, 10kVA to 80kVA
The Eaton 9355 is a three-phase double-conversion UPS in a compact footprint up to 75% smaller than comparable systems. Internal batteries, integrated power distribution module and maintenance bypass switch are included as standard. HotSync paralleling allows up to four units to be combined for redundancy or capacity without additional switchgear. Suited to small and medium data centres, communications rooms and enterprise server rooms. Range: 10kVA to 80kVA (3:3 phase).
The Eaton 93PM is the primary three-phase UPS solution for modern Australian data centres. It combines modular architecture with lithium-ion battery compatibility (LiFePO4), front-to-back or front-to-top ventilation for deployment flexibility, and a comprehensive ecosystem of accessories including maintenance bypass, distribution cabinets, and parallel tie cabinets. Compatible with lithium-ion batteries that are 40% smaller than VRLA alternatives and carry twice the service life, reducing replacement costs and battery room footprint over a 10-year deployment. Range: 25kVA to 1.1MVA. View Eaton 93PM range

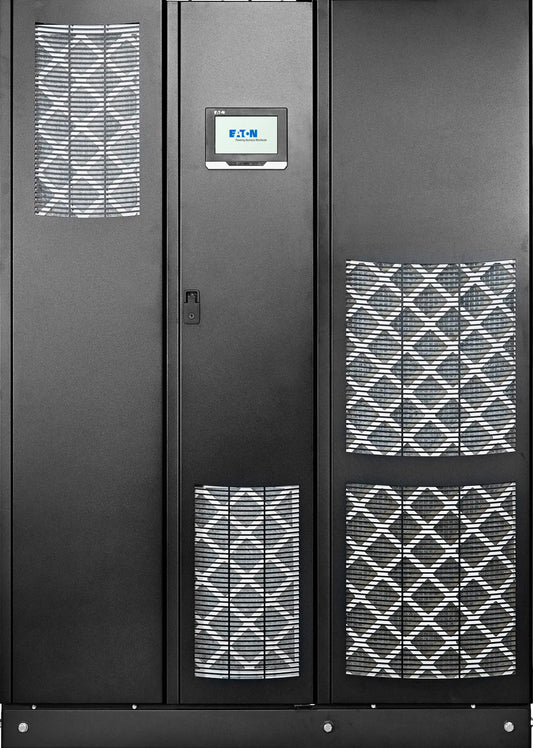

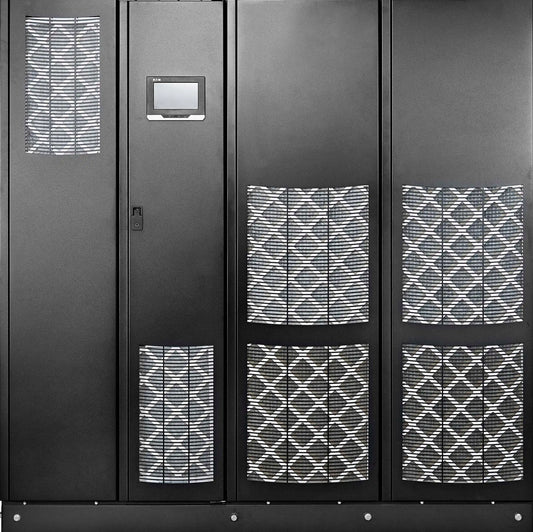

Eaton 9395 -- Large-Scale Three Phase, 225kVA to 1.1MVA
The Eaton 9395 is designed for large data centres and critical infrastructure requiring maximum efficiency and scalable battery runtime. The Energy Saver System (ESS) achieves up to 99% operating efficiency, one of the highest in the industry at this scale. For large facilities, the efficiency premium typically delivers a payback period of 3 to 5 years in reduced electricity costs. Suited to large data centre white space, healthcare and critical national infrastructure. Range: 225kVA to 1.1MVA.

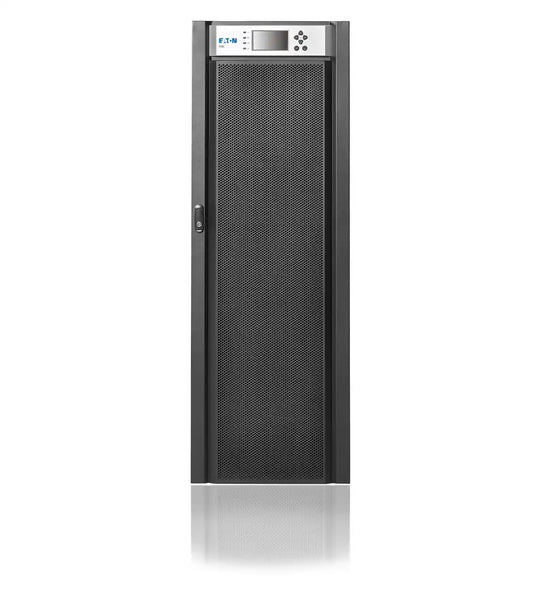

Eaton 93E end-of-life notice: The 93E (15kVA to 200kVA) reached end-of-life from January 2025. Customers with existing 93E installations should contact our team to discuss migration planning to the Eaton 93PM.
Eaton UPS Model Comparison
| Series |
Type |
Power Range |
Topology |
Battery Options |
| 9E |
Single phase |
1 to 20kVA |
Double-conversion |
Lead-acid VRLA |
| 5PX |
Single phase |
1.5 to 3kVA |
Line-interactive |
Lead-acid VRLA |
| 9SX |
Single phase |
700VA to 3kVA |
Double-conversion |
Lead-acid VRLA |
| 9PX |
Single phase |
700VA to 11kVA |
Double-conversion (95% efficient) |
Lead-acid or LiFePO4 lithium-ion |
| 9PXM |
Single phase modular |
4 to 20kVA |
Double-conversion modular |
Lead-acid VRLA |
| 9155 |
Single phase |
8 to 15kVA |
Double-conversion |
Lead-acid VRLA |
| 9355 |
Three phase |
10 to 80kVA |
Double-conversion |
Lead-acid VRLA |
| 93PM |
Three phase modular |
25kVA to 1.1MVA |
Double-conversion modular |
Lead-acid or LiFePO4 lithium-ion |
| 9395 |
Three phase |
225kVA to 1.1MVA |
Double-conversion (99% ESS) |
Lead-acid VRLA |
Choosing the Right Eaton UPS
-
Individual servers and IT closets: Eaton 5PX or 9PX 1 to 3kVA
-
Server rooms and edge data centres: Eaton 9PX 3 to 11kVA
-
Growing IT environments needing scalability: Eaton 9PXM 4 to 20kVA
-
Larger single-phase requirements: Eaton 9155 8 to 15kVA
-
Small to medium three-phase data centres: Eaton 9355 10 to 80kVA
-
Medium to large commercial data centres: Eaton 93PM 25kVA to 1.1MVA
-
Large-scale data centres, maximum efficiency: Eaton 9395 225kVA to 1.1MVA
-
Harsh industrial power quality, high ambient temperatures: Eaton 9PX or 9SX double-conversion
Eaton UPS Service and Maintenance
Indigi Power and Cooling provides the full range of Eaton UPS services across Australia. All maintenance is performed by OEM-trained technicians following Eaton manufacturer procedures:
- Load assessment and system sizing for new Eaton UPS installations
- Supply and delivery across all Eaton series, Australian stock
- Installation and commissioning, single and three phase
- Network card configuration, SNMP and Modbus setup
- Integration with Eaton Intelligent Power Manager (IPM)
- Scheduled preventative maintenance and ABM battery testing
-
Eaton UPS battery replacement -- VRLA and LiFePO4 lithium-ion
- Fault diagnosis, repair and emergency callout
- Safe disposal and recycling of expired VRLA batteries
- Migration planning for legacy Powerware, MGE and 93E systems
See our UPS maintenance and service contracts page for pricing and service plan options. For emergency callout, phone 1800 046 344.
Eaton UPS Supply and Service Locations
We supply and service the full Eaton UPS range from three national service hubs:
Brisbane CBD, Woolloongabba, Eight Mile Plains, Port of Brisbane, Gold Coast, Sunshine Coast, Ipswich, Townsville, Cairns, regional QLD
Eaton UPS supply, installation and maintenance across Southeast Queensland and regional QLD. Pre-summer battery testing recommended for all QLD sites before October.
Sydney CBD, Parramatta, North Ryde, Macquarie Park, Western Sydney, Newcastle, Wollongong, Canberra (ACT)
Eaton UPS supply and maintenance for Sydney data centre precincts, government, healthcare and enterprise facilities across NSW and ACT.
Melbourne CBD, Port Melbourne, Docklands, Dandenong, Tullamarine, Geelong, Ballarat, regional Victoria
Eaton UPS supply and service for Melbourne's data centre corridor, healthcare, financial services, government and industrial facilities across VIC.
Perth, Adelaide and Darwin
Perth CBD, Fremantle, Kalgoorlie, Pilbara; Adelaide CBD, regional SA; Darwin, Alice Springs, remote NT sites
Eaton UPS serviced from our three national hubs. Remote WA and NT sites face the highest ambient temperature loads on UPS battery systems in Australia. Lithium-ion Eaton UPS models are strongly recommended for these environments.
Papua New Guinea and Pacific Islands: Indigi Power and Cooling supplies and maintains Eaton UPS systems in Papua New Guinea and across the Pacific. Contact us to discuss logistics and scheduling.
Eaton UPS FAQs
What is the best Eaton UPS for a server room?
For most Australian server rooms, the Eaton 9PX is the recommended choice. It delivers online double-conversion protection with zero transfer time, up to 95% efficiency, HotSync paralleling for N+1 redundancy, and the Eaton Gigabit Network Card for cybersecurity-compliant remote management. For loads above 11kVA single phase, the 9PXM (4 to 20kVA modular) or 9155 (8 to 15kVA) are appropriate. For three-phase server rooms above 25kVA, the 93PM modular system is the standard data centre choice.
What is a double-conversion UPS and why does it matter?
A double-conversion online UPS completely regenerates the output power from the battery inverter at all times, so connected equipment always runs on clean inverter power with zero transfer time during any mains disturbance. This is the required topology for servers, medical equipment, telecommunications infrastructure and any equipment that cannot tolerate a momentary interruption. All Eaton 9E, 9SX, 9PX, 9PXM, 9155, 9355, 93PM and 9395 models are double-conversion online.
How long does an Eaton UPS battery last?
Eaton VRLA lead-acid batteries typically last 3 to 5 years in Australian conditions. Eaton's ABM charging system extends battery service life by up to 50% compared to conventional float charging. Eaton LiFePO4 lithium-ion batteries, available on the 9PX G2 and 93PM, have a design life of approximately 10 years with a 5-year warranty, roughly twice the service life of VRLA alternatives.
Why does my Eaton UPS keep beeping?
An Eaton UPS beeps to indicate a fault or status condition. Common causes include: battery on discharge (mains power lost or degraded), battery end-of-life warning, overload alarm, battery test running, or a communication fault with the network card. A continuous beep typically indicates the UPS is running on battery. A repeating short beep pattern usually indicates a battery fault or low battery. Check the LCD display for the specific alarm code. See our Eaton 9PX fault codes and troubleshooting guide or contact our service team.
What is the difference between the Eaton 9PX and the Eaton 9SX?
Both are double-conversion online UPS systems, but the 9PX is the flagship with significantly more features: 3-level inverter achieving up to 95% efficiency (versus approximately 91% for the 9SX), self-powered bypass, HotSync paralleling for N+1 redundancy, up to 4 external battery modules, and the Eaton Gigabit Network Card option. The 9SX is a capable unit at a lower price point (700VA to 3kVA) suited to less complex deployments.
Is Eaton the same as Powerware?
Yes. Eaton acquired Powerware in 2004 and rebranded the Powerware range under the Eaton name. The Eaton 9355 was previously the Powerware 9355. Legacy Powerware systems including the Powerware 9155, 9390 and 9395 are now serviced under the Eaton brand. Indigi Power and Cooling services and maintains legacy Powerware systems alongside current Eaton products and can assist with migration planning.
Does Eaton make a lithium-ion UPS?
Yes. Eaton offers LiFePO4 lithium-ion batteries on the 9PX G2 single-phase models (700VA to 6kVA) and the 93PM three-phase modular system. Eaton's LiFePO4 chemistry does not generate oxygen during thermal events, eliminating the ignition risk associated with some other lithium-ion chemistries. Lithium-ion Eaton UPS systems are 40% smaller than equivalent VRLA systems, lighter, and carry a 5-year battery warranty.
|
Get an Eaton UPS Quote
Tell us your load in kW, preferred runtime, single or three phase, and site location. We will specify the right Eaton UPS model with pricing and lead time. Indigi Power and Cooling is Indigenous and Veteran-owned, Supply Nation and ICN Gateway registered.
