Eaton UPS for Small Data Centers in Australia: Scalable Power for Growing IT Infrastructure (2026)
Picture a professional services firm in Brisbane 20 staff, five servers, a modest server room tucked behind the finance team. Their IT manager installs a compact UPS, ticks the compliance box, and moves on. Eighteen months later, the business has grown. Three new service lines, two interstate offices, 25 servers and a virtualisation stack that now runs everything from billing to client portals. The original UPS is running at 95% load. There is no runtime headroom. There is no redundancy. And the only fix on the table is ripping out the old unit and buying something bigger at full cost, all over again.
This is not a niche problem. It is the default outcome when Australian businesses choose UPS equipment sized for today rather than designed for growth. There is a better way.
Why Small Data Centers Need a Different UPS Strategy
The standard approach to UPS procurement in small data centres tends to follow a predictable and expensive pattern: overspecify at installation to give some breathing room, watch the load creep up over 12–24 months, then face a full replacement when capacity runs out. The organisation pays twice or more for protection it could have scaled incrementally.
A small data centre context typically means 5 to 50 servers operating either in a co-location rack or an on-site server room. These environments are common across professional services, manufacturing, healthcare administration, and financial services in Queensland, New South Wales and Victoria. At this scale, the UPS is not a peripheral device it is the last line of defence for systems that cannot afford a minute of unprotected downtime.
What these sites need is not the biggest UPS they can afford today. They need a platform that grows with them.
Eaton's Scalable UPS Approach: Pay-As-You-Grow Power
Eaton has engineered the 9PX and 5PX product families specifically around incremental scalability the ability to add capacity and runtime without replacing the core UPS unit.

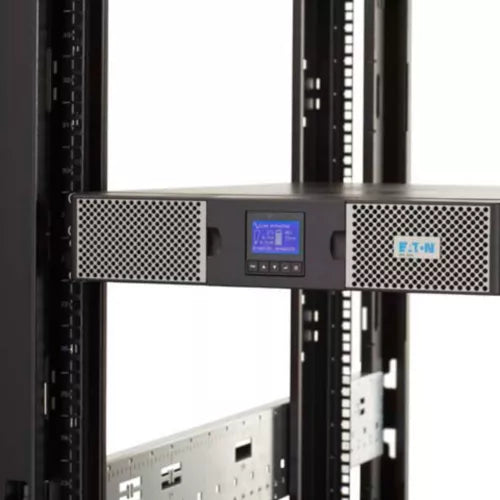

Eaton 9PX: The Flagship for Small Data Centers
The 9PX range spans 1000VA to 11kVA in single-phase configurations, all using online double-conversion topology. Double conversion means the load is always running on clean, regulated inverter power not just switched over during a fault. Every power anomaly surges, sags, brownouts, frequency drift is filtered before it reaches your equipment.
Key specifications that matter for Australian small data centres:
-
95% efficiency in online double-conversion mode, up to 98% in high-efficiency mode among the highest in class, reducing energy and cooling costs
-
ABM (Advanced Battery Management) technology Eaton's three-stage charging algorithm extends battery service life by up to 50% and provides advance warning before a battery needs replacement. Fewer surprise failures. Longer intervals between battery swaps.
-
External Battery Modules (EBMs) add runtime without touching the base UPS. The 9PX supports up to 12 EBMs, and additional modules are automatically recognised by the unit. Your runtime can grow from minutes to hours without a forklift upgrade.
-
HotSync parallel operation connect two 9PX units in parallel for N+1 redundancy using Eaton's unique HotSync technology. HotSync requires no inter-unit communications cable, eliminating a common single point of failure in traditional parallel designs. If one unit fails, the other assumes 100% of the load instantly.
-
Brightlayer Data Centers software suite Eaton's remote monitoring and management platform. IT managers can monitor UPS status, battery health, load levels and alarm events from a browser or mobile dashboard, whether the site is in Brisbane, Sydney or Melbourne. The suite supports SNMP, Modbus TCP and integration with virtualisation environments.
Eaton 5PX: Entry-Level Rack/Tower for Budget-Conscious Deployments
The 5PX series provides line-interactive protection with ABM battery management in a convertible rack/tower form factor. It is the right call for network closets, small office server rooms and edge locations where budget is the primary constraint. The 5PX supports up to four EBMs and includes managed outlet segments for granular load control. Efficiency reaches up to 99% among the best in the line-interactive category.
Eaton 9PX vs 5PX - Which Is Right for Your Data Center?
Key distinction: The 5PX uses line-interactive topology, which corrects voltage but does not regenerate power. The 9PX uses true online double-conversion, which provides zero-transfer-time protection. For mission-critical server loads especially in areas prone to power quality issues double conversion is the correct specification.
Real-World Scenario Brisbane Manufacturing Firm Scales from 5 to 15 Servers
A mid-sized manufacturing business in Brisbane's south-west initially deploys a single Eaton 9PX 2200VA (9PX2200IRT2UANZ) to protect five servers running their ERP and warehouse management systems. The unit delivers 2200W output, online double-conversion, and roughly 20 minutes of runtime at 50% load on internal batteries.
18 months later: Server count grows to nine as the business adds CNC machine monitoring and a new logistics integration. Rather than purchasing a new UPS, the IT manager adds an external battery module (EBM). Runtime doubles. Total cost: a fraction of a base unit replacement.
Three years in: The firm consolidates its Melbourne warehouse operations into the Brisbane site. The server count reaches 15, and a second application requires guaranteed uptime during planned maintenance windows. The team installs a second 9PX 2200VA alongside the original, parallel-connected via HotSync. The two units now share the load in N+1 configuration if either fails, the other covers 100% of the load with zero interruption.
The cost comparison: Three incremental upgrades (EBM, second UPS via HotSync) versus two complete UPS replacements at full market price. The pay-as-you-grow model delivers real savings not just in capital expenditure but in installation time, commissioning effort and disposal costs for old equipment.
Eaton UPS Features That Matter for Australian Conditions
Selecting a UPS for an Australian site is not the same as selecting one for Europe or North America. Several local factors deserve specific attention.
Grid voltage and certification: Australian infrastructure operates on 230V/50Hz single-phase. Eaton's ANZ-suffix models such as the 9PX2200IRT2UANZ are certified for Australian grid conditions, carry RCM (Regulatory Compliance Mark) certification, and ship with IEC outlets plus Australian GPO (General Purpose Outlet) configurations where appropriate. Do not install a non-ANZ model and assume the specifications align.
Input voltage tolerance and brownout performance: The 9PX accepts a wide input range of 176–276V without derating (down to 100V with derating). This matters in Queensland and regional New South Wales, where grid brownouts and voltage sags during peak demand periods are a known occurrence. The 9PX rides through these events on utility power rather than switching to battery, preserving battery life and reducing unnecessary cycling.
Operating temperature: The 9PX and 5PX are rated for 0–40°C ambient operation. In Australian summer conditions particularly in unconditioned or partially conditioned plant rooms in Queensland or Victoria this thermal tolerance provides genuine operational margin.
Generator compatibility: Many Australian sites particularly in regional Queensland and rural New South Wales rely on diesel generators as a backup power source. Eaton's 9PX is compatible with generator operation, with wide frequency tolerance (40–70Hz input range) that accommodates the frequency variation typical of generator start-up and stabilisation.
Australian support: Eaton offers a 14-day returns policy and a local support hotline at 1300 332 866 for Australian customers.
2026 Recommendations - Eaton Models for Small Data Centers
Based on current specifications and Australian pricing, here are the recommended Eaton configurations for small data centre deployments in 2026:
Sub-5kVA - Best All-Rounder:
Eaton 9PX 2200VA (9PX2200IRT2UANZ)
2200W output, unity power factor, online double-conversion, 2U rack/tower, IEC C13 x8 and C19 x2 outputs, ABM battery management, USB and RS232 ports, RCM certified. The starting point for any server room running 5–10 servers. Pair with an EBM for extended runtime as load grows.
5–11kVA - Growing Data Halls:
Eaton 9PX 5kVA (9PX5Ki)
4500W output, 95% online efficiency, HotSync parallel capability, up to 12 EBMs, hardwired input. The right specification for virtualisation environments, NAS-heavy deployments, and any site running 10–25 servers where redundancy planning is already on the roadmap.
Budget and Edge Deployments:
Eaton 5PX
1000–3000VA, line-interactive, ABM, convertible rack/tower. Ideal for network closets, branch office server rooms, and smaller sites in Sydney and Melbourne where a full double-conversion investment is not yet justified.
Why Choose Indigi Power & Cooling for Eaton UPS Supply and Installation?
Indigi Power & Cooling is an Australian UPS and cooling specialist with supply and service capability across Brisbane, Sydney and Melbourne. When it comes to Eaton UPS for small data centres, here is what Indigi brings to the table:
Supply across Australia's eastern seaboard. Whether your site is in the Brisbane CBD, Western Sydney, or Melbourne's inner east, Indigi can source and deliver ANZ-certified Eaton UPS equipment with the correct accessories, EBMs and mounting hardware.
Professional UPS installation and commissioning. A UPS connected incorrectly wrong bypass configuration, undersized cabling, improper earthing can be worse than no UPS at all. Indigi's professional UPS installation service ensures your equipment is commissioned correctly from day one, with load testing and documentation to back it up.
Ongoing maintenance and battery replacement. ABM technology extends battery life, but batteries still need replacing typically every 3–5 years. Indigi's UPS battery replacement service keeps your protection current without requiring a full system review each time.
Broader UPS expertise. If you want to compare UPS brands in Australia Eaton, Vertiv, APC and others Indigi's team can walk you through the trade-offs for your specific load profile and budget.
Contact our team to discuss your site requirements. We will assess your current load, project your growth trajectory and recommend the Eaton model and configuration that fits both budgets today's and tomorrow's.
Ready to Scale Your Data Center Power Protection?
Growing IT infrastructure outpaces protection faster than most organisations expect. Eaton's 9PX and 5PX platforms are designed to match that growth incrementally, cost-effectively, without ripping and replacing every 18 months.
Contact Indigi Power & Cooling for a free Eaton UPS sizing consultation — Brisbane, Sydney and Melbourne.
Get in touch today and let us build a scalable power protection plan around your specific data centre requirements.
