CRAC Unit Hot Gas Bypass Systems Explained: How They Work and Why They Matter

Precision Cooling · CRAC Units · Data Centre HVAC

Every server room and data centre has a cooling problem that most people never notice: the heat load is rarely constant. Racks power up and down, workloads shift overnight, and a room designed for 40 kW might only be shedding 8 kW at 3am. A precision cooling unit sized for the full load now has far more capacity than it needs, and a simple fixed-speed compressor has only two states, fully on or fully off. Without a way to soften that mismatch, the compressor starts short cycling, and short cycling is one of the fastest ways to wear out a CRAC unit.

Hot gas bypass is the classic engineering answer to that problem. It has been used in refrigeration and precision cooling for decades, and it is still fitted to a large share of the direct expansion (DX) CRAC units running in Australian comms rooms, switchrooms and edge sites today. This guide explains what hot gas bypass is, how the valve actually works, why data centres rely on it, how it compares to modern variable-capacity cooling, and what is involved in tuning and servicing it correctly.

What is hot gas bypass in a CRAC unit?

Hot gas bypass is a refrigeration capacity-control technique. In a normal cooling cycle, the compressor pushes hot, high-pressure refrigerant gas to the condenser, where it rejects heat and condenses to a liquid before passing through the expansion valve and back into the evaporator coil to absorb heat from the room air. A hot gas bypass system adds a dedicated line, controlled by a hot gas bypass valve, that diverts some of that hot discharge gas directly back into the low-pressure side of the circuit, usually at or near the evaporator inlet.

The effect is that the evaporator sees an artificial heat load. Even when the room is not producing much heat, the bypassed hot gas keeps the suction pressure up and gives the compressor something to do. The compressor keeps running steadily instead of satisfying the thermostat in seconds and shutting off. In data centre terms, hot gas bypass lets a unit turn down its effective cooling capacity, often to around 25 percent of full output, while the compressor itself never stops. That continuous, stable operation is exactly what a precision cooling application needs.

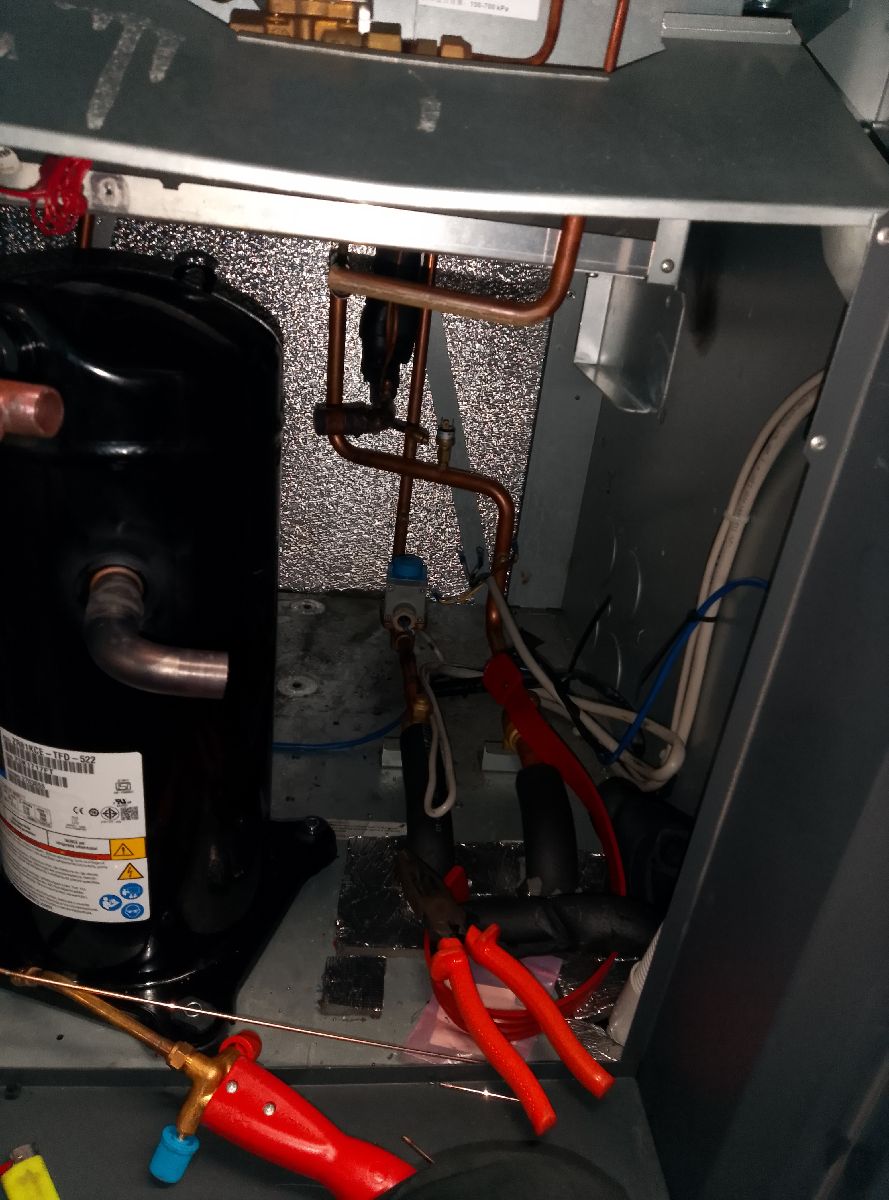

How does a hot gas bypass valve work?

A hot gas bypass valve is a modulating pressure-regulating valve. It senses the pressure on the low side of the system (the evaporator or suction pressure) and opens progressively as that pressure falls below a set point. When the room heat load is high, suction pressure is high, and the valve stays closed so that all refrigerant follows the normal cooling path. As the heat load drops, suction pressure falls, the valve cracks open, and hot gas begins to flow into the evaporator to hold the suction pressure at the set point.

The valve does not simply switch open and shut. It throttles, feeding just enough hot gas to maintain a stable minimum suction pressure. Many CRAC installations inject the bypassed gas together with a small amount of liquid refrigerant (via an auxiliary side connection) so the compressor still receives properly cooled suction gas and does not overheat. The set point is field-adjustable, which is why correct commissioning and periodic tuning matter so much: set it too high and the unit never fully unloads; set it too low and the valve barely engages, letting the compressor short cycle anyway.

Why data centres and server rooms need hot gas bypass

A comfort air conditioner can cycle on and off all day without anyone caring. A precision cooling unit cannot. Data centre and comms room environments are governed by ASHRAE TC 9.9 guidance, which recommends holding the equipment inlet air within roughly 18 to 27 degrees Celsius and keeping humidity within a tight band. Short cycling makes both of those targets impossible to hold, and it damages the plant. Hot gas bypass exists to solve four connected problems at low load.

Short cycling and compressor wear. Every compressor start draws a large inrush current and stresses the motor windings, bearings and valves. A fixed-speed compressor short cycling every few minutes can rack up hundreds of extra starts per day. Manufacturers commonly recommend a minimum of around 3 to 6 minutes of run time per cycle, and hot gas bypass is what makes continuous running possible below that threshold, dramatically reducing wear and extending compressor life.

Temperature stability. When a compressor slams on and off, supply air temperature swings with it. Sensitive IT hardware and network equipment sees repeated thermal cycling. Hot gas bypass keeps the compressor running and the cooling output steady, so rack inlet temperatures stay inside the ASHRAE envelope instead of sawtoothing up and down.

Humidity control. Dehumidification only happens while the evaporator coil is cold and running. A unit that keeps switching off loses its grip on humidity, forcing energy-hungry reheat and humidifier cycles to compensate. Continuous coil operation under hot gas bypass gives far more consistent dew point control, which reduces both condensation risk and static electricity risk in the room.

Coil freeze protection. At very low load, evaporator pressure and temperature can drop far enough for the coil to frost or freeze, blocking airflow and eventually damaging the compressor with liquid slugging. By holding suction pressure at a safe minimum, hot gas bypass keeps the coil above freezing and protects the compressor.

Hot gas bypass vs modern variable-capacity cooling

Hot gas bypass is reliable and proven, but it has one real downside: it wastes energy. The bypassed hot gas is doing no useful cooling, so the compressor keeps drawing near full power while delivering only a fraction of its rated capacity. Newer CRAC and CRAH units address low-load turndown with more efficient technologies, but hot gas bypass remains the right answer for a huge installed base and for many smaller or budget-sensitive sites. The table below compares the main capacity-control approaches you will find in Australian server rooms.

The practical takeaway is that hot gas bypass and modern turndown are not mutually exclusive. Plenty of units combine hot gas bypass with a digital scroll or a two-step compressor so the bypass only handles the very bottom of the load range. If you are unsure which method your units use, our CRAC topology selector and DX CRAC servicing pages walk through how to identify and maintain each type.

How to adjust a hot gas bypass valve

Adjusting a hot gas bypass valve is a refrigeration task that should be carried out by a licensed technician holding an ARC refrigerant handling licence, because it involves working on a pressurised, charged system. The valve has an adjustment screw that raises or lowers the suction-pressure set point at which it begins to open. Turning it one way raises the set point so the valve opens sooner; turning it the other way lowers the set point so the valve opens later. Adjustments are made in small increments while watching the suction gauge and letting the system stabilise between turns.

Correct setting is a balance. If the set point is too high, the valve feeds hot gas too aggressively and the unit cannot reach full cooling capacity when the room actually needs it. If the set point is too low, the valve barely opens and the compressor short cycles at low load, which is the very failure the system exists to prevent. A technician confirms the setting by loading and unloading the room, checking suction and discharge pressures, superheat and compressor run times against the manufacturer's commissioning data. This is exactly the kind of check included in a planned CRAC unit maintenance visit.

Common hot gas bypass faults and servicing

Because the hot gas bypass valve is a mechanical, pressure-actuated component sitting in a hot refrigerant line, it is subject to wear, contamination and drift. When it fails, the symptoms often look like a general cooling problem, so it pays to know what to check. The table below lists the faults Indigi technicians see most often on CRAC hot gas bypass systems in the field.

Servicing a hot gas bypass system is part of routine precision cooling maintenance. A technician verifies the valve set point against commissioning data, checks superheat and subcooling, confirms the liquid injection line is clear, inspects for refrigerant leaks around the valve and connections, and logs suction and discharge pressures at both full and part load. Because the valve interacts with the whole refrigeration circuit, a correct diagnosis often depends on reading the system as a whole rather than swapping the valve on a hunch.

Hot gas bypass servicing across Australia

Indigi Power and Cooling services DX and CRAC hot gas bypass systems nationally from our Brisbane, Sydney and Melbourne hubs, with coverage extending to regional and remote sites.

Frequently asked questions

What is hot gas bypass used for?

Hot gas bypass is used to control the capacity of a refrigeration or precision cooling system at low heat loads. It lets a fixed-speed compressor keep running continuously instead of short cycling, which protects the compressor and keeps supply air temperature and humidity stable in server rooms and data centres.

How does a hot gas bypass valve work?

The valve senses suction (low-side) pressure and opens progressively as that pressure falls below its set point. When it opens, it feeds hot discharge gas back into the evaporator to maintain a stable minimum suction pressure, so the compressor keeps running even when the room needs very little cooling.

What is hot gas bypass in HVAC and refrigeration?

In HVAC and refrigeration, hot gas bypass is a capacity-control method that recirculates a portion of hot compressor discharge gas back to the low side of the system. It creates an artificial load on the evaporator so the compressor does not have to switch off at part load, improving temperature and humidity control.

Is hot gas bypass energy efficient?

Hot gas bypass is reliable but not energy efficient, because the compressor keeps running at close to full power while delivering only part of its cooling capacity. Modern variable-speed and digital scroll compressors turn down more efficiently, though hot gas bypass remains widely used on existing DX CRAC units and smaller sites.

Who can adjust or service a hot gas bypass valve?

Adjusting or servicing a hot gas bypass valve must be done by a licensed refrigeration technician holding an ARC refrigerant handling licence, because it involves working on a charged, pressurised system. Indigi Power and Cooling carries out this work as part of scheduled CRAC maintenance across Australia.
