How to Size a Single Phase UPS System
Picking the wrong UPS size is the most common mistake in server room and IT infrastructure power protection. An undersized UPS trips under load or provides inadequate runtime. An oversized one wastes money and runs the battery at a shallow depth of discharge that can shorten its service life. This guide shows you how to get it right.

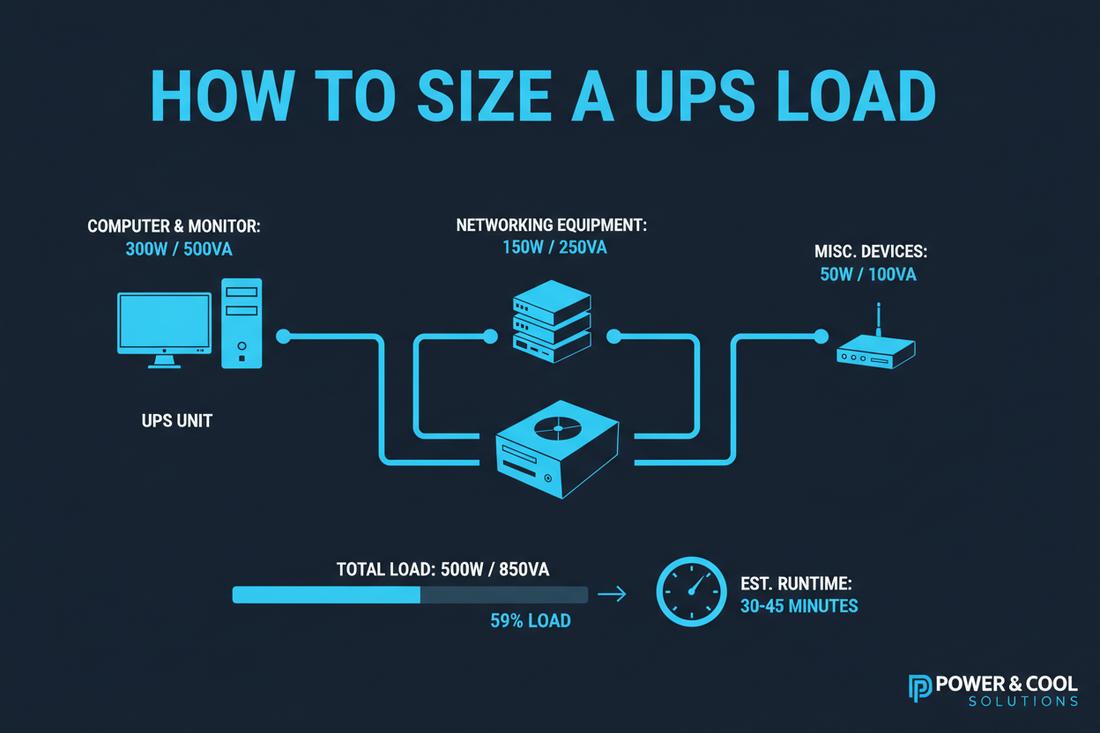

Step 1: Calculate Your Load in Watts
UPS capacity is rated in VA (volt-amps) but your equipment consumes watts. These are not the same number.
Add up the power consumption in watts of every device you plan to protect. Use the nameplate wattage on the back of each device, or measure with a power meter for accuracy. Include:
-
Servers and workstations
-
Network switches and routers
-
Storage arrays and NAS devices
-
KVM switches, monitors, and other peripherals in the rack
-
Any other equipment connected to the UPS output
Do not use the maximum rated wattage. Servers rarely run at 100% load. A realistic operating load is typically 40 to 70% of nameplate maximum.
Step 2: Convert Watts to VA
VA = Watts divided by Power Factor. For most modern IT equipment with active power factor correction (PFC) power supplies, power factor is 0.9 to 1.0. Use 0.9 as a conservative estimate.
Example: 800W load at 0.9 power factor = 800 / 0.9 = 889VA minimum UPS rating.
Step 3: Add Headroom
Never size a UPS at 100% of its rating. Run at 70 to 80% maximum to allow for:
-
Load growth as equipment is added
-
Startup inrush current from servers and storage
-
Battery performance degradation over time
Example: 889VA load requires a minimum 1000VA UPS to stay under 80% loading.
Step 4: Choose Your Runtime
How long do you need the UPS to run on battery? The answer depends on your recovery strategy:
-
5 to 10 minutes: Enough for a graceful shutdown of servers. Suitable for sites with no generator.
-
15 to 30 minutes: Allows time for a generator to start and stabilise before transferring load.
-
60 minutes or more: Remote or regional sites where technician response time is extended.
Runtime increases with battery capacity. External battery modules (EBMs) on models like the Eaton 9PX or APC SMX extend runtime without replacing the UPS itself.
Step 5: Select the Right Topology
-
Line-interactive suits most server room and IT applications. Corrects voltage without using the battery. Transfer time is 2 to 4 milliseconds, acceptable for most equipment.
-
Double-conversion online provides zero transfer time and complete power conditioning. Required for equipment with no transfer time tolerance, poor power quality sites, or generator-fed circuits.
Common Sizing Mistakes
-
Sizing on VA without checking watt rating at the actual power factor
-
Not leaving headroom for load growth or inrush
-
Using maximum nameplate wattage instead of typical operating load
-
Forgetting to include all devices in the rack (KVM, patch panels with PoE)
-
Choosing runtime based on hope rather than your actual recovery procedure
