Maritime UPS Systems: What Every Vessel Operator Needs to Know

Power disruptions on land are inconvenient. Power disruptions at sea are dangerous. When a vessel loses power to its navigation systems mid-passage, or when a communication failure prevents a distress call from being transmitted, the consequences extend well beyond lost revenue or corrupted data. Maritime UPS systems exist to prevent that scenario - providing clean, uninterrupted power to the critical onboard systems that keep vessels safe and operational in any sea state.

This guide covers what sets a marine-rated UPS apart from a standard unit, the international standards and classification society approvals that govern vessel power protection, and the Eaton marine UPS range available through Indigi Power & Cooling in Australia.

Why Standard UPS Systems Are Not Suitable for Vessels

A typical commercial UPS is designed for a climate-controlled server room or office environment. It assumes a stable mounting surface, controlled temperature and humidity, consistent input frequency, and access for maintenance. None of those assumptions hold at sea.

Vessels and offshore platforms present a fundamentally different set of physical and electrical conditions. Vibration from engines and sea motion can damage standard UPS electronics and dislodge battery connections. Salt air accelerates corrosion on circuit boards, connectors, and cabinet metalwork. Ambient temperatures in engine rooms and machinery spaces regularly exceed the operating limits of standard UPS equipment. Ship electrical systems often operate at non-standard voltages - 440V, 480V, or 690V - with input frequencies that fluctuate outside the 45-65Hz range that shore-based power maintains.

Beyond the physical environment, vessels can incline up to 45 degrees in heavy seas, experience generator switching events that create momentary voltage spikes, and operate in EMC-sensitive areas where equipment must not interfere with navigation and communication systems on the bridge.

A marine UPS is engineered to operate in all of these conditions without failure.

What Makes a UPS Marine-Rated

The distinguishing features of a genuine marine UPS go well beyond an IP rating.

Conformal Coated Boards
All printed circuit boards are coated with a protective conformal coating that resists humidity, condensation, salt mist, and chemical exposure. This is not standard on commercial UPS units and is a fundamental requirement for reliable operation in marine environments.

Vibration Absorbers and Robust Mounting
Marine UPS installations require vibration absorbers fitted under the cabinet, with mounting rails that can be bolted or welded directly to the deck or bulkhead. This is tested to classification society standards for vibration and shock resistance, not simply quoted as a specification.

High-Temperature Compatibility
Marine UPS systems are engineered for high-temperature environment compatibility, operating reliably in ambient conditions that would degrade standard commercial UPS electronics and significantly shorten battery life.

Wide Voltage and Frequency Range
Marine electrical systems operate across a wide range of voltages and frequencies depending on the vessel type, age, and flag state. A genuine marine UPS must accommodate this without requiring external voltage conversion equipment - or must include internal transformer options to configure for any vessel standard from 230V to 690V.

Double-Conversion Topology - The Only Acceptable Choice
The International Electrotechnical Commission and major classification societies are unambiguous on UPS topology for marine use: online double-conversion is the only topology suitable for protecting sensitive shipboard electronics. Double-conversion provides zero transfer time between utility and battery mode and maintains complete isolation of connected equipment from all power anomalies on the vessel's electrical grid. It is the only topology that meets the highest performance class, VFI-SS-111, under IEC 62040-3. Standby and line-interactive UPS systems are not acceptable for marine-critical applications.

The Standards and Certifications That Matter

A marine UPS cannot simply be installed on a vessel - it must meet the regulatory and classification requirements applicable to that vessel. The key frameworks are:

IEC 60945
The cornerstone EMC standard for marine navigation and radiocommunication equipment. A UPS installed in a bridge location or near radio communication systems must comply with IEC 60945 to avoid interfering with the vessel's navigation and communications equipment. Compliance requires specific EMC testing and, in some cases, an additional marine filter.

IEC 62040 Series
IEC 62040-1 (safety), IEC 62040-2 (EMC), and IEC 62040-3 (performance) apply to UPS systems broadly. For marine applications, the VFI-SS-111 performance classification under IEC 62040-3 is the benchmark.

Classification Society Type Approval
The major classification societies - DNV, Bureau Veritas (BV), ABS, Lloyd's Register, ClassNK, and others - have their own rules for marine electrical systems. Type approval from a recognised classification society confirms that a UPS has been independently tested and verified to meet those rules. For vessels classed by those societies, using a type-approved UPS is generally mandatory for insurance and certification compliance.

SOLAS and IMO Requirements
Under the International Maritime Organization's Safety of Life at Sea (SOLAS) convention, certain onboard systems must maintain power continuity. UPS systems supporting GMDSS communications, emergency lighting, fire detection, and safety-critical automation must be specified and installed in compliance with SOLAS requirements applicable to the vessel's class and trading area.

Australian Vessel Electrical Standards
In Australia, vessels under 35 metres generally fall under AS/NZS 3000 (the Australian Wiring Rules). Vessels over 35 metres operating in Australian waters are subject to SOLAS and international maritime electrical standards. Any UPS installation on an Australian-flagged commercial vessel should be assessed by a suitably qualified marine electrician familiar with both SOLAS requirements and Australian flag state obligations under AMSA.

Eaton Marine UPS Systems Available in Australia

Eaton has over 30 years of experience supplying marine UPS systems and is one of the few manufacturers with DNV GL type approval, Bureau Veritas type approval, and ABS design assessment across its marine product range. Eaton marine UPS systems are tested and proven for shipping environments, built to protect navigation, communication, bridge equipment, automation, and auxiliary systems.

Eaton 9SX Marine (1000-3000VA)
A single-phase online double-conversion UPS for bridge systems, navigation, communications, and small computer systems. DNV GL type approved (with installation kit and marine filter). Conformal coated boards, vibration absorbers, hot-swappable batteries, and support for up to four external battery modules for extended runtime. Available in 1000VA and 3000VA configurations. View the Eaton 9SX Marine UPS.

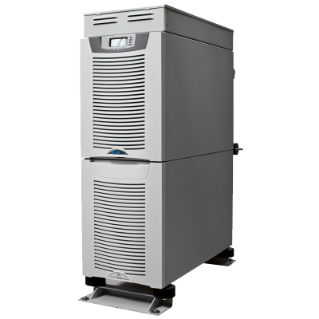

Eaton 9155 Marine (8-40kVA)
A three-phase online double-conversion UPS for larger vessel power applications. DNV GL type approved, Bureau Veritas type approved, and ABS design assessed up to 15kVA. HotSync parallel technology supports up to four units for N+1 redundancy. Wide voltage configurability from 230V to 690V via internal transformers. Available from 8kVA to 40kVA in tower configuration. View the Eaton 9155 Marine UPS.

For larger offshore and industrial vessel applications above 40kVA, the Eaton 9PHD Industrial UPS provides modular three-phase protection from 30kW to 200kW with IP22 enclosure rating, vibration dampers, and marine installation features including black start capability and halogen-free cabling.

Getting the Right Marine UPS for Your Vessel

Selecting a maritime UPS involves more than matching a VA rating to a load. The vessel classification, trading area, installation location (bridge vs engine room vs below deck), voltage and frequency standard, required battery runtime, and classification society rules all affect the specification. Getting it wrong risks non-compliance with SOLAS requirements, loss of class certification, and insurance exposure.

Indigi Power & Cooling supplies and supports Eaton marine UPS systems across Australia and the Pacific, including Papua New Guinea and offshore vessel and platform operations. Our team can assist with load assessments, DNV GL compliance requirements, and appropriate UPS selection for your specific vessel application.
