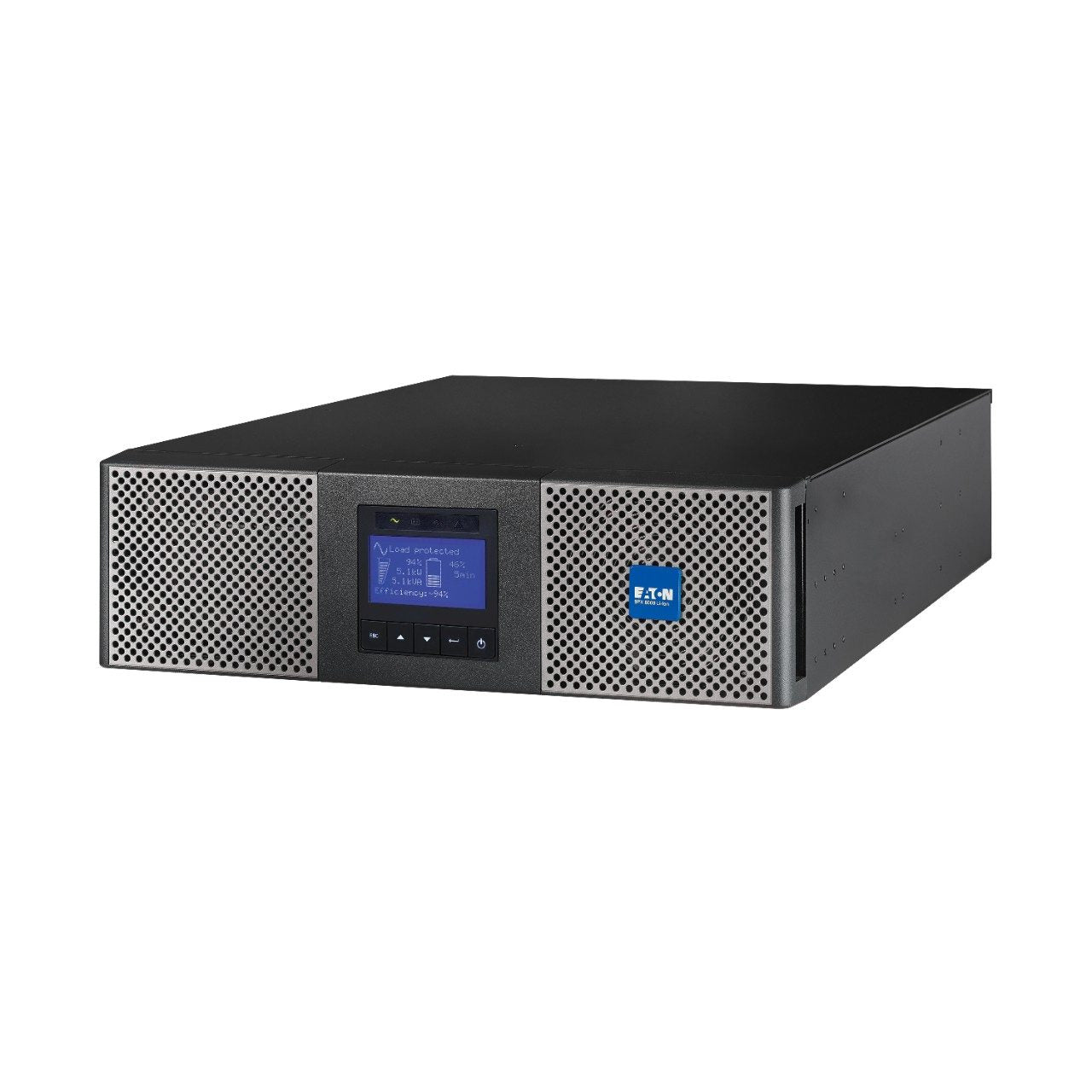

The Eaton 9PX lithium-ion UPS is an advanced power supply solution designed to meet the demanding needs of IT managers and facility operators. This 9PX lithium-ion rackmount and tower UPS provides 8 to 10 years of life expectancy for UPS and batteries. Its innovative design not only ensures superior power protection, but this Eaton lithium-ion UPS also offers 2-3 times extended battery life compared to traditional lead-acid batteries. It's designed to be space-efficient and energy-efficient, making it an ideal solution for IT infrastructure and data center environments.

The 9PX lithium-ion UPS has power ratings ranging from 1 to 6 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime and backup. The 9PX lithium-ion UPS, available in rackmount and tower form, has the same reliable features as the lead-acid UPS, including load segments that allow for prioritized shutdown, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities.

Now available!

Perfect for enterprise IT, edge deployment and industrial applications, the 9PX 6 kVA lithium-ion UPS features lithium-ion batteries, remote firmware upgrades and seamless integration with leading HCI and virtualization platforms.

Further expanding our successful lithium-ion double-conversion offering, the new 9PX 6 kVA lithium-ion UPS is ideal for enterprise IT, edge deployment and light industrial applications. It features lithium-ion batteries, remote firmware upgrades and seamless integration with leading HCI and virtualization platforms.

Set-it-and-forget-it deployment

The latest addition to Eaton's 9 series single-phase double-conversion UPS line, the Eaton 9PX 6kVA lithium-ion UPS offers a larger power rating, remote firmware upgrades, moving closer to a complete set-it-and-forget-it solution. Available in rackmount and tower form, the 9PX lithium-ion UPS has the same reliable features as the lead-acid UPS, including load segments that allow for prioritized shutdown, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities.

Extended battery life

2-3x longer battery life than comparable VRLA solutions

More runtime

2-3x more runtime at full load than comparable VRLA soutions

Save money

Reduced total cost of ownership (TCO) with 8-10 year lithium-ion battery lifespan

Lightweight design

up to 40% less weight than a comparable lead-acid UPS allowing easier installation

Better warranty

5-year all-inclusive (electronics and battery) warranty

Increased power rating

Compared to existing 9PX lithium-ion models

Enhanced security

Pre-installed gigabit network card and remote monitoring service provide cybersecurity protection and keeps you connected

Remote firmware upgrades

Keep your firmware up-to-date from anywhere around the globe

24/7 monitoring

Battery management system (BMS) improves reliability and performance by actively monitoring temperature and charge

9PX 6 kVA lithium-ion rack/tower UPS, 208V (200V, 208V, 220V, 230V, 240V)

Catalog number	9PX6KIRTN-L
Power rating (VA/ watts)	6000 / 5400
Input	Hardwire

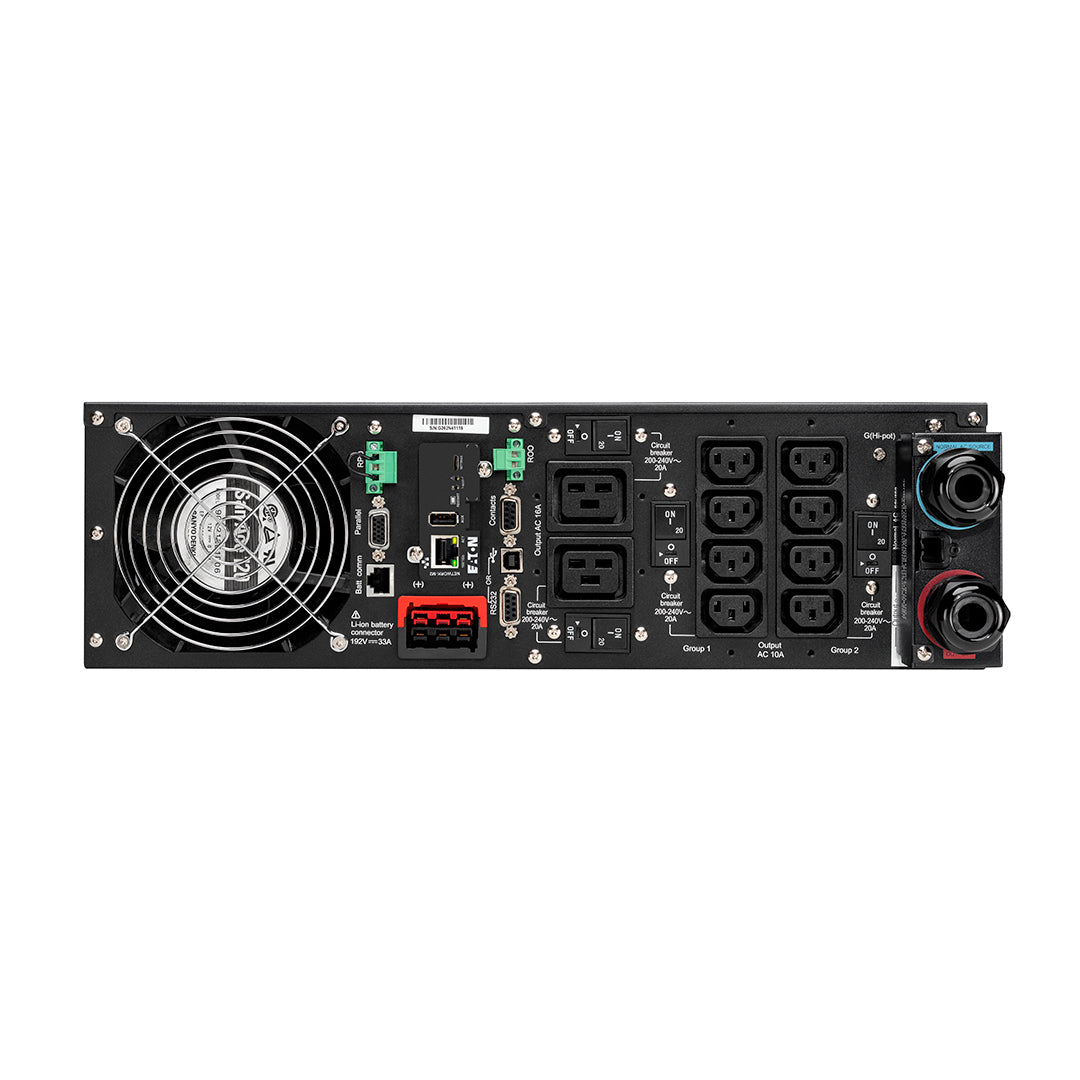

Output	Terminal block + 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
Dimensions (H x W x D*)/Weight	130x440x685/36.9kg
Weight, lb.	81.2
Internal runtime (min) full / half load	8.7 / 17.4
Rack size	3U

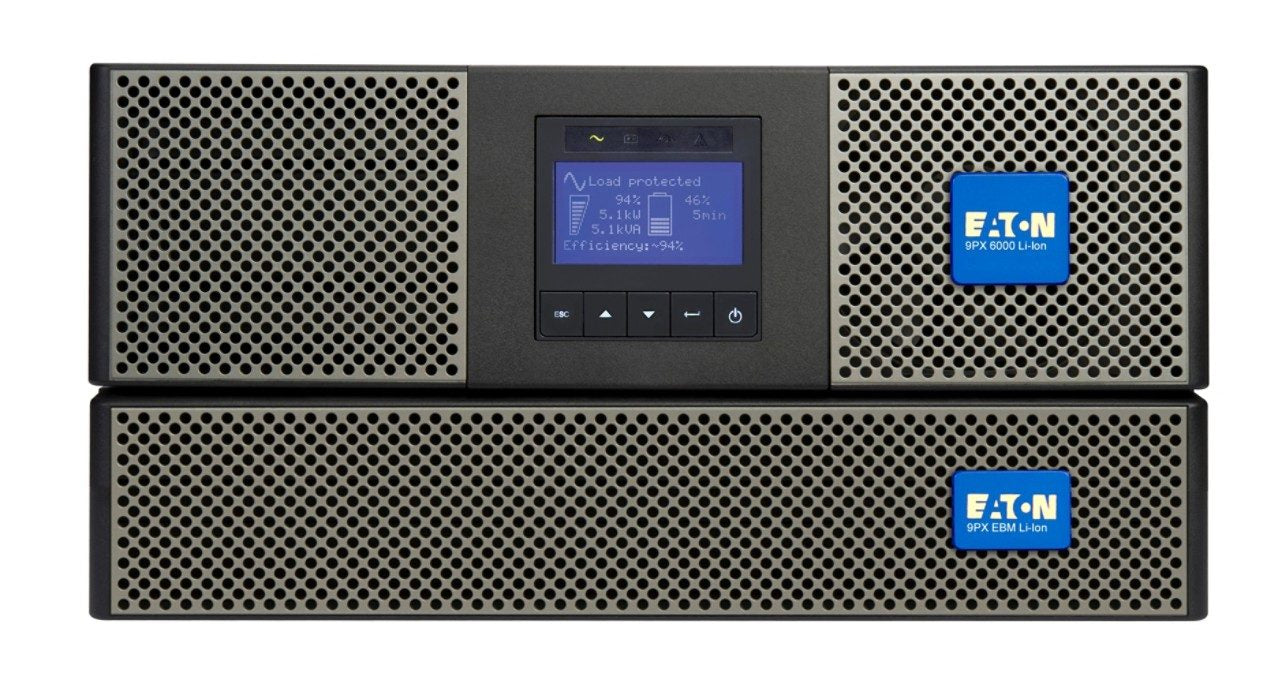

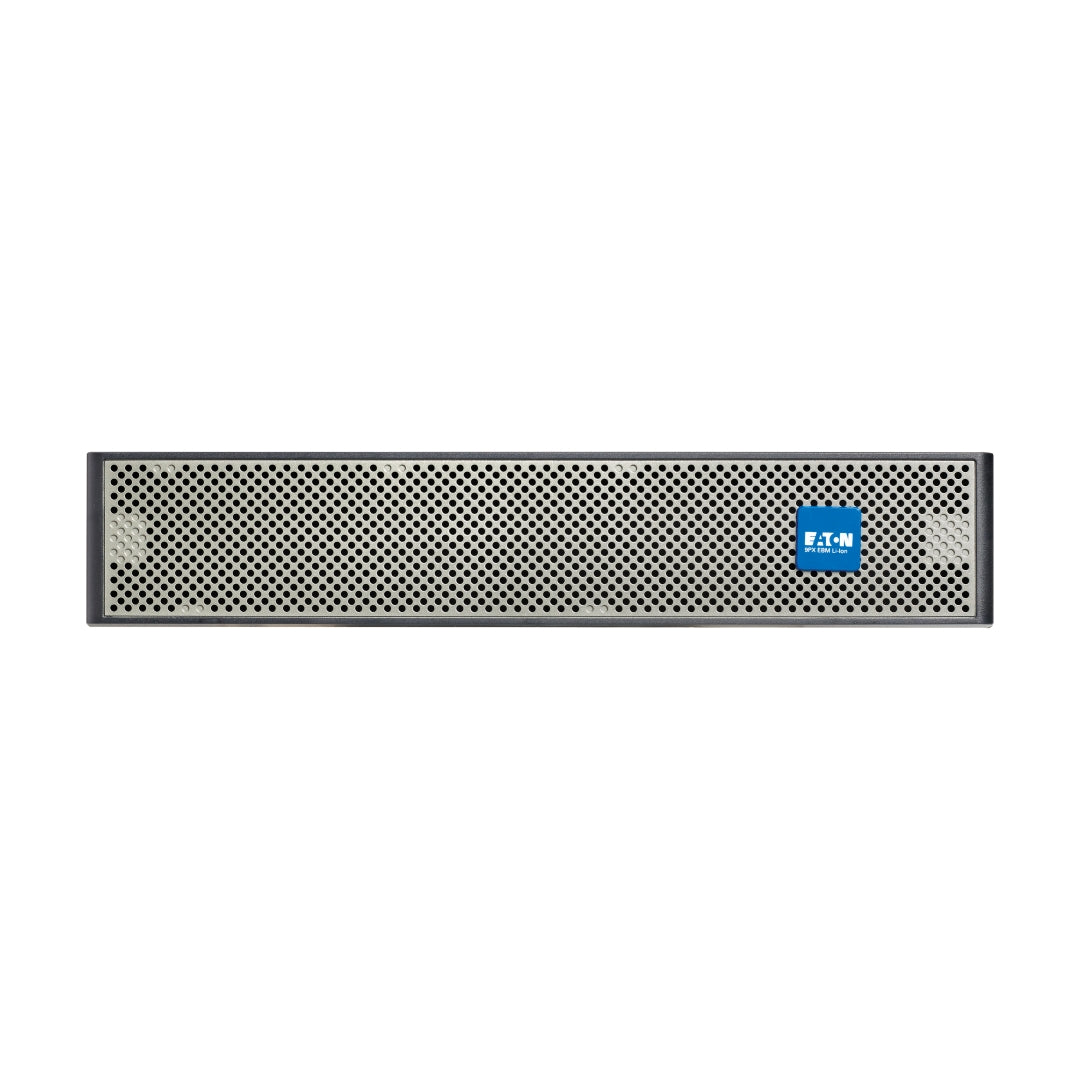

9PX 6 kVA lithium-ion extended battery module

Catalog number	9PXEBM192RT2U-L
Description	Extended battery module for 9PX6KIRTN-L
Rack size	2U
