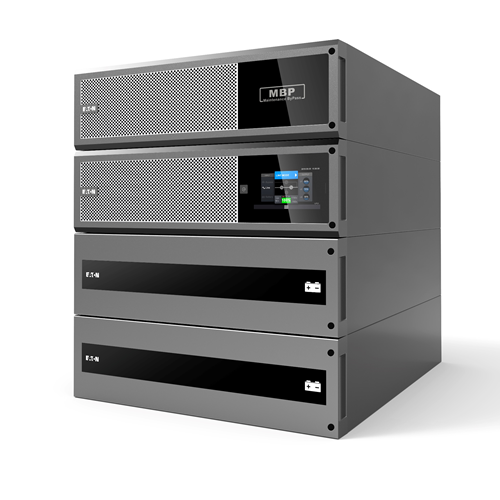

The 9SX15KPMAU and 9SX20KPMAU are UPS power modules in a 3U rack and tower form factor. They ship without internal batteries -- the 9SXEBM480RT6U external battery module provides runtime, and the MBP20K series maintenance bypass panels enable safe servicing without interrupting connected loads. A parallel bypass panel (MBP20KPARA) supports two units in N+1 redundancy configuration.

Indigi Power and Cooling supplies the full Eaton 9SX AP range across Australia with installation, commissioning and ongoing maintenance services available nationally. Contact us on 1800 046 344 or request a quote below.

Eaton 9SX AP Key Specifications

Eaton 9SX AP Model Range and Part Numbers

Why the Eaton 9SX 15kVA and 20kVA

The Eaton 9SX AP models fill the critical capacity gap between the standard 9SX range (up to 3kVA) and the three-phase 9355 (from 10kVA with three-phase output). For Australian sites needing a 15kVA or 20kVA online double-conversion UPS with the flexibility of single-phase or three-phase input, the 9SX AP is often the most compact and cost-effective solution.

Applications for the Eaton 9SX 15kVA and 20kVA

• Data centre server rooms: online double-conversion at 15 to 20kVA with zero transfer time for IT infrastructure. The server room UPS guide covers sizing and topology selection.
• Telecommunications rooms: stable sine wave output at scale for telecoms cabinets and exchange infrastructure
• Medical and healthcare: UPS protection for imaging systems, theatre equipment and clinical IT requiring zero transfer time. Configurable phase input suits hospital switchboard configurations.
• Industrial and manufacturing: robust online topology for PLC and SCADA systems in environments with variable power quality
• N+1 parallel deployments: the MBP20KPARA bypass panel enables two 9SX AP units in parallel redundancy, doubling capacity or providing N+1 without additional external switchgear

Eaton 9SX AP FAQs

Related Products and Services

• Eaton Single Phase UPS Range (full collection)
• Eaton Three Phase UPS Range (9355, 93PM, 9395)
• Eaton UPS Accessories -- Network Cards, Rail Kits and EBM Cables
• Single Phase UPS Installation and Commissioning Australia
• Eaton UPS Maintenance and Service Contracts
• Server Room UPS and Cooling Australia
• Eaton UPS Fault Codes and Troubleshooting Guide

Specifying and Sizing the Eaton 9SX 15kVA and 20kVA

Correctly sizing a 15kVA or 20kVA UPS for a server room or data centre application requires a load assessment covering all connected IT equipment, networking, storage and the CRAC cooling system where applicable. The 9SX AP models are rated at unity power factor -- 15kVA equals 15kW and 20kVA equals 20kW -- which means the kW and kVA figures are identical, simplifying load calculations for modern server infrastructure.

As a general guide, a 15kVA Eaton 9SX is suited to server rooms with a connected IT load of approximately 10 to 12kW (allowing 20 to 25 percent growth headroom). A 20kVA unit suits environments with a connected load of 14 to 16kW. For higher loads, two 9SX20KPMAU units in parallel via the MBP20KPARA panel provide up to 40kW at N+1 redundancy without requiring a transition to a larger three-phase system.

Use our UPS runtime and battery sizing calculator to estimate runtime from the 9SXEBM480RT6U external battery module at your specific load. For a validated specification with full bill of materials and installation quote, contact our team on 1800 046 344.

Eaton 9SX AP Installation and Commissioning in Australia

The Eaton 9SX 15kVA and 20kVA are hardwired systems requiring a licensed electrical contractor for installation. The UPS power module, external battery module and maintenance bypass panel must all be interconnected by a qualified electrician following the Eaton installation documentation and AS/NZS 3000 wiring rules.

Commissioning of a 9SX AP installation includes input and output voltage verification, battery connection and initial charge confirmation, bypass transfer testing, alarm and network card configuration (SNMP, Modbus or HTTPS as required) and a written commissioning report confirming the system is ready for live operation.

Indigi Power and Cooling provides professional installation and commissioning of the Eaton 9SX 15kVA and 20kVA across Australia, including Brisbane, Sydney, Melbourne, Perth, Adelaide and Darwin. Our technicians hold the required electrical licences and follow Eaton manufacturer commissioning procedures for every installation.

See our UPS installation and commissioning page for typical timelines and pricing, or contact us for a fixed installation quote specific to your site.

Eaton 9SX AP Maintenance and Battery Replacement

The Eaton 9SX 15kVA and 20kVA are UPS power modules with no internal battery. The external battery module (9SXEBM480RT6U) contains sealed lead-acid VRLA batteries with a typical service life of 3 to 5 years in Australian ambient temperature conditions. Battery life is reduced significantly in high-ambient-temperature environments such as those found in Queensland, Western Australia and the Northern Territory -- regular battery testing and earlier replacement is recommended for these sites.

Preventative maintenance for the Eaton 9SX AP should be performed at minimum annually and quarterly for mission-critical environments. A standard service visit includes battery condition testing under load, input and output voltage and waveform verification, connection torque check, alarm and bypass system test, and a written service report.

Indigi Power and Cooling provides Eaton UPS maintenance contracts and emergency callout services across Australia. See our UPS maintenance plans page for annual contract pricing, or contact us on 1800 046 344 for an emergency service request. For replacement batteries and accessories, see our Eaton SLA UPS batteries collection.
