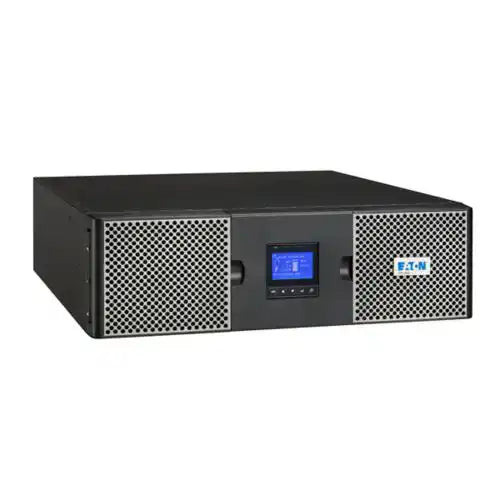

A fault alarm on your Eaton 9PX is not the unit breaking down, it is the UPS telling you it needs attention. The 9PX is an online double-conversion UPS built to protect servers, network racks, medical devices and industrial controls, and it constantly monitors its batteries, load, temperature and supply. When something moves outside a safe window, it raises a named alarm on the LCD, changes the status LED and sounds an audible pattern.

Below are the six faults our technicians see most often on 9PX units in the field, in plain language, with the checks you can safely make yourself and the point at which you should stop and call for service. For the complete alarm and fault-code table, including the LED and beep meanings and the less common inverter and DC bus faults, see our full reference page: Eaton 9PX Fault Codes and Troubleshooting.

First, read the front panel and event log

Before you touch anything, read what the 9PX is actually reporting. The status LED gives you the headline: green is normal, orange means bypass or a warning, and red means an active fault. The audible pattern tells you the urgency, from a single beep every ten seconds in battery mode to a continuous alarm on a hard fault. For the exact condition, open the event log by pressing the menu button and scrolling to Control or Event Log. Each entry is timestamped. Write down the fault text and the time, because that single line is what lets a technician diagnose the unit without guessing.

1. Battery fault

This is the fault we see more than any other. A battery fault or a replace battery message usually means the 9PX ran its automatic self-test and found the battery string outside specification, either low voltage, reduced capacity or high impedance. On sealed lead-acid batteries that typically happens at three to five years, and sooner in a warm room.

What to check: confirm the battery connector is fully seated and any external battery breaker is closed, since a No battery message is often just a loose connection rather than a dead pack. If the unit reports low runtime but otherwise tests fine, leave it on utility power for up to 48 hours to fully recharge, then run the battery test again from the menu.

When to replace: if the test fails after recharging, the cartridge is at end of life and needs replacing. Heat is the main culprit here, because every 8 to 10 degrees Celsius above 25 degrees can roughly halve lead-acid battery life. Indigi carries genuine Eaton replacement cartridges and completes most on-site swaps in around 30 minutes.

2. Overload

An overload alarm means the connected equipment is drawing more than the 9PX is rated to supply. The unit will tolerate a small overload only briefly before it protects itself by transferring to bypass or shutting down, and the bigger the overload, the less time you have.

What to do: unplug non-essential equipment to bring the load back under 80% and the alarm should clear. If your 9PX keeps hitting overload, the real fix is right-sizing rather than resetting. It usually means the load has grown past what the unit was specified for, and a larger 9PX or a better-matched model is the answer. Our Eaton UPS range covers 1kVA to 11kVA in the 9PX family, and Indigi can measure your true draw during a site visit.

3. Unplanned bypass mode

If your 9PX shows bypass mode and you did not put it there, it has switched your equipment onto raw mains power because it could no longer support the load through its inverter. The important thing to understand is that your gear still has power, but it is no longer protected. If the mains drops now, everything goes down.

What to check: the usual triggers are an overload, an internal fault, or repeated automatic transfers. Clear any overload first, then read the event log for the underlying reason. If the unit returns to normal online operation once the overload is gone, you are fine. If it keeps falling back to bypass, or it went to bypass with no overload present, stop forcing it back and treat it as an internal fault that needs service.

4. Overtemperature

An overtemperature alarm means the 9PX has passed its internal or ambient temperature limit. UPS units run hot, and they rely on clear airflow to stay within spec.

What to check: make sure the front and rear vents are not blocked, that rack doors or nearby equipment are not trapping heat, and that the room cooling is actually working. In a sealed comms cupboard, an overtemperature alarm is often a room problem rather than a UPS problem. High heat does not just trip the alarm, it silently ages the battery, which is why a hot install so often ends up with an early battery fault as well. Persistent thermal alarms usually point to inadequate cooling, which is where our server room cooling services come in.

5. Fan fault

A fan fault or fan lock means one of the cooling fans has seized or failed. This one matters because the fan is what keeps the power electronics within temperature, and a 9PX with a dead fan will usually drift into an overtemperature condition and drop to bypass before long.

What to do: the cooling fans are not a user-replaceable item on the 9PX, so a fan fault is a service call. Do not keep running the unit under load with a known fan failure. Book a technician to replace the fan before the heat causes a secondary fault.

6. Site wiring fault

A site wiring fault is the 9PX warning you that something is wrong with the circuit feeding it, most commonly reversed line and neutral or a missing earth at the outlet. This is not a fault inside the UPS.

What to do: this must be corrected by a licensed electrician in line with AS/NZS 3000. A reversed or unearthed supply is a genuine safety hazard, not just a UPS nuisance, so do not bypass the warning or try to work around it. When Indigi commissions a 9PX we verify supply polarity and earthing as part of the install, which avoids this fault appearing later. You can read more on that under single phase UPS installation and commissioning.

When to stop and call a technician

You can safely handle the load and environment issues yourself: reduce an overload, clear blocked vents, reseat a battery connection, or call an electrician for a wiring fault. You should call a UPS technician when you see a battery fault that persists after recharging, a charger fault, a fan fault, an output short circuit, or anything that mentions the inverter, DC bus or an internal fault. A simple rule holds up well in practice: a red LED with a continuous alarm and a fault in the log is a service call, not a reset. Never open the chassis yourself, because a 9PX can hold a lethal voltage on its internal capacitors even when it is unplugged.

For the complete list of 9PX alarms and fault codes, including the ones not covered in this walkthrough, use our reference page: Eaton 9PX Fault Codes and Troubleshooting.

How Indigi keeps 9PX faults from becoming outages

Most 9PX faults are predictable. Batteries age on a known curve, cooling degrades, and load creeps up as more gear is added to a rack. A preventative maintenance visit catches all three before they become an alarm at 2am. On a service visit we run a battery capacity and impedance test, check load and transfer behaviour, clean and verify the cooling path with thermal imaging, and read the event log for early warning signs. Combined with genuine Eaton battery replacement, that is what turns an unplanned outage into a planned, quick swap. See our UPS maintenance and maintenance plans for what is included.

Frequently asked questions

What is the most common Eaton 9PX fault?

Battery fault is by far the most common. It usually means the automatic self-test found the battery string outside specification due to age, heat or a loose connection. Reseating the connection and recharging can clear a false alarm, but a genuine battery fault after three to five years means the cartridge needs replacing.

How do I clear a fault on my Eaton 9PX?

First identify the fault in the event log, then fix the cause rather than just silencing the alarm. Reduce an overload, clear blocked vents, or reseat a battery connection as appropriate. Load, environment and wiring issues clear once corrected. Hard faults involving the inverter, DC bus, fan or charger will not clear with a reset and need a technician.

Is it safe to keep using a 9PX that is in bypass?

Only briefly. In bypass your equipment runs on raw mains with no UPS protection, so a power event will take it down. Use bypass to buy time while you clear the cause, but if the unit will not return to online operation, arrange service rather than leaving it unprotected.

Why does my 9PX keep going to battery then back to normal?

Brief, repeated transfers to battery usually mean an unstable mains or generator supply that is drifting outside the acceptable voltage or frequency window. Check the event log for input voltage or frequency alarms. If the supply is the issue, the UPS is doing its job, but a persistent pattern is worth having an electrician investigate.

Does Indigi service Eaton 9PX units across Australia?

Yes. Indigi Power and Cooling provides on-site 9PX diagnosis, genuine Eaton battery replacement and preventative maintenance from hubs in Brisbane, Sydney and Melbourne, with planned coverage for Perth, Adelaide, Darwin, Tasmania and remote sites. Send us the fault text and your location to arrange a visit.
