PSPM20K

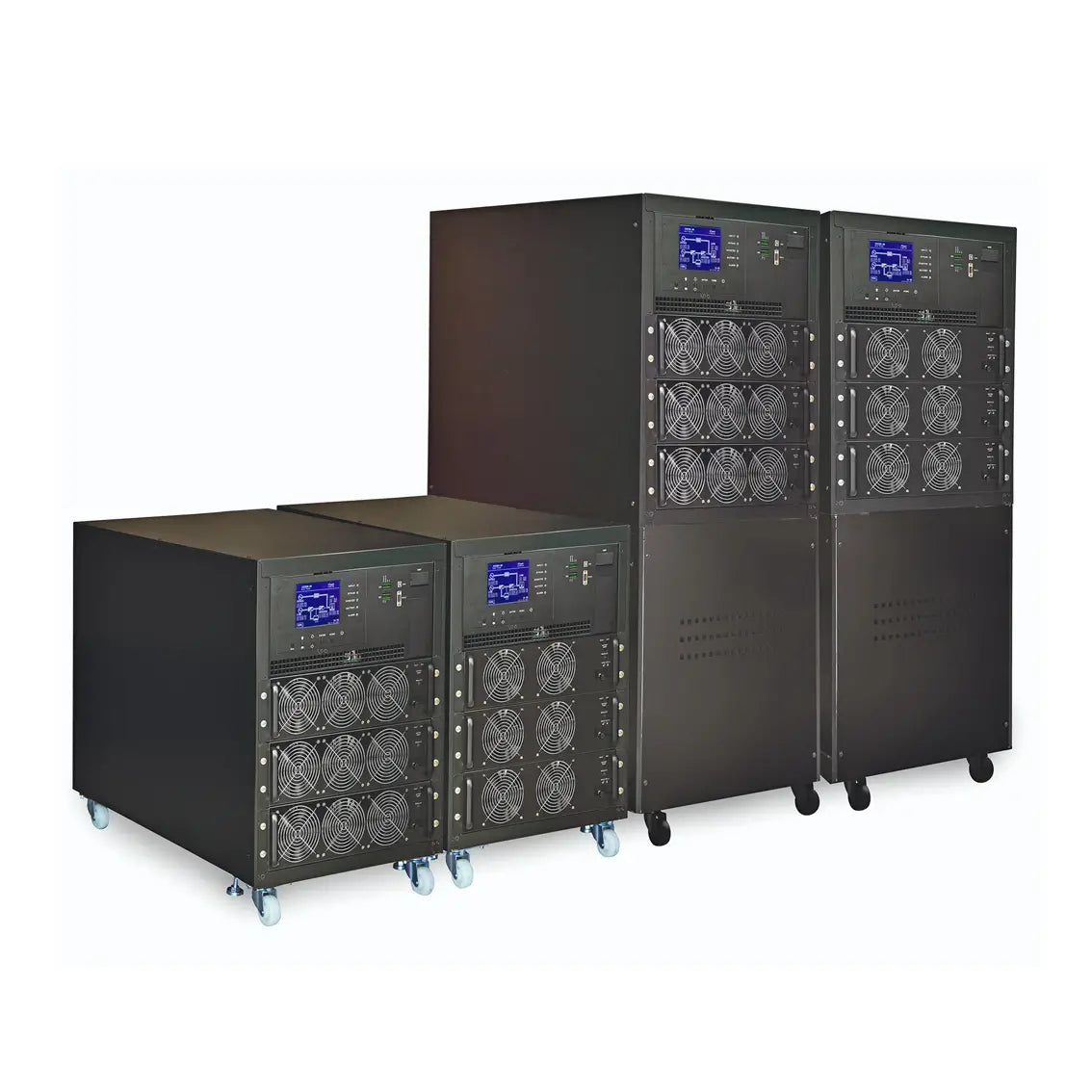

The Platinum Modular E UPS Range is designed with Australian conditions and requirements in mind.

The technology is based on a tried and tested platform ensuring reliability and performance.

The Platinum Modular E is designed to be used in a wide range of applications from data centres to manufacturing, hospitals, military and mining environments to name a few. It provides the best power solution for your critical equipment.

HIGH EFFICIENCY ONLINE DOUBLE CONVERSION
The Platinum Modular E utilises true online
double conversion technology with an
efficiency of up to 96%. This significantly
reduces overall Total Cost of Ownership (TCO).

HIGH SCALABILITY
Digital Signal Processor (DSP) control provides
an improved solution with high performance.
Integrated with modular design and parallel
technology, the Platinum Modular E simplifies
future power expansion.

UNITY OUTPUT POWER FACTOR
Platinum Modular E delivers unity output
power (kVA=kW) providing the maximum
power capacity to mission critical loads. It
satisfies the requirements of the latest servers
and optimises IT investment.

MODULAR DESIGN
Modular design is applied in power module,
static switch module and battery module. This
simplifies maintenance and replacement with
low Mean Time To Repair (MTTR).
As a result of modular design the Mean
Time Between Failure (MTBF) is significantly
increased.

FLEXIBLE BATTERY CONFIGURATION
Allows for options of 32, 36 or 40 batteries per
string

ADJUSTABLE CHARGING CURRENT
Platinum Modular E provides maximum 6A for
20kW and 8A for 30kW charging current for
every power module and it is adjustable based
on requirement.

HIGH OVERLOAD CAPABILITY
Platinum Modular E supports 110% overload
for 60 minutes, 125% for 10 minutes and
150% for 1 minute.

GRAPHIC 5.7” SCREEN/MIMIC/LCD DISPLAY
Designed for easy management, Platinum
Modular E is equipped with a 5.7” graphic
LCD screen. This interactive LCD display gives
information on the unit’s operation, alarm and
control. The LCD also includes an informative

N+1 PARALLEL REDUNDANCY
Scalable architecture allows you to optimize
cost expense to meet power demands by
vertically expanding in a single rack enclosure
from 20-60kW or 30-90kW and achieve N+1
redundancy in the same rack.
mimic display.
