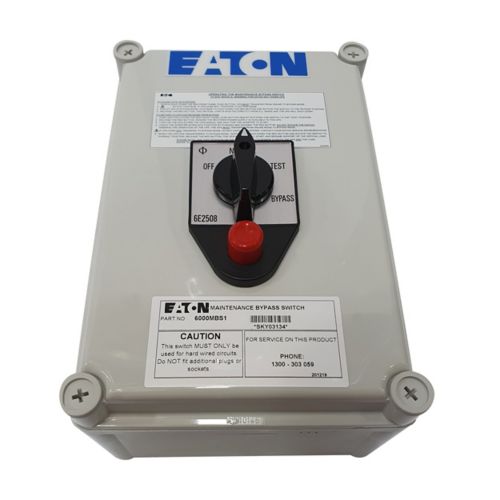

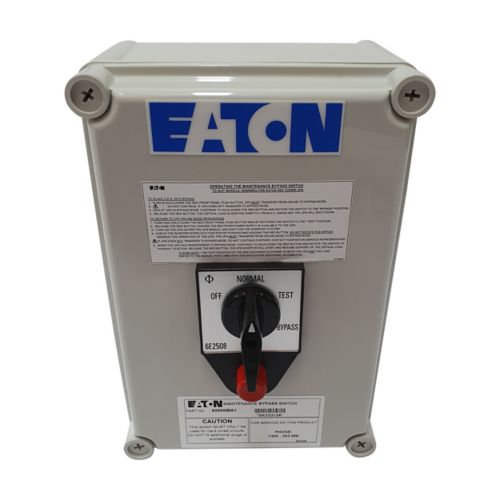

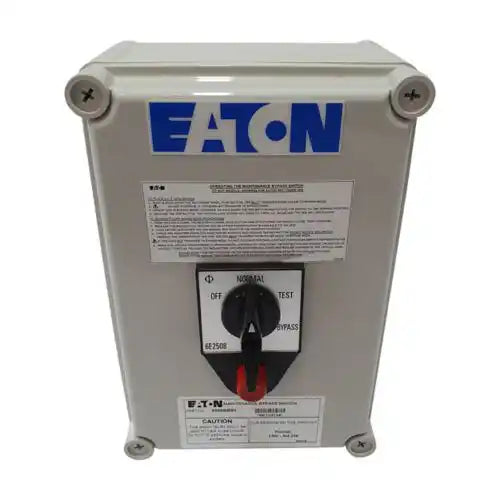

EATON 1-6KVA HARDWIRED INTERLOCKED EXTERNAL BYPASS (MAX 6MM2 CABLE) 1YR

Name: EATON 1-6KVA HARDWIRED INTERLOCKED EXTERNAL BYPASS (MAX 6MM2 CABLE) 1YR
Brand: Indigi Power & Cooling
Availability: InStock

6000MBS1

Eaton 1-6kVA Hardwired interlocked external bypass (max 6mm2 cable)

General specifications

Product Name	Eaton 9SX Maintenance Bypass Enclosure Wraparound Single Input
Catalog Number	6000MBS1
Product Length/Depth	171 mm
Product Height	278 mm
Product Width	190 mm
Product Weight	1.5 kg
Compliances	Contact Manufacturer
Certifications	Contact Manufacturer

Product specifications

Construction type	Free standing model
Color	Silver
Auto shutdown function	No
Type of Accessory	Bypass
Used with	9SX, 9130
Input connection	Hardwired/fixed connection
Input nominal voltage	230V default (220/230/240V)
Nominal frequency	50-60 Hz
Input frequency range	50Hz-60Hz
Number of outputs hardwired	1
Output nominal voltage	230V default (220/230/240V)
Electric current - max	32A
Feed type	1
Transfer time	0 ms
Standard factory warranty	1 Year
Communication	Voltage-free relay interlock
Potential free switch contact	Yes
Altitude	0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
Input voltage range	192-264 V
Output frequency	50-60 Hz
Output voltage range	192-264 V
Phase (input)	Single-phase
Phase (output)	Single-phase
