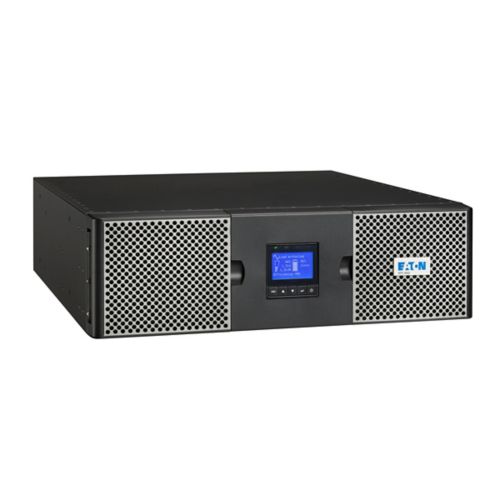

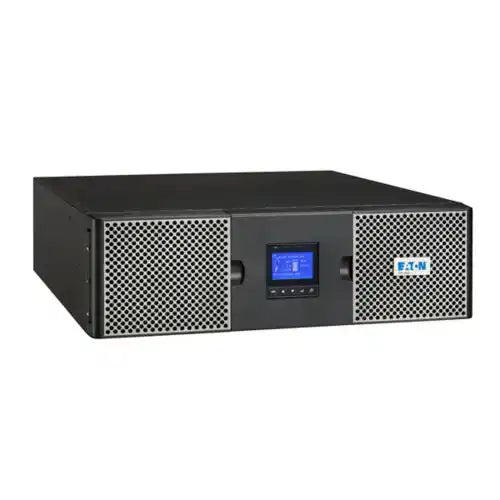

Eaton 9PX Marine UPS (1500W - 3000W)

The Eaton 9PX Marine is the world's first UPS in its class to deliver unity power factor (VA=W) - meaning every volt-amp of rated capacity delivers a full watt of real power. It provides 11% more usable power than any comparable marine UPS on the market, and it does it in a compact rack/tower convertible form factor engineered specifically for the demands of marine and offshore environments.

Approved by DNV GL and Energy Star certified, the 9PX Marine is designed to protect bridge systems, navigation equipment, communication infrastructure, and small computer and automation systems against all types of power disturbances at sea.

Indigi Power & Cooling supplies the full Eaton 9PX Marine range across Australia. For a detailed technical overview, download the Eaton Marine and Offshore UPS Brochure.

Key Features

• First UPS in its class with unity power factor (VA=W) - 11% more power than equivalent VA-rated competitors

• Online double conversion topology (VFI-SS-111) - zero transfer time, protects against all power disturbances

• DNV GL type approved for installation on all DNV GL classed vessels

• IEC/EN 60945 compliant with marine filter (9PXMF3KI, required for full compliance)

• Conformal coated boards and high-temperature environment compatibility for marine and offshore conditions

• Eaton ABM battery management technology - extends battery life by up to 50% through three-stage charging

• Hot-swappable internal batteries - replace without powering down

• Expandable runtime with up to 4 external hot-swappable battery modules (EBMs) for hours of backup

• Energy Star qualified - highest efficiency in its class (up to 97.5% in Hi-efficiency mode)

• Graphical LCD display with multilingual interface for clear UPS status and configuration

• USB and RS-232 communications plus one expansion slot for optional Network-MS, ModBus-MS, or Relay-MS card

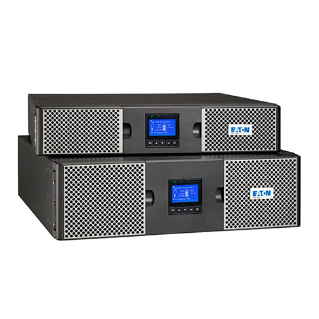

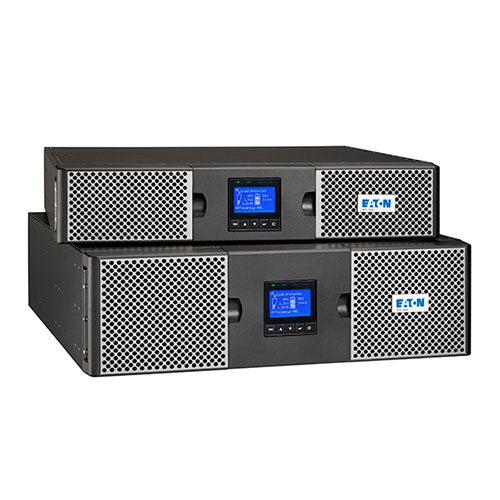

• Flexible rack/tower convertible form factor - 2U (1500W) or 3U (3000W)

• Input voltage range 176-276V (100-276V with derating), frequency 40-70Hz

Marine Certifications and Approvals

• DNV GL Type Approval (Certificate TAE00001WX)

• IEC/EN 60945 compliant (with marine filter)

• IEC/EN 62040-1 and IEC/EN 62040-2

• CE, Energy Star, cULus, CSA 22.2, EAC, RCM, KC, CB

Applications

The 9PX Marine protects critical onboard systems including bridge and navigation equipment, communication and satellite systems, ship automation controls, Voyage Data Recorders (VDR), small computer and server systems, CCTV and intercom, and emergency Public Address systems.

Models and Specifications

Note: A Marine Filter (9PXMF3KI) is required for full IEC/EN 60945 EMC compliance and must be ordered separately.

For the complete technical specification, marine type approval certificate, and the full Eaton marine UPS range from 1kVA to 200kW, download the Eaton Marine and Offshore UPS Brochure.

Not sure which marine UPS is right for your vessel? Contact Indigi Power & Cooling for expert advice and an obligation-free quote.
