Eaton 9SX Marine UPS (1000VA - 3000VA)

The Eaton 9SX Marine is the successor to the market-leading 9130 Marine UPS - a single-phase online double-conversion UPS purpose-built for marine and offshore environments. Available in 1000VA (900W) and 3000VA (2700W) tower configurations, the 9SX Marine is DNV GL type approved (with installation kit and marine filter), delivering zero transfer time power protection with conformal coated boards, vibration absorbers, and high-temperature compatibility for shipboard and offshore platform installations.

With its compact footprint, hot-swappable internal batteries, and support for up to four external battery modules (EBMs), the 9SX Marine can provide hours of runtime for critical onboard systems including bridge equipment, navigation, communications, and automation.

Indigi Power & Cooling supplies, installs, and supports Eaton 9SX Marine UPS systems across Australia and the Pacific. Contact us for an obligation-free quote.

---

Key Features

DNV GL Type Approved Marine Design

• DNV GL type approved (when installed with installation kit and marine filter - sold separately)

• Conformal coated boards for humidity, salt air, and chemical resistance

• High-temperature environment compatibility

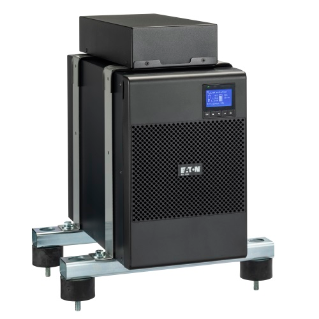

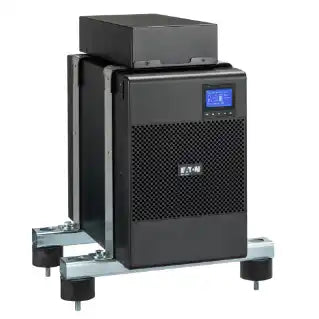

• Installation kit includes vibration absorbers mounted under the UPS cabinet

• Mounting rails can be bolted or welded to the deck, bulkhead, or shelf

• Compact tower form factor designed for space-constrained vessel installations

• Marine filter included for full DNV GL compliance

Online Double-Conversion Power Protection
The 9SX Marine uses online double-conversion topology with Power Factor Correction (PFC), continuously monitoring and regulating voltage and frequency. Connected equipment is completely isolated from all input power anomalies. Zero transfer time to battery ensures seamless protection during generator switching, frequency variations, and mains disturbances common in marine power systems.

0.9 Output Power Factor - 28% More Power
With a 0.9 output power factor, the 9SX Marine delivers up to 28% more usable watts than equivalent VA-rated UPS systems with lower power factors - protecting more critical equipment per unit and eliminating the need to oversize.

Eaton ABM Battery Management
Advanced Battery Management (ABM) uses an intelligent three-stage charging technique that extends battery service life by up to 50% compared to conventional float charging. The 9SX Marine also provides a recommended battery replacement date based on continuous battery condition monitoring - removing guesswork from maintenance scheduling on board vessels where service resources are limited.

Hot-Swappable Internal Batteries and EBMs
Internal batteries are hot-swappable - replacement without powering down critical systems. Up to four external battery modules (EBMs) can be added for extended runtime, automatically recognised by the UPS without configuration. Runtime can be extended from minutes to hours depending on the number of EBMs fitted.

Marine Mode and Frequency Converter Operation
Configurable for Marine Mode (output frequency follows input frequency), frequency converter operation from 50Hz to 60Hz, and 60Hz to 50Hz - supporting vessels operating in different international waters and power environments.

Graphical LCD Display
7-language graphical LCD with adjustable display angle for optimal visibility in both tower and rack orientations. Provides UPS status, measurements, alarm history, energy consumption, load segment control, and battery runtime at a glance. LCD position adjustable for tower and shelf installations.

Load Segment Control
Two independently controllable outlet groups enable priority-based shutdown of non-essential equipment to maximise battery runtime for the most critical devices during an extended outage.

Energy Metering
The 9SX Marine can meter energy consumption in kWh - monitored via the LCD or Eaton Intelligent Power Manager software for vessel energy management.

Intelligent Power Software Integration
Compatible with Eaton Intelligent Power Manager (IPM) and Intelligent Power Protector, integrating with virtualisation environments and supporting automated graceful shutdown of servers and computers during extended battery operation.

Internal Automatic Static Bypass
Internal automatic static bypass provides service continuity in the event of an internal UPS fault. An optional external maintenance bypass switch is available for UPS replacement without powering down connected systems.

---

Applications

The Eaton 9SX Marine provides advanced protection for critical single-phase onboard systems:

• Bridge systems and integrated bridge platforms

• Navigation systems (ECDIS, radar, AIS, GPS, chartplotters)

• Communication systems (VHF, GMDSS, satellite, SSB)

• Small computer and automation systems

• Voyage Data Recorders (VDR)

• CCTV and intercom systems

• Ship management software workstations

• Offshore platform instrumentation and control

---

Technical Specifications

---

Runtime Table (Approximate - Minutes)

Runtime values are approximate and vary with battery age, temperature, and load characteristics.

---

Communications and Connectivity

---

Certifications and Compliance

Important: DNV GL type approval applies when the 9SX Marine is installed with the Eaton installation kit (vibration absorbers) and the Eaton marine filter. Both are required and must be ordered separately.

---

Available Accessories

---

Supply, Installation and Support

Indigi Power & Cooling supplies, installs, and supports Eaton 9SX Marine UPS systems across Australia and the Pacific region, including Papua New Guinea and offshore vessel operations. Our team can advise on DNV GL compliance requirements including the installation kit and marine filter, EBM configurations for extended runtime, and appropriate communication card selection for vessel monitoring systems.
