PSATS6K

Seamless Power Switching with Built-In Redundancy

The PowerShield ATS is designed to ensure continuous power availability by connecting to two independent power sources a primary and a secondary. In the event of a primary source failure, the ATS automatically transfers the load to the secondary supply, maintaining uninterrupted operation of connected equipment.

More than just a transfer switch, this versatile unit also functions as a Maintenance Bypass Switch (MBS) and a Power Distribution Unit (PDU). With user-selectable input control via the front panel, it enables live UPS maintenance or replacement without disrupting power to the load ideal for servers and other critical devices with only a single power input.

The PowerShield ATS is a reliable, space-efficient solution for maintaining uptime in mission-critical environments, where power continuity and serviceability are non-negotiable.

Key features include:

• Critical load (server) has reliability of two independent power sources .
• Ideal for ensuring reliable power to critical devices that have only a single power supply

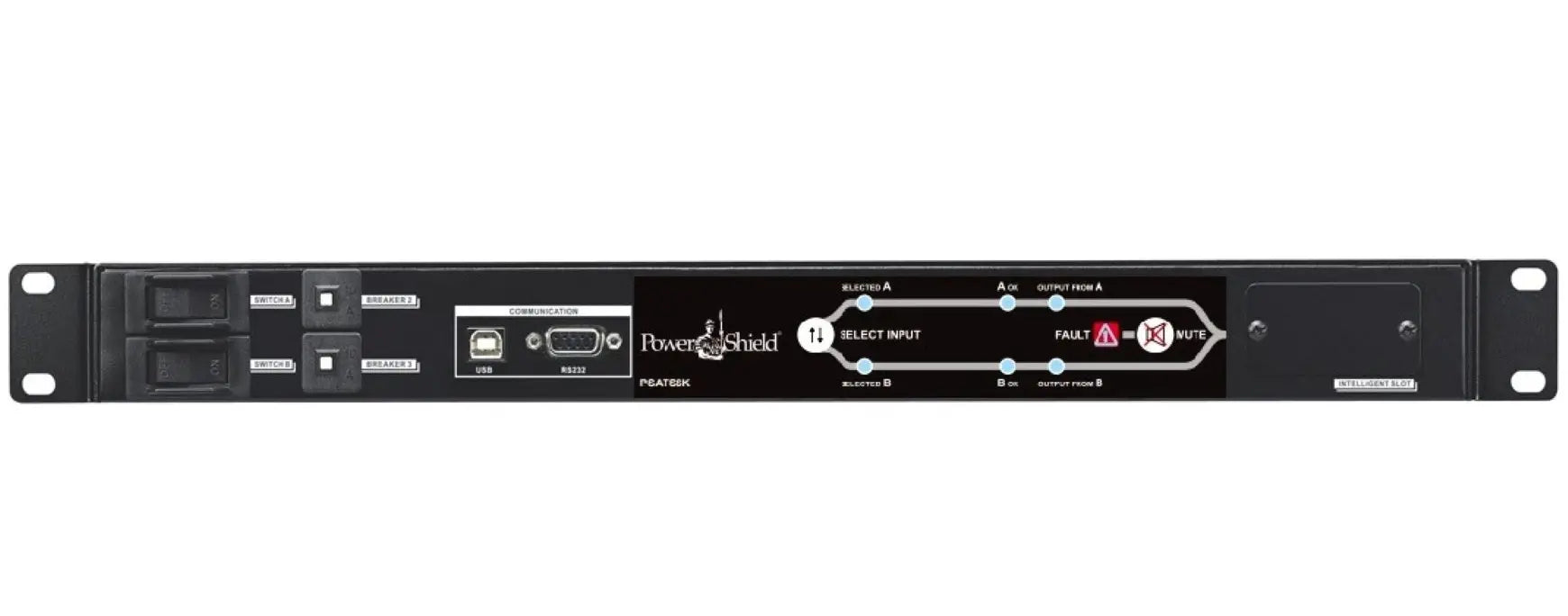

• User selectable power source from front panel.
• Dual power supply for redundancy.
• Hardwired Input / Hardwired & IEC outputs for load connection flexibility
• Provides seamless power switch for IT equipment.
• Highly reliable 19″ (1RU) rack design to fit into diverse working environment.
• Built-in USB and RS232.
• AS400 dry contacts included.
• SNMP remote monitoring option available.
• Two year warranty.
