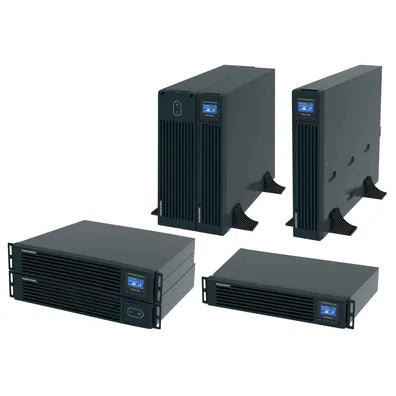

Socomec | NRT4-U050-CK | Netys RT4 5kVA rack 4U/tower UPS + 1 EBM, Online Double Conversion

The Socomec Netys RT4 NRT4-U050-CK is a 5kVA/5kW online double conversion UPS, designed to provide robust power protection for critical IT equipment. This unit comes with one external battery module (EBM) for extended runtime and features "C" conformal coated PCBs, making it suitable for demanding environments. Its universal tower and 4U rack design includes a rail kit for flexible installation. It supports parallel operation up to 3 units for increased capacity or redundancy. Communication options include a USB port and a slot for an optional SNMP card. Input and output connections are hardwired, with an optional manual bypass available. This UPS ensures a clean and stable power supply, filtering out any disturbances from the mains.

FEATURES

• 5kVA/5kW Online Double Conversion
• Includes 1 External Battery Module (EBM)
• "C" Conformal Coated PCBs
• Universal Tower and 4U Rack Design
• Includes 1 Rail Kit
• Parallel operation up to 3 units
• USB Comms Port
• Slot for Optional SNMP Card
• Hardwire Terminals Input & Output
• Optional Manual Bypass Available

SPECIFICATIONS

• Power: 5kVA / 5kW
• Topology: Online Double Conversion
• Input Voltage: 110-276V
• Output Voltage: 200-240V
• Output Frequency: 50/60Hz
• Output Power Factor: 1
• Efficiency (Online Mode): Up to 95.17%
• Input Connection: Hardwired Terminals
• Output Connection: Hardwired Terminals
• Mounting: Rack (4U) / Tower
• Communication Ports: USB
• SNMP Slot: Yes (Optional)
• Parallel Capability: Up to 3 units
• Operating Temperature: 0°C to +45°C
• Dimensions: 438mm x 570mm x 86.3mm
• Weight: 13.7kg

WARRANTY

2-Years Limited Warranty
