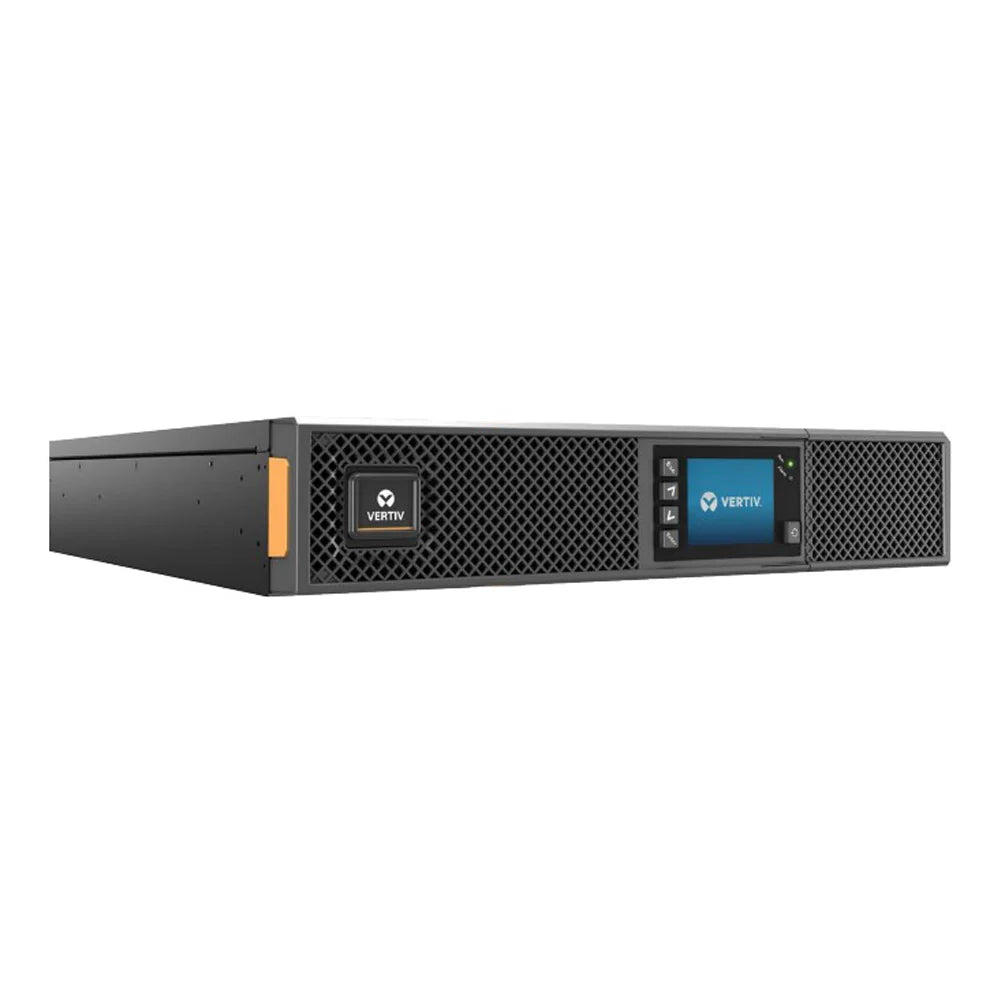

Vertiv Liebert GXT5-750IRT2UXL 750VA Online Double Conversion UPS Australia
Vertiv Liebert GXT5-750IRT2UXL 750VA Online Double Conversion UPS Australia
Vertiv Liebert GXT5 / Single Phase Online UPS / 750VA
The Vertiv Liebert GXT5-750IRT2UXL is a 750VA / 750W single phase, online double conversion rack or tower UPS with unity power factor and efficiency up to 94%, supplied, installed and maintained across Australia by Indigi Power and Cooling. It delivers continuous, fully conditioned power to servers, network racks and edge sites, and ships with a Vertiv RDU120 network card and a 3-year warranty. Indigi Power and Cooling is an Indigenous and Veteran-owned critical power specialist, Supply Nation and ICN Gateway registered.
The Vertiv Liebert GXT5-750IRT2UXL is the entry point of the Liebert GXT5 online double conversion family, sized at 750VA and, thanks to a unity output power factor of 1.0, a full 750 watts of usable output. Online double conversion (VFI classification) means the connected load is always powered from a regenerated sine wave, fully isolated from the raw mains, so voltage sags, surges, frequency drift, harmonics and brownouts never reach your equipment. For server rooms, comms rooms and edge network cabinets that cannot tolerate a break in clean power, this is the topology that matters.
In a compact 2U chassis that installs equally well as a rack unit or a free-standing tower, the GXT5-750IRT2UXL packs a color graphic LCD with gravity-sensing orientation, individually programmable output sockets, hot-swappable batteries and a Vertiv Liebert IntelliSlot RDU120 network card in the box. It runs at high efficiency in online mode and up to 98% in ECO mode, and Indigi Power and Cooling supplies it Australia-wide with optional installation, commissioning and ongoing maintenance from our Brisbane, Sydney and Melbourne hubs.
Vertiv Liebert GXT5 overview
Vertiv Liebert GXT5 flexible online UPS range for edge and server room applications.
Why the GXT5-750IRT2UXL leads its class
Unity power factor (1.0)
750VA equals a full 750W of real power. You can load it with more IT equipment than a 0.9 power factor UPS of the same VA rating, saving rack space and cost.
True online protection
Double conversion (VFI) isolates the load from all nine common power problems with zero transfer time, delivering a pure sine wave regardless of what the mains is doing.
Efficiency up to 94% / 98% ECO
High efficiency in online double conversion mode and up to 98% in ECO mode lowers running cost and heat load in the rack, and it is Energy Star certified.
Intelligent battery management
Battery health status and replacement-date prediction, temperature-compensated charging and hot-swappable modules extend service life and cut unplanned downtime.
Network card included
A Vertiv Liebert IntelliSlot RDU120 card ships in the box for SNMP, web and Power Insight remote monitoring, with no extra accessory to buy.
Scalable runtime

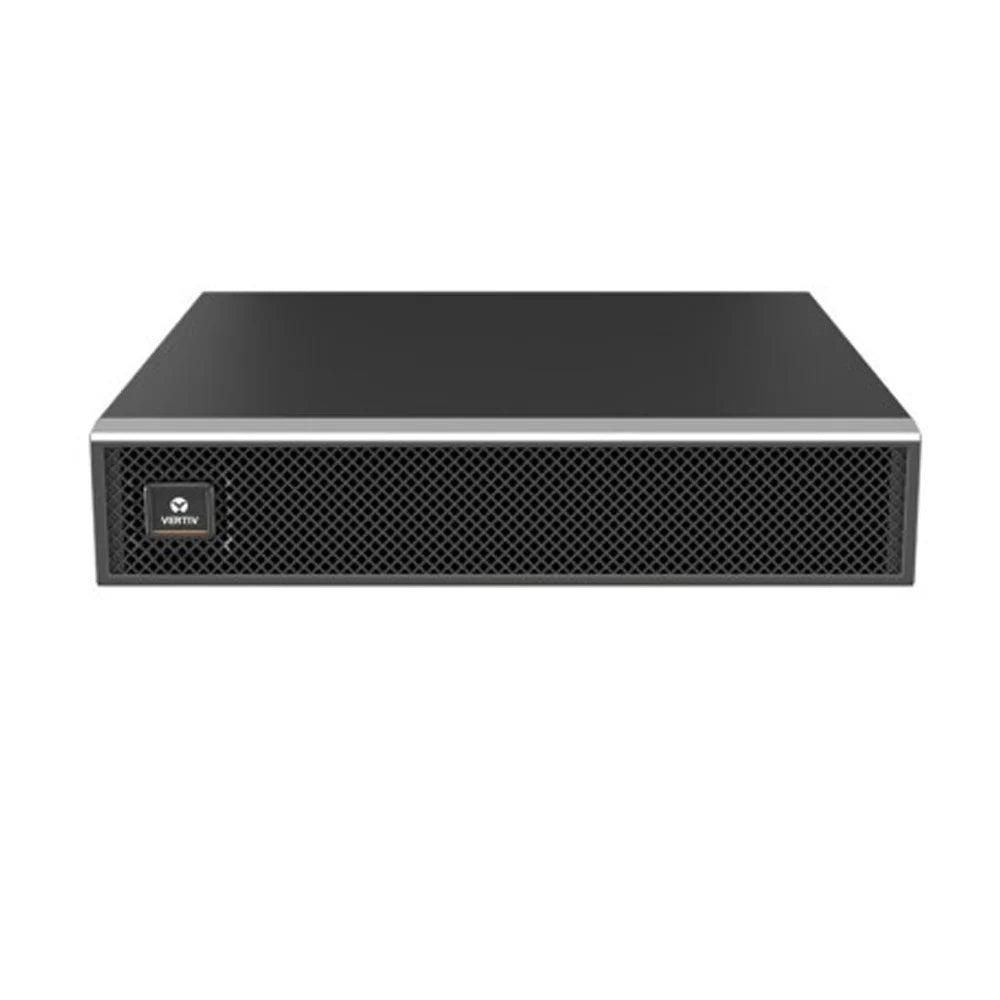

Add a GXT5-EBC36VRT2U external battery cabinet to extend backup from 10.5 minutes to over 46 minutes at full load, with auto-detection for accurate runtime reporting.
GXT5-750IRT2UXL specifications
| Part number | GXT5-750IRT2UXL |
|---|---|
| Rating (VA / W) | 750VA / 750W (unity power factor 1.0) |
| Topology | Online double conversion (VFI), single phase 230V |
| Form factor | 2U convertible rack / tower |
| Efficiency | Up to 94% online double conversion, up to 98% ECO mode |
| Dimensions (W x D x H) | 430 x 400 x 85 mm |
| Unit weight | 16.8 kg |
| Input connector | IEC 60320 C14, input range 115 to 288 VAC, 40 to 70 Hz auto-sensing |
| Output receptacles | 8 x IEC 60320 C13, pure sine wave, 200/208/220/230/240 VAC selectable |
| Backup time (internal) | 10.5 min at 100% load, 25.7 min at 50% load |
| Backup time (+1 cabinet) | 46.3 min at 100% load, 103.2 min at 50% load |
| Battery type | Valve-regulated, non-spillable lead acid, hot-swappable |
| Communications | RDU120 network card (included), USB, RS232, dry contacts, Power Insight software |
| Operating temperature | 0 to 40 degrees Celsius |
| Surge and safety | EN 61000-4-5, ANSI C62.41 Category B, EN 62040-1, RCM marked |
| Warranty | 3-year Vertiv limited warranty (ANZ) |
GXT5 750VA to 3kVA range at a glance
The GXT5-750IRT2UXL shares its 2U rack/tower platform with the rest of the entry Liebert GXT5 family. If your load is likely to grow, the following models step up in the same footprint.
| Model | Rating | Runtime at 100% | Weight |
|---|---|---|---|
| GXT5-750IRT2UXL | 750VA / 750W | 10.5 min | 16.8 kg |
| GXT5-1000IRT2UXL | 1000VA / 1000W | 6.8 min | 16.8 kg |
| GXT5-1500IRT2UXL | 1500VA / 1500W | 5.6 min | 21.4 kg |
| GXT5-2000IRT2UXL | 2000VA / 2000W | 3.2 min | 21.4 kg |
| GXT5-3000IRT2UXL | 3000VA / 3000W | 3.3 min | 28.5 kg |
Applications for the GXT5-750IRT2UXL
At 750VA the GXT5-750IRT2UXL is ideally matched to smaller critical loads that still demand true online protection: a single server, a network switch stack, a comms cabinet, a POS controller, a security or access-control head-end, medical and diagnostic equipment, or a small edge computing node. Because it is online double conversion rather than line-interactive, it suits sites with unstable or generator-backed power where frequency and voltage wander.
- Edge computing and micro data centre nodes in retail, industrial and remote sites
- Network and comms racks, switches, routers and firewalls
- Single-server rooms, NAS and backup appliances for small business
- Healthcare, imaging and laboratory equipment requiring clean power
- Security, CCTV, access control and building management head-ends
For larger loads, step up through the Vertiv single phase UPS range, and if you are protecting a full rack or room, pair the UPS with cooling through our server room cooling service. Not sure of your runtime target? Use the UPS runtime and battery sizing calculator.
GXT5-750IRT2UXL vs a typical line-interactive UPS
The most common mistake at this capacity is choosing a line-interactive UPS to save money. The table below shows why the online double conversion GXT5 is the safer choice for critical loads.
| Feature | GXT5-750IRT2UXL | Typical line-interactive UPS |
|---|---|---|
| Topology | Online double conversion, zero transfer time | Transfers to battery, 2 to 10 ms break |
| Power factor | 1.0 (750W from 750VA) | Usually 0.9 or lower |
| Output waveform | Pure sine wave, always regenerated | Sine on battery, raw mains otherwise |
| Remote management | RDU120 network card included | Network card often extra |
| Runtime expansion | External battery cabinets with auto-detect | Limited or none |
Installation and maintenance across Australia
The GXT5-750IRT2UXL connects to a standard IEC C14 inlet and is straightforward to deploy, but any hardwired distribution, rack integration or building supply work should be carried out by a licensed electrician. Indigi Power and Cooling provides single phase UPS installation and commissioning nationally, including rack mounting, battery cabinet connection, load transfer and configuration of the network card and shutdown software.
To protect your investment and keep the warranty valid, batteries and electronics should be inspected on a regular schedule. Our UPS maintenance service covers testing, battery health checks and firmware updates, and annual maintenance plans keep your GXT5 fleet compliant and reliable. Internal batteries are user-replaceable using the GXT5-36VBATKIT, and the GXT5-EBC36VRT2U external cabinet extends runtime when you need it.
Australian sites bring their own power quality challenges, from long feeder runs and voltage sag in regional areas to generator changeover on backed-up sites, and these are exactly the conditions online double conversion is built to ride through. All fixed electrical connection work must comply with AS/NZS 3000 wiring rules and be performed by a licensed electrician, and Indigi Power and Cooling handles that side of the deployment for you so the GXT5 is installed, labelled and commissioned correctly the first time.
Frequently asked questions
Is the Vertiv GXT5-750IRT2UXL single phase?
Yes. The GXT5-750IRT2UXL is a single phase 230V UPS with a single phase input and single phase output, which is why it belongs in the Vertiv single phase (1:1) range.
How much backup runtime does it provide?
On its internal batteries it delivers about 10.5 minutes at full 750W load and 25.7 minutes at 50% load. Adding one GXT5-EBC36VRT2U external battery cabinet extends this to roughly 46 minutes at full load and over 100 minutes at half load.
Can it be used as a rack or a tower?

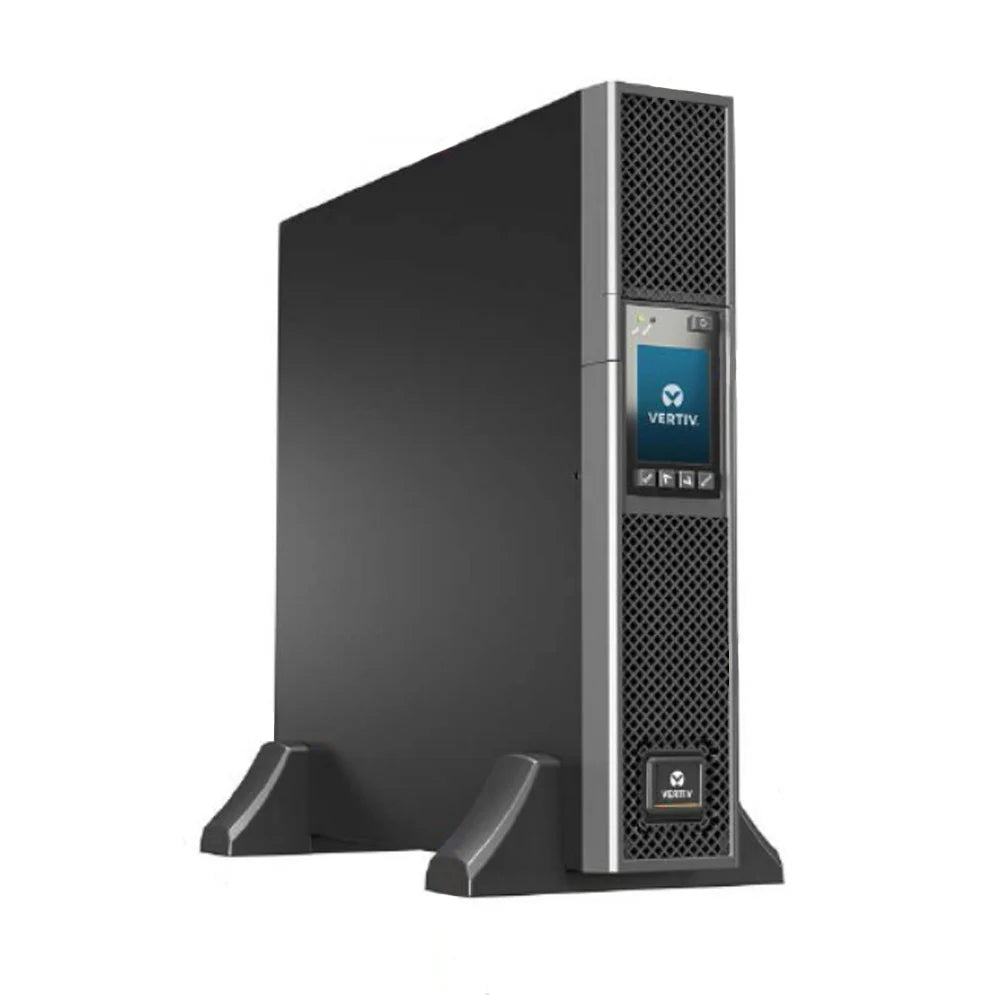

Both. It is a 2U convertible chassis that racks into a standard 19-inch cabinet or stands vertically as a tower with the supplied stabilising feet, and the color LCD rotates automatically to suit.
What efficiency does the GXT5 achieve?
Up to 94% in online double conversion mode and up to 98% in ECO mode. It is Energy Star certified, which reduces both running cost and the heat it adds to the rack.
Does it include a network management card?
Yes. A Vertiv Liebert IntelliSlot RDU120 network card is supplied in the box for SNMP, web and Vertiv Power Insight remote monitoring, along with USB, RS232 and dry-contact connectivity.
What warranty comes with the GXT5-750IRT2UXL?
It carries a 3-year Vertiv limited warranty for the Australia and New Zealand market. Regular maintenance and correct installation keep the warranty valid.
Can Indigi install and maintain it anywhere in Australia?
Yes. We supply, install, commission and maintain the GXT5 range nationwide from our Brisbane, Sydney and Melbourne hubs, covering Perth, Adelaide, Darwin and regional sites on scheduled visits.
